Tape feeder module 3x8mm SL
Page 5 / 9 19.11.2021
Tape feeder module 3x8mm SL
Page 6 / 9 19.11.2021
Pos. Item no. Description Part marking
1 00141088S01 TAPE FEEDER MODULE 3X8MM SL
SIPLACE
Spare Part
03056759-01 TAPE FEEDER 3X8MM S - SL
2 03056760S01 DRIVE ASSY, SL SPARE PART
00344044-03 BASE UNIT, COMPLETE
03056761-01 TAPE CHANNEL, TOP, COMPLETE, SL
03050600-01 TAPE CHANNEL SL FEEDER
3 03054425S03 PICK UP WINDOW 3X8MM S - SL SPARE PART
4 00344108S01 WINDOW AXIS SPARE PART
00349254S02 FITTING SCREW SPARE PART
03014273S02 TAPE SUPPORT 3X8MM SL SPARE PART
00341703S02 FLAPS ASSY SPARE PART
00344048S02 TRANSPORT WHEEL BEARING UNIT SPARE PART
03053159-02 BEARING SCREW SPARE PART
00344019-02 BEARING SUPPORT WALL SPARE PART
5 00345830S02 PROTECTION COVER, FRONT, ASSY SPARE PART
00348973-01 WORM WHEEL SEAL, RIGHT, ASSY SPARE PART
00348972-02 WORM WHEEL SEAL, MIDDLE, ASSY SPARE PART
00348971-02 WORM WHEEL SEAL, LEFT, ASSY SPARE PART
00348976-01 WORM SEAL, RIGHT, ASSY SPARE PART
00348975-02 WORM SEAL, MIDDLE, ASSY SPARE PART
00348974-02 WORM SEAL LEFT, MIDDLE SPARE PART
00348621-01 JOURNAL SPARE PART
00348732-01 HOLDDOWN SCREW SPARE PART
00349260-02 SHEET METAL COVER FOR DRIVE,
RIGHT
SPARE PART
00349259-02 SHEET METAL COVER FOR DRIVE SPARE PART
00349526-01 PT COUNTERSUNK SCREW 3X8 STANDARD PARTS
00349254S02 FITTING SCREW SPARE PART
00366767-01 SEALING F. LIFTING MAGNET
00341488-01 SOCKET, PRE-ASSEMBLED
00341931S01 SIDE PANEL_RIGHT SPARE PART
00341932S01 SIDE PANEL, LEFT SPARE PART

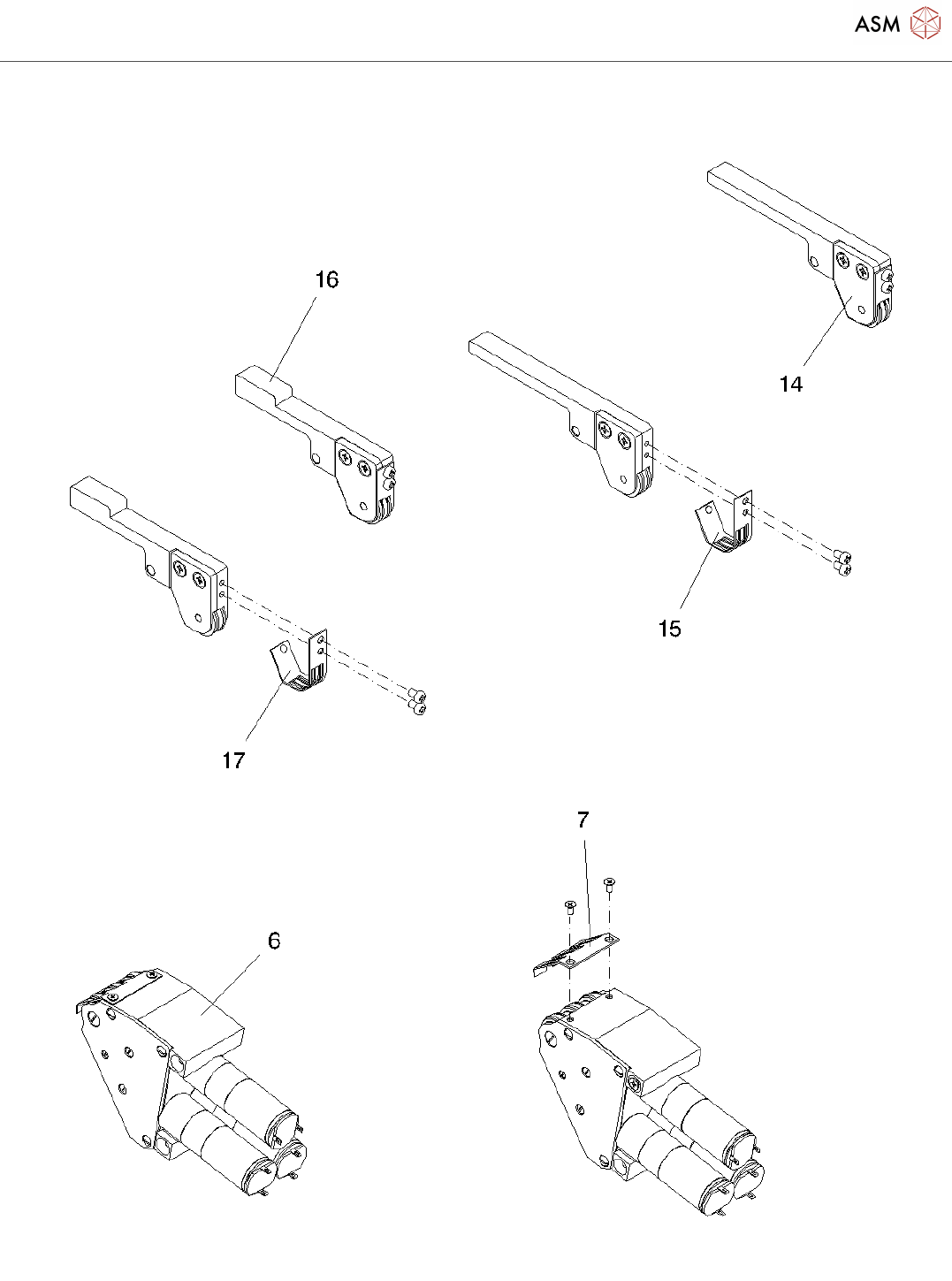

6 00343831S03 COVER STRIP STUFFING GEAR SPARE PART
00343846-01 FOIL DISPOSAL MOTOR MOUNT,
Tape feeder module 3x8mm SL
Page 7 / 9 19.11.2021
Pos. Item no. Description Part marking
COMPLETE
00354737S02 STUFFING WHEEL WITH
FREEWHEEL, RIGHT
SPARE PART
00354738S02 STUFFING WHEEL WITH
FREEWHEEL, MIDDLE
SPARE PART
00343848-02 COVER STRIP STUFFING SIDE,
RIGHT
SPARE PART
00343833S02 COVER STRIP STUFFING SHAFT 3 SPARE PART
00343834S02 COVER STRIP STUFFING SHAFT 4 SPARE PART
00343835S02 COVER STRIP STUFFING SHAFT 6 SPARE PART
00343849-01 COVER STRIP STUFFING SPUR GEAR SPARE PART
00343850-01 COVER STRIP STUFFING GEAR
SPACER
SPARE PART
00343854-01 SPUR BEVEL GEAR SPACER SPARE PART
00343852-01 SPUR BEVEL GEAR SPACER, MIDDLE SPARE PART
00343853-01 SPUR BEVEL GEAR SPACER, SIDE SPARE PART
00343855S01 SPUR BEVEL GEAR ASSY 1 SPARE PART
00345040S01 SPUR BEVEL GEAR ASSY 2 SPARE PART
00345041S01 SPUR BEVEL GEAR ASSY 3 SPARE PART
00345042-01 SPUR BEVEL GEAR DISTANCE, SIDE
2
SPARE PART
7 00345150S01 STRIPPING DEVICE PLATE, BOTTOM SPARE PART
00349255-01 AXLE SCREW WITH LEFT-HAND
THREAD
STANDARD PARTS
00354739S02 STUFFING WHEEL WITH
FREEWHEEL, LEFT
SPARE PART
00344031-01 TAPE CONTAINER, COMPLETE
00341854-02 TAPE CONTAINER, BOTTOM
00341903-03 TAPE CONTAINER, TOP
00342847-01 TAPE CONTAINER – COVER, RIGHT
SIDE
00342848-01 TAPE CONTAINER – COVER, LEFT
SIDE
00341463-02 PARTITION PANEL, COMPLETE
00341832-01 SHAFT (TAPE CONTAINER)
8 00344944S01 FLAP SPARE PART
9 00345183S02 CONTROL PANEL 3X8MMS SPARE PART
00348942S01 CABLE: CONTROL PANEL-DISTRIB. SPARE PART
