LBO 50 mm SIPLACE D4 2 Assembly instructions SOKO Stopper LBO for minimum board size 50 mm SIPLACE D4
11/2007 Edition
41
: Fix the cable from the sensor "stopper position" with a clamp at the side cover of the stopper
unit and guide it to the cable duct.
Guide the pneumatic tubes in the middle of the stopper unit and link it with the sensor cables
and guide it together in the cable duct.
2
2.1.3 Final operations
: Assemble the cover of the conversion board.
: Assemble the cover of the cable ducts in placement area 2.
: Assemble the lifting table in placement area 2.
: Mount the cover of the output conveyor..
2.1.4 Adjustment of the supersonic sensor (Baumer)
: Separate the supersonic sensor from the power supply.
: Keep the "SET" button pushed for 3 seconds. The LED at the sensor starts to blink.
: Place the PCB in the output conveyor and push the "SET" button again.
The clearance between sensor and PCB is teached.
2
PCBs with warpage have to be teached separately! 2

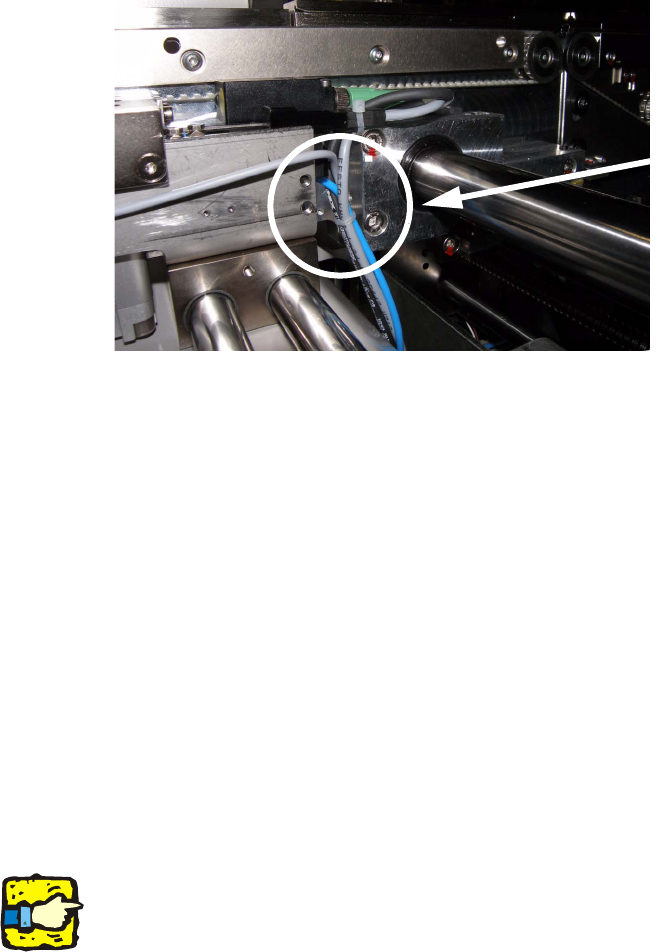

Bundling pneumatic
hoses and signal cables
2 Assembly instructions SOKO Stopper LBO for minimum board size 50 mm SIPLACE D4 LBO 50 mm SIPLACE D4
11/2007 Edition
42
2

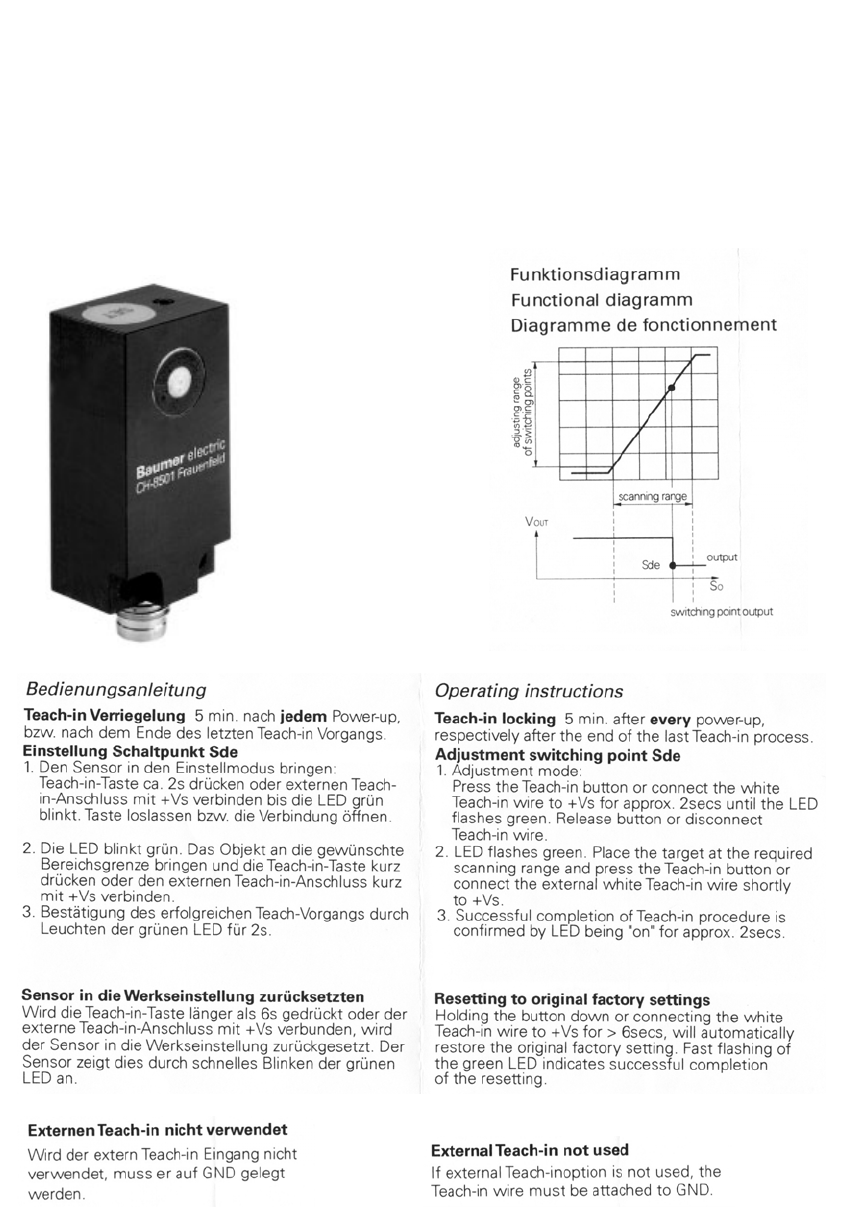

Fig. 2.14 - 8 Data sheet sensor
Hersteller/Manufacturer: Baumer Electric AG, CH-8501 Frauenfeld
Teilebezeichnung/Part name: Ultraschall-Näherungsschalter, Quader
Ultrasonic proximity switch, rectangular
Bestellnummer/Ordering code: UNDK 20P6914/S35A
Technische Daten/ Specifications:
LBO 50 mm SIPLACE D4 2 Assembly instructions SOKO Stopper LBO for minimum board size 50 mm SIPLACE D4
11/2007 Edition
43
2

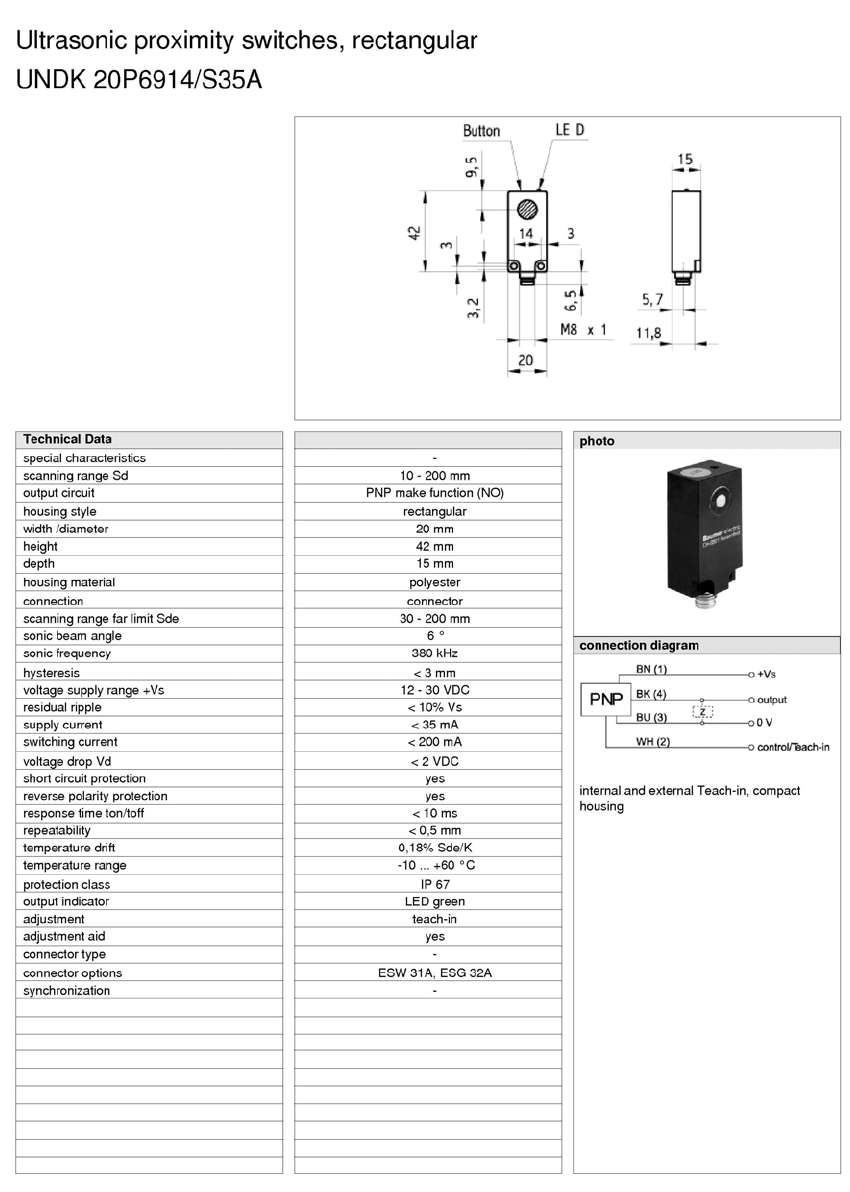

Fig. 2.14 - 9 Data sheet sensor
