2 Assembly instructions SOKO St opper LBO for minimum board size 50 mm SIPLACE D4 LBO 50 mm SIPLACE D4 11/2007 Edition 30 2.2 Safety instructions W ARNING The safety instructio ns from the “Operational sa fety” chapter o…
LBO 50 mm SIPLACE D4 2 Assembly instructions SOKO Stopper LBO for minimum board size 50 mm SIPLACE D4
11/2007 Edition
29
2

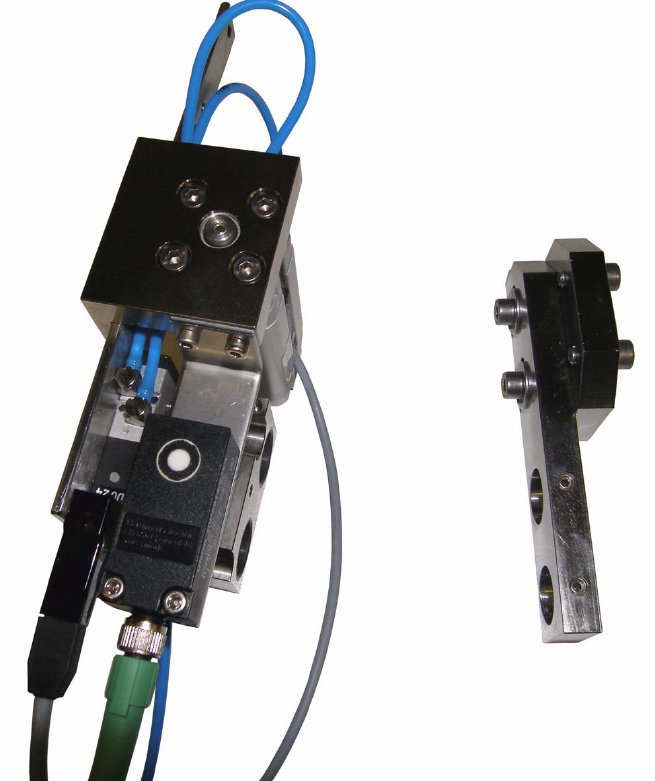

Fig. 2.11 - 2 Stopper unit with mounting on the left cage
2
2.1.2 Tools
– Set of Allen keys
– Wire cutter
2 Assembly instructions SOKO Stopper LBO for minimum board size 50 mm SIPLACE D4 LBO 50 mm SIPLACE D4
11/2007 Edition
30
2.2 Safety instructions
WARNING
The safety instructions from the “Operational safety” chapter of the user manual and servicing in-
structions take precedence over these instructions. 2
The SIPLACE placement machines are supplied with main power voltage.
Consequently parts of these systems carry dangerous voltages! This voltage is present at certain
modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death or severe injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correctly, then switch the machine
OFF at the main power switch and disconnect from the main power supply. In addition, the com-
pressed air supply must be switched off at the compressed air unit's main valve in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the vicinity of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields"
section of the user manual and service manual.
Always follow the accident prevention regulations, DIN or other standards and special safety
rules applicable in your country.
Pay attention to the information concerning residual voltages in the Operational Safety chapter.
Follow the ESD regulations as described in the operational safety section of the operating
instructions.
During the retrofit, always secure the machine to prevent access by other people and to prevent
it being switched on again. The procedure is described in the "Lock out and tag out procedure"
section of the user manual.
Working with the SITEST program further increases the risk of accident.
The SITEST program must only be used by authorized and trained personnel.
2
2.2.1 Definitions
2
Note 2
2
2
2
Caution 2
LBO 50 mm SIPLACE D4 2 Assembly instructions SOKO Stopper LBO for minimum board size 50 mm SIPLACE D4
11/2007 Edition
31
2.2.2 Laser safety instructions
2
Laser radiation! 2
The radiation from the laser diode (infrared or IR
light) of the laser light barrier is harmful to the human
eye. 2
: So never look into the laser beam!
: Make sure that the laser beam cannot be reflected
during use.
2
2
2
2
2
2
2
The laser beam output at the barcode template window does not exceed 1.0 mW. The laser light
barrier thus conforms to protection class 2. 2
There must be no manipulation of the barrier. 2
2
2
2
