2 Assembly instructions SOKO St opper LBO for minimum board size 50 mm SIPLACE D4 LBO 50 mm SIPLACE D4 11/2007 Edition 38 2.1.2 Pneumatic tubes and wires The pneumatic tubes and wires of the stopper unit will be installe…
LBO 50 mm SIPLACE D4 2 Assembly instructions SOKO Stopper LBO for minimum board size 50 mm SIPLACE D4
11/2007 Edition
37
: Exchange the fitting at the left conveyor side part (output conveyor) to flat screw heads.
Otherwise the minimum board size of 50 mm can not be reached.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Exchange of the screws
Mount: M8 DIN 6912
2 Assembly instructions SOKO Stopper LBO for minimum board size 50 mm SIPLACE D4 LBO 50 mm SIPLACE D4
11/2007 Edition
38
2.1.2 Pneumatic tubes and wires
The pneumatic tubes and wires of the stopper unit will be installed in the cable duct. The lifting
table, the covers of the cable duct and the cover of the conversion board. 2
: Remove the lifting table.
: Remove the covers of the cable duct.
: Remove the cover of the conversion board.
2
The sensor and the stopper unit have to be connected with the cable from the conversion board.
It is not possible to connect it vice versa, because the connectors don’t fit through the cable duct.2
2
2
2
2
2
2
2
2
2
2
2
Cable
duct
Pneumatic
hoses and
sensor cables
LBO 50 mm SIPLACE D4 2 Assembly instructions SOKO Stopper LBO for minimum board size 50 mm SIPLACE D4
11/2007 Edition
39

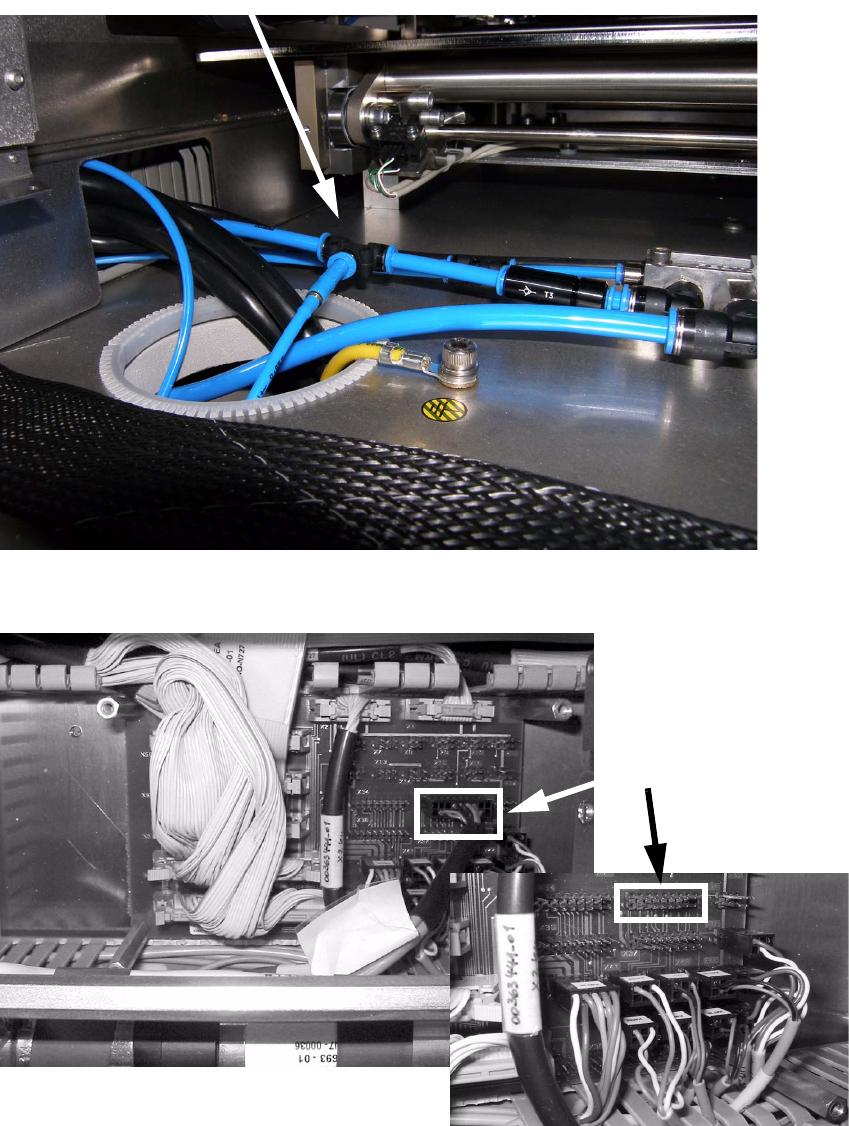

: Connect the pneumatic tube with the central air supply in the area between both placement
areas.
2
: Connect the adapter cable xxxxx to X35 at the conversion board.
2
Connection to the central air supply
X 35
