Contents 1 Base Section Base Assy. ...................................................... 1-1 2 Cover Section Cover Assy. ................................................... 2-1 3 Z-axis Section Z-axis Assy .............…

100%1 / 13
Note
Rank A : The functions of these parts gradually deteriorate with operating time.
Rank B
: The machine stops immediately if the functions of these parts are disabled.
Rank C
: The machine still operates even if the functions of these parts are disabled,
because there are many parts.
Rank E
: The functions of consumable part gradually deteriorate with operating time.
/
: Maintenance is excluded (The screws are also equal, display is omitted)
Level
: Aims to undergo basic maintenance training and have the capability to do the
job.
Level
r
: Yamaha Corp. aims to render exclusive training
Level
Í
: Yamaha Corp. Service Engineering
Rev.
: It had a change without the compatibility. Please be careful at the time of the
parts ordering.
Level column
Make use of these as reference, “
•
r
•×”, as mentioned in the Level column.
“
” It is based on taking the basic maintenance training, and being able to do
equal work.
“
” Please contact our company service when it is judged that the customer’s
condition difcult.
From the problem that arises from these, we cannot assume responsibility such as
accidents.
NOTE
RankA: 機能が徐々に失われる可能性のある部品。
RankB: 機能を失うとマシンの即停止に繋がる部品。
RankC: 機能を失っても複数あるのでマシンの即停止とはならない部品。
RankE: 機能が徐々に失われていく消耗部品。
／ :メンテナンス対象外（ネジ類も同等、但し表示省略）
Level
: 基礎メンテナンストレーニングを受けた方、又は同等の作業ができる方が対象。
Level
r
: ヤマハの専用トレーニングを受けた方が対象です。
Level
Í
: ヤマハのサービスマンが対象です。
Rev.
: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
Level 欄について
Level 欄に記載されている
“
•
r
•×”
はご 参 考としてご 活 用ください 。
“
”
は基礎メンテナンストレーニングを受けた方、又は同等の作業ができる方を
基 準 にして おりま す。
“
”
であってもお客様が難しいとご判断された時は弊社サービスまでご連絡ください。
これらに起因する不具合、事故等についての責任は負いかねます。
Contents
1 Base Section
Base Assy.......................................................
1-1
2 Cover Section
Cover Assy. ...................................................
2-1
3 Z-axis Section
Z-axis Assy ....................................................
3-1
4 Rack Section / Pallet Section
Rack Assy. / Pallet Assy. ...............................
4-1
5 Magazine Section
Magazine Assy...............................................
5-1
6 Hook Section
Hook-axis Assy. .............................................
6-1
Hook-axis sub Assy. / Hand Assy...................
6-2
7 System Parts Section
System Parts ..................................................
7-1
KHF-0505
1
1

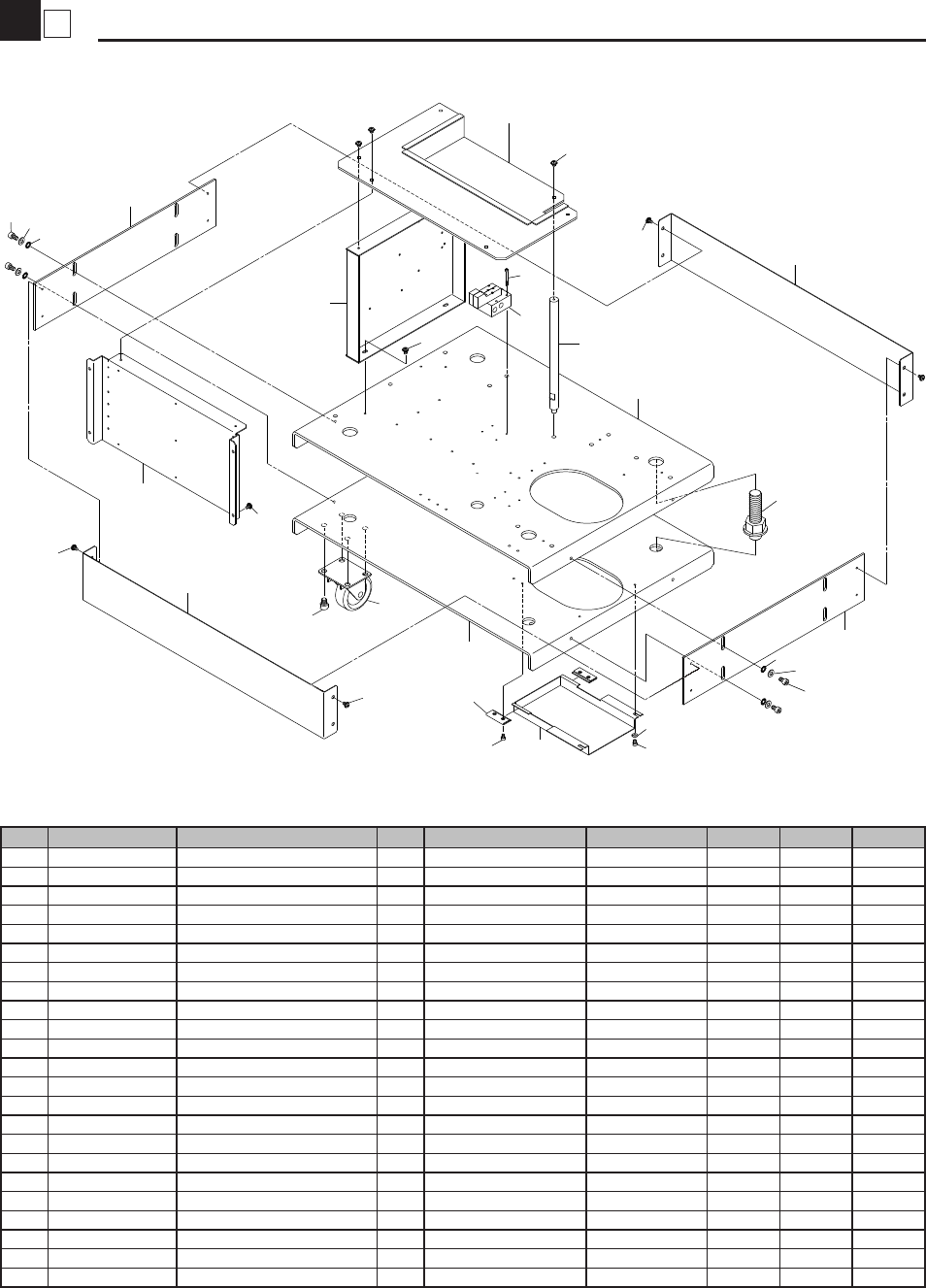

Base Assy.
Base
KHF-0505
1
2
3
4
4
5
6
7
8
9
10
11
12
13
13
13
13
13
14
15
16
17
18
14
17
18
19
20
21
22
23
9
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KHF-M1101-00X BASE PLATE 1 1 /
2 KHF-M1102-00X BASE PLATE 2 1 /
3 KHF-M1103-00X FOOT, LEVELING 4 /
4 KHF-M1104-00X PLATE, SIDE 2 /
5 KHF-M1105-00X PLATE I/O BOARD 1 /
6 KHF-M1106-00X BRACKET,RELAY 1 /
7 KW6-M1706-00X CASTER 4 /
8 KH2-M7101-00X VALVE 1 1 B
9 KHF-M1107-00X COVER,FOOT 2 /
10 KHF-M1108-00X GUIDE,COVER 2 /
11 KHF-M1109-00X MOTOR COVER 1 /
12 KHF-M1111-01X SHAFT,STAND 1 /
13 90990-12J001 SCREW BIN.HEAD W/W 14 M4X8
14 91314-06010 BOLT HEX.SOCKET HEAD 8 M6X10
15 91317-03030 BOLT HEX.SOCKET HEAD 4 M3X30
16 91317-08010 BOLT HEX.SOCKET HEAD 16 M8X10
17 92903-06200 WASHER PLAIN 8 M6
18 92990-06400 WASHER EXTL.TOOTHED 8 M6
19 92907-04200 WASHER PLAIN 3 M4
20 91317-04006 BOLT HEX.SOCKET HEAD 2 M4X6
21 91317-04008 BOLT HEX.SOCKET HEAD 5 M4X8
22 90990-12J002 SCREW BIN.HEAD W/W 6 M4X8
23 KHF-M1110-01X COVER,EL. 1 /
