1 5 Magazine Assy . Magazine KHF-1 107 1 2 19 3 4 5 5 6 7 8 9 34 36 37 38 39 40 41 43 10 16 4 17 45 16 43 16 46 47 48 49 42 30 50 44 52 53 54 55 56 57 58 79 59 51 61 62 32 33 63 63 15 60 15 64 65 66 15 67 41 77 12 74 75 …
1
4

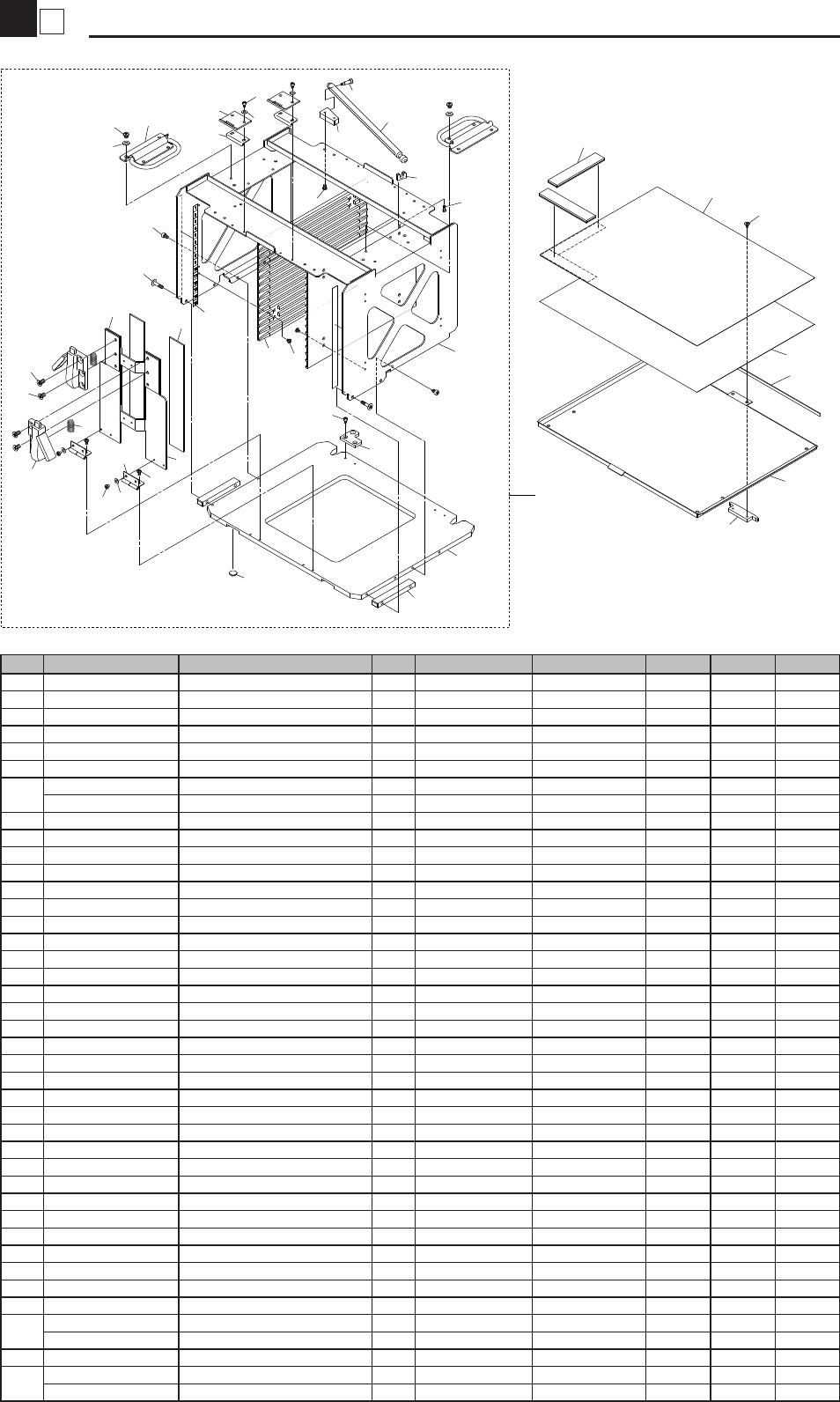

Rack Assy. / Pallet Assy.
Rack / Pallet
KHF-0505
1
2
39
3
4
5
6
7
8
9
10
20
30
30
11
12
13
14
15
16
17
18
19
21
22
23
23
24
25
25
26
26
27
28
29
31
32
33
38
34
35
36
37
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGX-M1731-00X PLATE,BOTTOM 1 /
2 KGX-M1732-01X FRAME,RACK 1 /
3 KGX-M1733-01X CARD GUIDE 2 A
4 KGX-M1734-00X STOPPER,PALLET 1 /
5 KGX-M1735-00X DOOR,RACK 1 /
6 KGX-M1736-00X HINGE ASSY 1 /
7
KGX-M1737-00X LABEL,PALLET POSI. 1 (1-15) /
KGX-M1373-10X LABEL,PALLET POSI. 1 (16-30) /
8 KGX-M1738-00X SPACER 2 /
9 KGX-M1739-00X THIN HEAD 4 /
10 KGX-M173A-L0X LATCHE 1 /
11 KGX-M173A-R0X LATCHE 1 /
12 KGX-M173B-00X BRKT.LATCHE 2 /
13 KGX-M173C-00X STOPPER BRKT. 2 /
14 KGX-M173H-00X HANDLE 2 /
15 KGX-M173J-00X SPRING 2 /
16 KGX-M173K-00X BOLT 1 /
17 KGX-M173L-00X SHAFT 1 /
18 KGX-M173M-00X SHAFT CLIP 1 /
19 KGX-M173N-00X BRACKET 1 /
20 KGX-M173P-00X DOOR,RUBBER 2 /
21 K93-M1392-00X SPACER (TM-180-303) 4 /
22 90115-2AJ008 BOLT HEX.SOCKET HEAD 2
23 91314-03005 BOLT HEX.SOCKET HEAD 6
24 91314-04006 BOLT HEX.SOCKET HEAD 4
25
98904-03004 SCREW BINDING HEAD 20
26 98904-03006 SCREW BINDING HEAD 6
27 98904-04005 SCREW,BINDING HEAD 8
28 98704-05008 SCREW,FLAT HEAD 4
29 98704-05010 SCREW FLAT HEAD 2
30 92903-03200 WASHER PLAIN 8
31 92903-04200 WASHER PLAIN 8
32 KGX-M1751-01X PALLET 1 /
33 KGX-M1752-00X SHEET 1 /
34 KGX-M1753-00X PLATE MAGNET 1 /
35 KGX-M1754-00X PLATE 1 1 A
36 KGX-M1755-00X MAGNET 2 A
37
K16-90105-00X BOLT: TP-M3X6 2 A
90990-46J005 BOLT, THIN HEAD 2 M3*L6 (2008/6/3) OK A
38 KGX-M1756-00X SEAT 1 /
39
KGX-M17B0-04X RACK ASSY 1 S.T.D /
KGX-M17B0-A1X RACK ASSY 1 I/T Option /
1
5

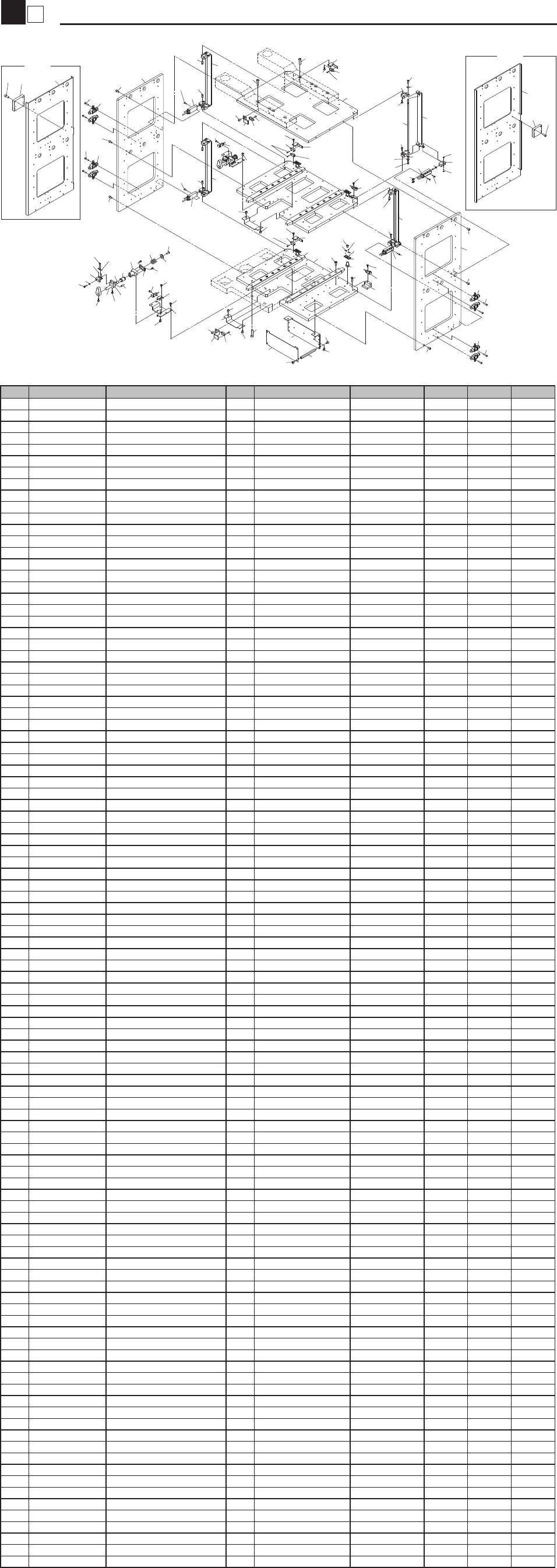

Magazine Assy.
Magazine
KHF-1107
1
2
19
3
4
5
5
6
7
8
9
34
36
37
38
39
40
41
43
10
16
4
17
45
16
43
16
46
47
48
49
42
30
50
44
52
53
54
55
56
57
58
79
59
51
61
62
32
33
63
63
15
60
15
64
65
66
15
67
41
77
12
74
75
14
21
15
17
18
18
18
19
19
21
21
22
23
24
25
26
27
27
28
29
30
31
32
33
15
18
18
78
66
18
18
46
19
19
19
1
16
16
47
1647
18
75
23
73
22
76
74
21
4
15
73
21
42
2
19
19
14
17
16
16
36
16
14
17
14
17
35
20
35
20
OLD
OLD
71
72
70
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KHF-M1782-00X PLATE SIDE 1 1 /
1-1 KHF-M1782-01X PLATE SIDE 1 1 2006/11/14 NG /
1-2 KHF-M1782-02X PLATE SIDE 1 1 2007/2/16 OK /
2 KHF-M1783-00X PLATE SIDE 2 1 /
2-1 KHF-M1783-01X PLATE SIDE 2 1 2006/11/14 NG /
2-2 KHF-M1783-02X PLATE SIDE 2 1 2007/2/16 OK /
3 KHF-M1784-00X PLATE ,TOP 1 /
3-1 KHF-M1784-01X PLATE ,TOP 1 2006/4/28 NG /
3-2 KHF-M1784-02X PLATE ,TOP 1 2007/2/16 OK /
4 KHF-M1785-00X BRACKET,SENSOR 3 /
5 KHF-M1787-01X STOOPER,LEVER 2 /
6 KHF-M1788-00X BRACKET,DUCT 1 /
7 KHF-M1789-01X COVER 1,DUCT 1 /
8 KHF-M178A-00X HEXAGONAL.POST 4 /
9 KHF-M178F-00X BRACKET,SENSOR BACK1 1 /
10 KHF-M178G-00X BRACKET,SENSOR2 BACK 1 /
11
12 K16-90101-060 BOLT:TP-M4X6 4 /
12-1 90990-46J001 BOLT, THIN HEAD 4 M4*L6 (2008/6/3) OK /
13
14 $SSU4 SPEED CONTROLLER 8 /
15 91317-03008 BOLT HEX.SOCKET HEAD 8
16 91317-03010 BOLT HEX.SOCKET HEAD 34
17 91317-03014 BOLT HEX.SOCKET HEAD 18
18
91317-04006 BOLT HEX.SOCKET HEAD 2
19 91317-04008 BOLT HEX.SOCKET HEAD 20
20 91317-04010 BOLT HEX.SOCKET HEAD 8
21 92D18-02008 BOLT HEX: M2X0.4X8 12
21-1 92D18-02010 BOLT HEX.SOCKET HEAD 12 2005/8/23 OK
22 98903-03008 SCREW BINDING HEAD 2
23 91317-05020 BOLT HEX.SOCKET HEAD 8
24 91317-05025 BOLT HEX.SOCKET HEAD 4
25 KHF-M1781-01X BASE,MAGAGINE 1 /
25-1 KHF-M1781-02X BASE,MAGAGINE 1 2005/12/7 OK /
25-2 KHF-M1781-03X BASE,MAGAGINE 1 2007/2/16 OK /
26 KHF-M1786-00X BLOCK, SENSOR 2 /
27 KGX-M1782-00X GUIDE,MAGAGINE 2 A
27-1 KHF-M178C-00X GUIDE,MAGAGINE 2 2005/2/1 OK A
28 KGX-M1783-00X PIN,LOCATE 4 /
29 KGX-M1786-01X BASE,SPRING 4 /
30 KGX-M1787-01X LEAF SPRIG 12 /
31 KGT-M922C-00X LOW HEAD CAP SCREW 2 /
31-1 90990-01J017 BOLT HEX.SOCKET HEAD 2 2007/10/29 OK /
32 KH8-M7158-00X STEEL BALL 1 (3.0MM) 4 /
32-1 90947-30JA00 BALL STEEL 4 2007/9/20 OK /
33 KG7-M7169-00X SCREW 4 M2X3 /
33-1 KM5-M7169-00X SCREW 4 M2X2 2005/8/23 OK /
34 91317-04012 BOLT HEX.SOCKET HEAD 30 /
35 KHF-M178D-00X BRACKET,CYLINDER 4 Delete
/
36 KHF-M178E-00X BLOCK 1,SHAFT 8 /
37 KGX-M178A-00X CYLINDER 1 B
37-1 KGX-M178A-B0X CYLINDER ASSY LAT1L 1 2005/5/9 OK B
38 KGX-M178H-00X SHAFT 2,SHUTTER 4 /
39 KGX-M178M-00X Y LINK 4 /
40 KGX-M178N-00X SHAFT,LINK 4 /
40-1 KGX-M178N-01X SHAFT,LINK 4 with ange 2012/8/21 OK /
41 KGX-M178R-00X SHUTTER L 1 /
41-1 KGX-M178R-01X SHUTTER L 1 2005/10/14 OK /
42 KGX-M178P-00X SHUTTER,R 1 /
42-1 KGX-M178P-01X SHUTTER,R 1 2005/10/14 OK /
43 90933-03J683 BEARING 8 A
44 $BF4-M3 JOINT 8 /
45 90440-01J040 CIRCLIP 4 /
46 92D18-02010 BOLT HEX.SOCKET HEAD 8 /
47 92D18-02012 BOLT HEX: M2X0.4X12 4 /
48 95304-03700 NUT HEXAGON 1 /
48-1 95302-03700 NUT HEXAGON 1 2006/1/16 OK /
49 90440-01J020 CIRCLIP 8 /
49-1 90440-01J020 CIRCLIP 4 2012/8/21 OK /
50 KGX-M1791-00X BASE,LOCK 2 /
51 KGX-M1792-00X HOLDER 1,SHAFT 2 /
52 KGX-M1793-00X SHAFT,LOCK 2 /
53 KGX-M1794-00X
HOLDER 3,SHAFT 2 /
54 KGX-M1795-01X NAIL,LOCK 2 /
55 KGX-M1796-00X BRACKET,SENSOR 2 /
56 KGX-M1797-00X SHAFT,STOPPER 2 /
57 KGX-M1798-00X WASHER 2 /
58 KGX-M1799-00X LINER BALL BUSH 2 /
59 KGX-M179B-00X BUSH 2 /
60 KGX-M179C-00X LEVER 2 /
61 KGX-M179D-00X SPG. 2 /
62 KGT-M9224-00X STOPPER,BUSHING 4 /
63 91317-03005 BOLT HEX.SOCKET HEAD 12
64 91317-04005 BOLT HEX.SOCKET HEAD 4
65 92017-04010 BOLT, BUTTON HEAD 2
66 98904-03008 SCREW BINDING HEAD 1
66-1 98902-03008 SCREW BINDING HEAD 1 2006/1/9 OK
67 92907-03600 WASHER PLAIN 4
68 KGX-M652F-10X SENSOR,PLT2 ORG 1 B
68-1 KHF-M652F-10X SENSOR,PLT2 ORG 1 2005/7/15 OK B
68-2 KHF-M652F-11X SENSOR,PLT2 ORG 1 2005/8/5 OK B
69 KHF-M652W-10X SENSOR,RACK ORG 1 B
70 KGX-M178A-D0X CYLINDER ASSY LAT2L 1 B
71 KGX-M178A-A0X CYLINDER ASSY LAT1R 1 B
72 KGX-M178A-C0X CYLINDER ASSY LAT2R 1 B
73 KHF-M652E-10X SENSOR, PLT1 ORG 1 B
74 KHF-M652F-11X SENSOR, PLT2 ORG 1 B
75 KHF-M652W-10X
SENSOR, RACK ORG 1 B
76 KGX-M652L-20X SENSOR, RACK1 SET 1 B
77 KGX-M652M-20X SENSOR, RACK2 SET 1 B
78 KGX-M652N-10X SENSOR, R CLAMP1 1 B
79 KGX-M652R-20X SENSOR, R CLAMP2 1 B
1
6
Hook-axis Assy.
Hook
KHF-090604
1
2
3
4
4
5
6
7
37
37
37
37
37
37
38
39
40
40
40
40
41
42
43
44
45
45
8
18
26
36
36
36
36
9
10
11
12
13
14
15
16
17
19
20
20
21
22
46
47
48
49
50
54
23
24
25
27
28
29
30
31
31
32
33
34
35
35
35
35
35
60
62
58
63
59
61
5
5
2
56
51
52
55
53
57
2
2
21
29
64
33
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KHF-M1811-00X BASE,HOOK 1 /
2 KHF-M1813-01X STAY,GUIDE 4 /
3 KHF-M1814-01X FRAME,GUIDE 2 /
4 KHF-M1815-01X GUIDE 1,HOOK 2 A
5 KHF-M1816-01X GUIDE 2,HOOK 3 A
6 KHF-M1817-01X GUIDE 3,HOOK 1 A
7 KHF-M1818-00X BELT,HOOK 1 B
8 KHF-M1819-00X GUIDE,CABLE HOOK AXI 1 B
9 KHF-M181A-00X BRACKET,GUIDE 1 /
10 KHF-M181B-00X SHAFT, HOOK 4 /
11 KHF-M181L-00X COVER,BASE 1 /
12 KGX-M1812-00X BRACKET,MOTOR HOOK 1 /
13 KGX-M1818-00X BASE,SENSOR 1 /
14 KGX-M181C-00X BRACKET,DUCT 1 /
15 KGX-M181D-00X BRACKET,SENSOR 1 /
16 KGX-M652V-20X SENSOR, PLT CHK 1 B
17 KGX-M181F-00X SHAFT 2,PULLEY 1 /
18 KGX-M181G-00X HOLDER,PULLEY 1 /
19 KGX-M181H-00X COLLAR 1 1 /
20 KGX-M181J-00X WASHER 1 2 /
21 KGX-M181K-00X COVER,SENSOR 2 /
22 KGX-M652J-10X SENSOR, HOOK CHK 1 B
23 KH2-M1819-00X VALVE 1 1 B
24 KB0-M223E-00X
COLLAR 2 1 /
25 KB0-M2255-01X PULLEY,5 1 24S3M0200+48S3M0150 /
26 KC0-M1751-00X PULLEY,1 :P16S3M0150 1 /
27 KV4-M1826-00X BELT MOTOR 1 B
28 KGX-M655A-03X SWITCH OPTICAL 1 B
28-1 KGX-M652U-10X SENSOR,PLT SET 1 (2006/12/19) OK B
29 KH5-M655A-02X FIBER 1 B
30 90933-01J200 BEARING 2 6200ZZ(NSK) A
31 90933-03J696 BEARING 2 F696ZZ (F696ZZ1 NSK) A
32 90K63-001534 AC SERVO MOTOR 1 B
33 91317-03006 BOLT HEX.SOCKET HEAD 4
34 91317-03008 BOLT HEX.SOCKET HEAD 4
35 91317-03010 BOLT HEX.SOCKET HEAD 29
36 91317-03025 BOLT HEX.SOCKET HEAD 8
37 91317-04006 BOLT HEX.SOCKET HEAD 17
38 91317-04010 BOLT HEX.SOCKET HEAD 1
39 91317-04030 BOLT HEX.SOCKET HEAD 2
40 91317-05008 BOLT HEX.SOCKET HEAD 30
41 91317-05012 BOLT HEX.SOCKET HEAD 4
42 91317-05025 BOLT HEX.SOCKET HEAD 1
43 91317-06012 BOLT HEX.SOCKET HEAD 4
44 92907-04200 WASHER PLAIN 1
45 92907-05600 WASHER PLAIN 6
46 92907-05200 WASHER PLAIN 16
47 92A08-03308 SCREW,SET 2
48 92A08-04003 SET SCREW M4X3 2
49 92D18-02006 BOLT HEX: M2X0.4X6 4
50 92D18-02008 BOLT HEX: M2X0.4X8 2
51 KGX-M1851-00X
BRACKET,SPG. 2 /
52 KGX-M1852-00X PLUNGER 2 FPJL4-4 A
53 KGT-M9227-01X BASE1,CLAMP 2 /
54 KGT-M9228-01X HEAD,CLAMP 2 /
55 KGT-M922F-00X SHAFT 2 2 /
56 91317-03014 BOLT HEX.SOCKET HEAD 4
57 90440-01J030 CIRCLIP 4 /
58 KGX-M1841-00X BASE PLUNGER 4 /
59 KGX-M1842-00X COVER PLUNGER 4 /
60 KGX-M1843-00X PLUNGER 4 PJL3-3 A
61 90933-02J604 BEARING 4 604ZZ A
62 95304-03700 NUT HEXAGON 4
63 98904-03008 SCREW BINDING HEAD 8
64 KGX-M652T-10X SENSOR,PLT MIDDLE 1 B
