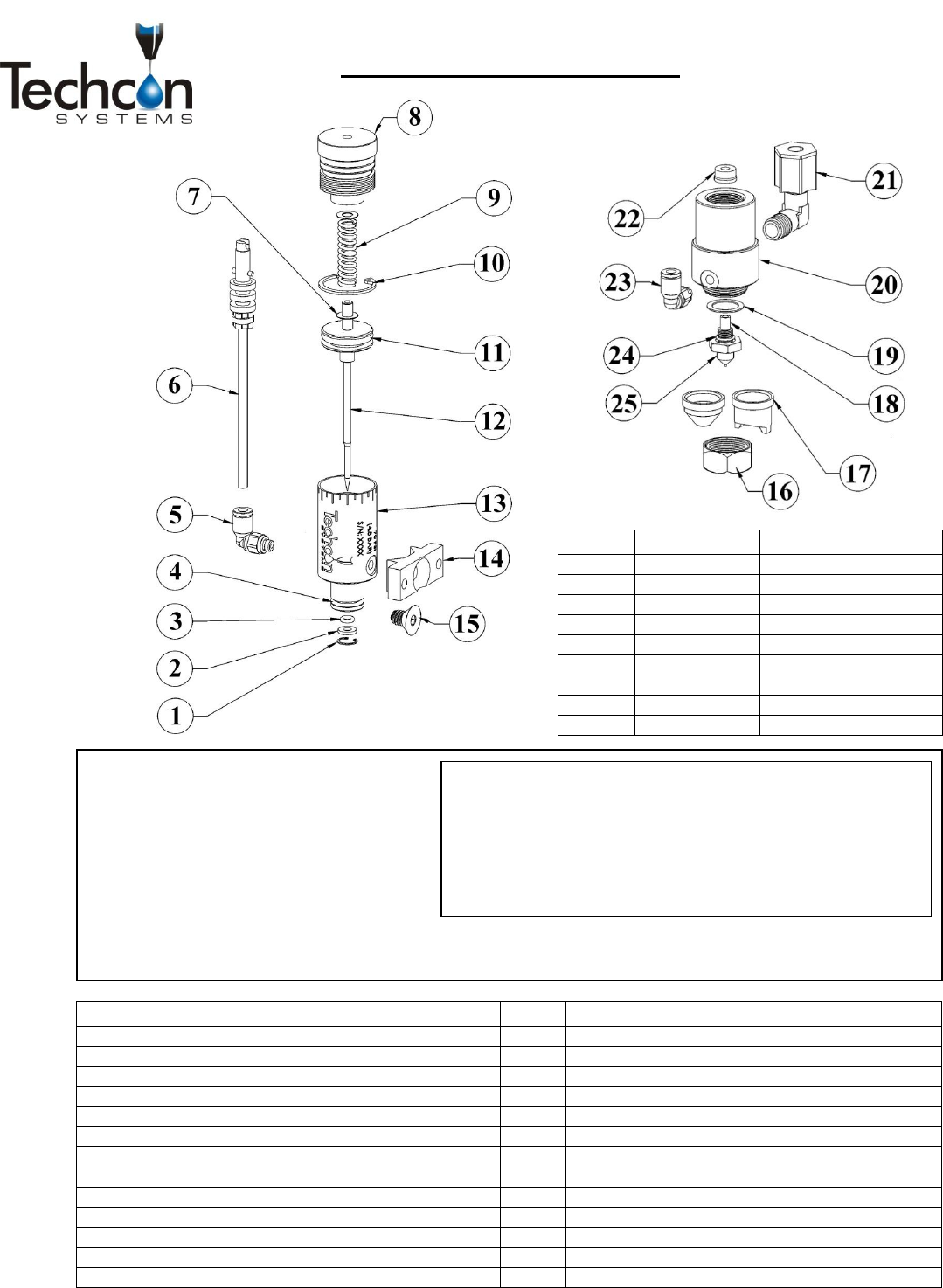

TS5540 Series Spray Valve
Item
Part Number
Description
17*
T1000590
Round Cap 0.014''
17*
T1000569
Round Cap 0.028''
17*
T1000585
Round Cap 0.046''
17*
A0100495
Fan Cap 0.014''
17*
A0100494
Fan Cap 0.028''
17*
A0100493
Fan Cap 0.046''
25*
T1000570
Nozzle 0.014''
25*
T1000589
Nozzle 0.028''
25*
T1000584
Nozzle 0.046''
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
14
918-000-048
Mounting Bracket
2
TSD1109-45
Nylon Washer
15
2800-0634
Mounting Screw
3
TSD1400-006A
O-Ring, Buna
16
T1000583
Locking Ring
4
TSD1400-013B
O-Ring, Viton®
17
SEE CHART
Air Cap
5
TSD1003-20
Air Fitting, 4mm, Elbow
18
T1000598
Nozzle Seat
6
A0100478
Air Hose/Connector Assy, 4mm
19
T1000574
Diffuser Washer
7
TSD1109-43
Mylar Washer
20
T1000579
Body
8
T1000599
End Cap
21
TSD1003-16
Compression Fitting
9
TSD1150-34
Spring
22
TSD400-85
U-Cup Seal
10
TSD1120-15
Retaining Ring, Large
23
TSD1003-20
Air Fitting, 4mm, Elbow
11
TSD1400-208A
Piston O-Ring, Buna
24
TSD1400-495B
O-Ring, Viton®
12
A0100487
Needle/Piston Assembly
25
SEE CHART
Nozzle
13
T1000600
Air cylinder
TSD1113-28
Seat Removal Tool – NOT SHOWN
O-Ring Kit = 5540-ORINGKIT
Includes 1 x 3, 4, 11 and 24
Retaining Ring Kit = 5540-SRKIT
Includes 1 x 1, 2, 2 x 7 and 10
U-Seal Insertion Tool = 5540-SIT
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent, with the exception of
TSD400-85 and TSD1400-495B, which must remain dry. No lubrication required for nozzle seat/seal either.
