193-5100
CUKYX

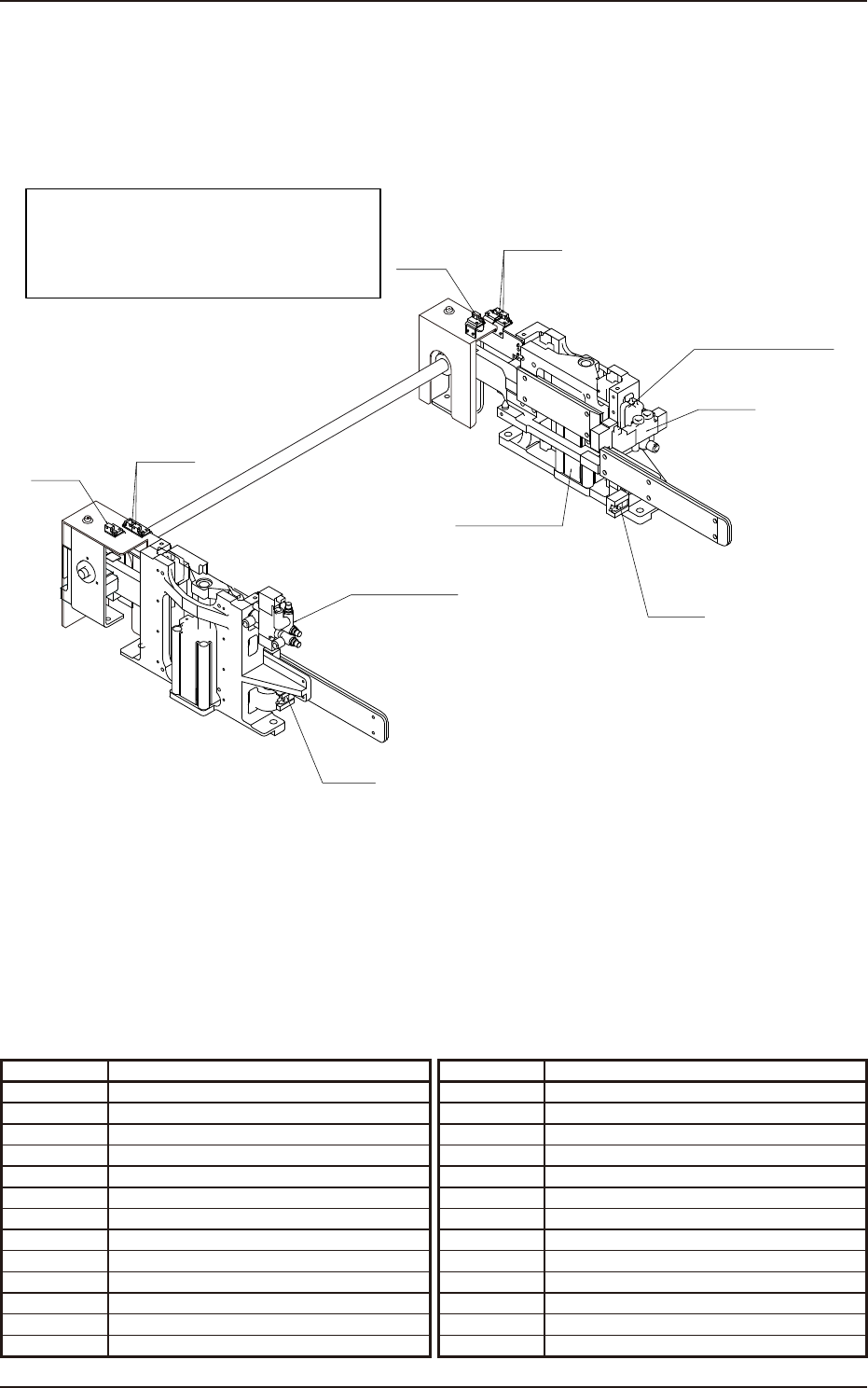

1.18 定位部的安装结构图
2-18
1.18 定位部的安装结构图
Symbol Name Symbol Name
Y0632 Feeder Base 2 Ascending Y0932 Feeder Base 1 Ascending
Y0633 Feeder Base 2 Descending Y0933 Feeder Base 1 Descending
Y0642
PCB Positioning Unit Drop Prevention Stopper 2
Y0942
PCB Positioning Unit Drop Prevention Stopper 1
B0515 Pick-up Error Detection (Front) B0514 Pick-up Error Detection (Rear)
B0521 Feeder Disengaged Latch Detection (Front) B0520 Feeder Disengaged Latch Detection (Rear)
B0515,0521Amp
Amplier
B0514,0520Amp
Amplier
B0610
Feeder Base 2 Y Direction Positioning Check 1
B0910
Feeder Base 1 Y Direction Positioning Check 1
B0611
Feeder Base 2 Y Direction Positioning Check 2
B0911
Feeder Base 1 Y Direction Positioning Check 2
B0614 Cylinder Upper Limit Detection (Front) B0914 Cylinder Upper Limit Detection (Rear)
B0615 Cylinder Lower Limit Detection (Front) B0915 Cylinder Lower Limit Detection (Rear)
B0521
B0520
B0515
B0514
Y0632,Y0932
Y0933,Y0933
B0614,B0615
B0914,B0915
B0611
B0911
B0515,0521 Amp
B0514,0520 Amp
Y0642
Y0942
B0610
B0910
B0521
B0520
B0515
B0514
Upper Stage: Front View
Lower Stage: Rear View
2-18S
193-5100
CUKYX

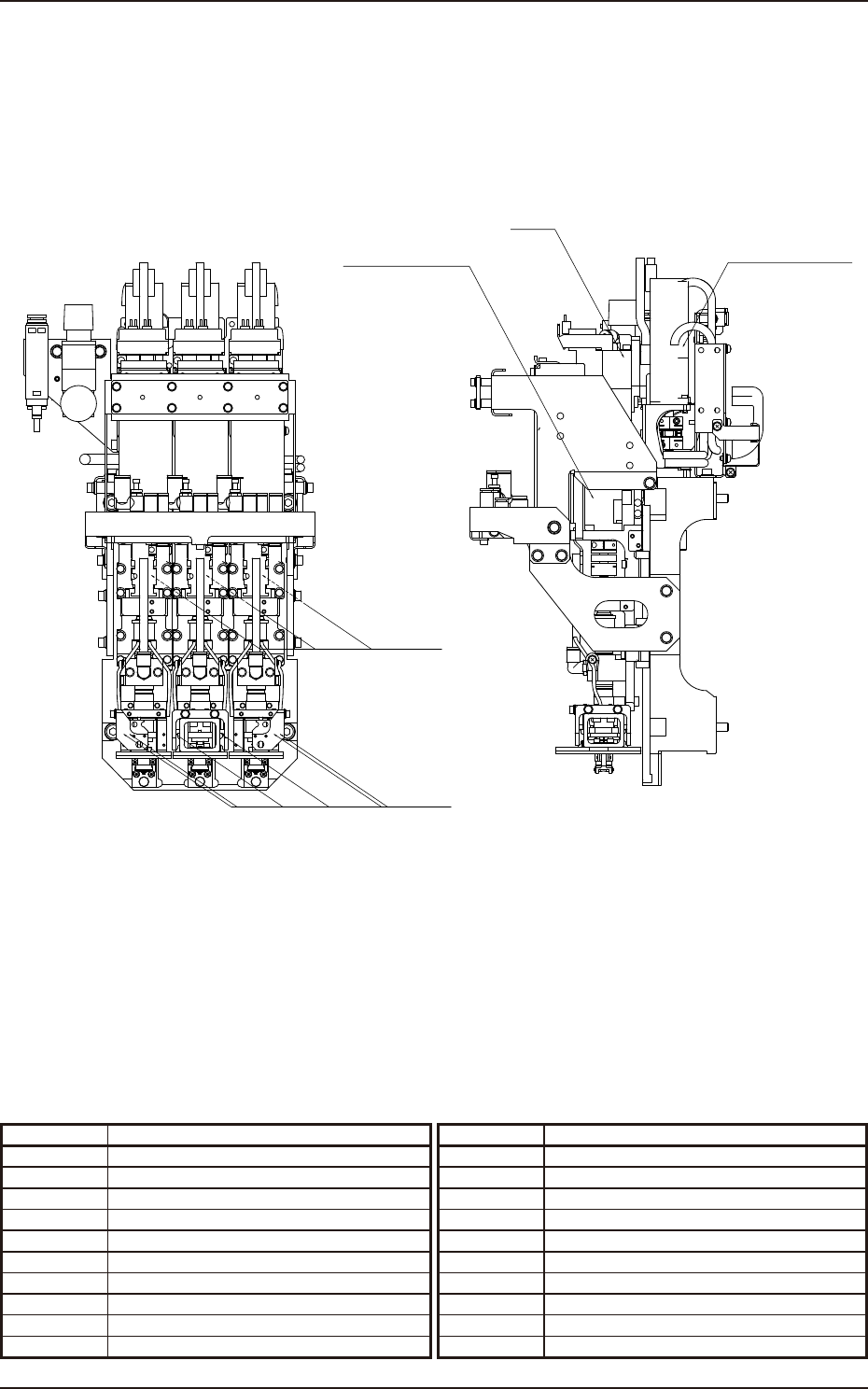

1.19 多功能安装头部的安装结构图
2-19
1.19 多功能安装头部的安装结构图
Symbol Name Symbol Name
M141 Nozzle Z-Axis Motor B143 Height Detection Sensor
M142 Nozzle L-Axis Motor B144 L-Axis - Limit
Y145 Vacuum Valve
Y146 Vacuum Break Valve
Y146
M142(1L,2L,3L)
M141(1Z,2Z,3Z)
B144
NOZZLE1
NOZZLE2
NOZZLE3
Y145
B143
2-19SA
193-5100
CUKYX

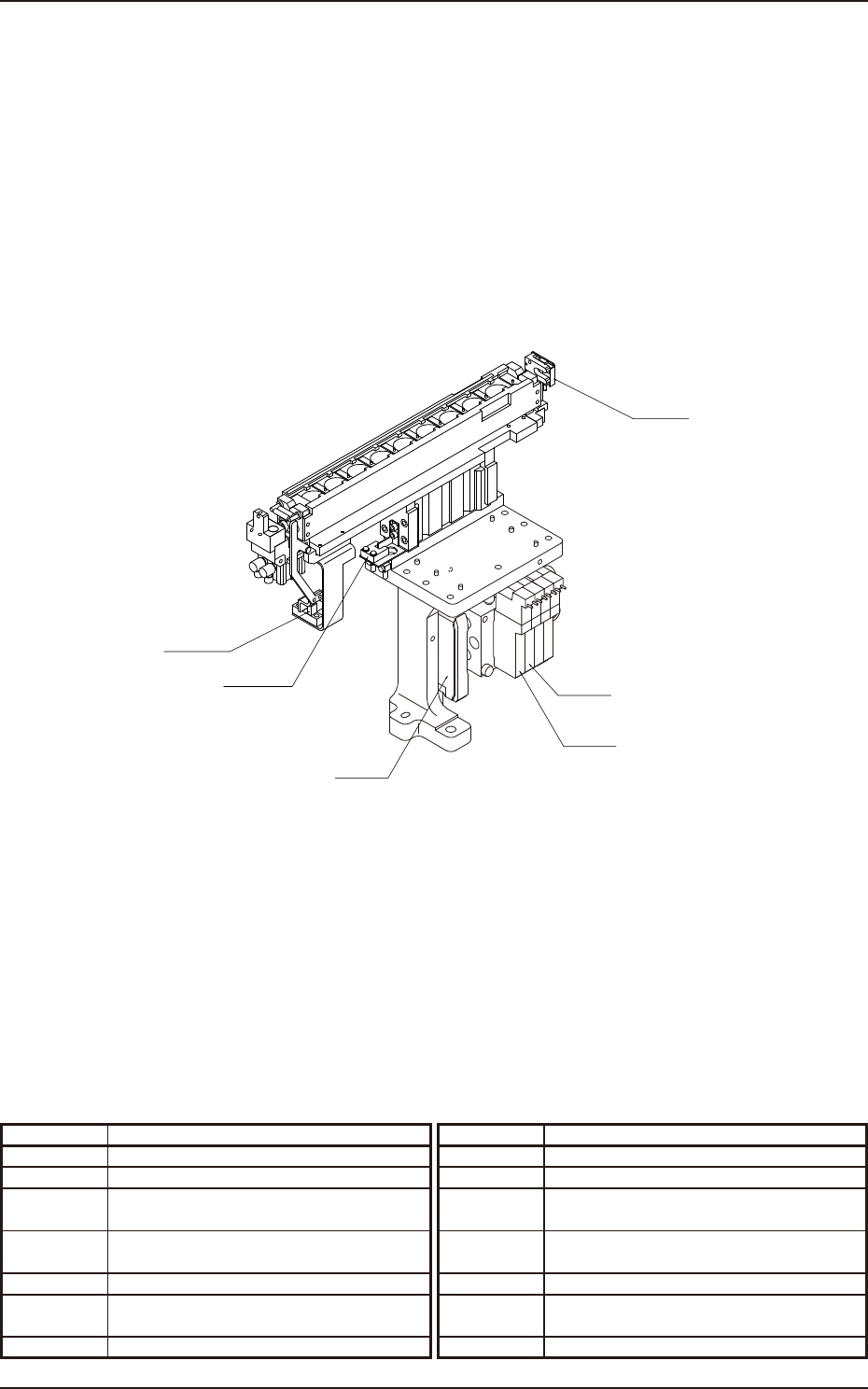

1.20 多功能吸嘴贮备器部的安装结构图
2-20
1.20 多功能吸嘴贮备器部的安装结构图
Symbol Name Symbol Name
Y_SH Nozzle Stocker 2 Shutter Open/Close 1
Y_UP1 Multi Function Nozzle Stocker 2 Ascending 1
B_DWN1 Multi Function Nozzle Stocker 2
Unit Lower Limit Detection 1
B_SH1 Multi Function Nozzle Stocker 2
Shutter Close Check 1
B_CMP1
Multi Function Nozzle Stocker 2 Clamp Check 1
B_1611
Multi Function Nozzle Stocker 2
Setup Error Detection
B_DWN1
B_SH1
Y_UP1
Y_SH
B_CMP1
B1611
2-20S
