10
Placement Heads

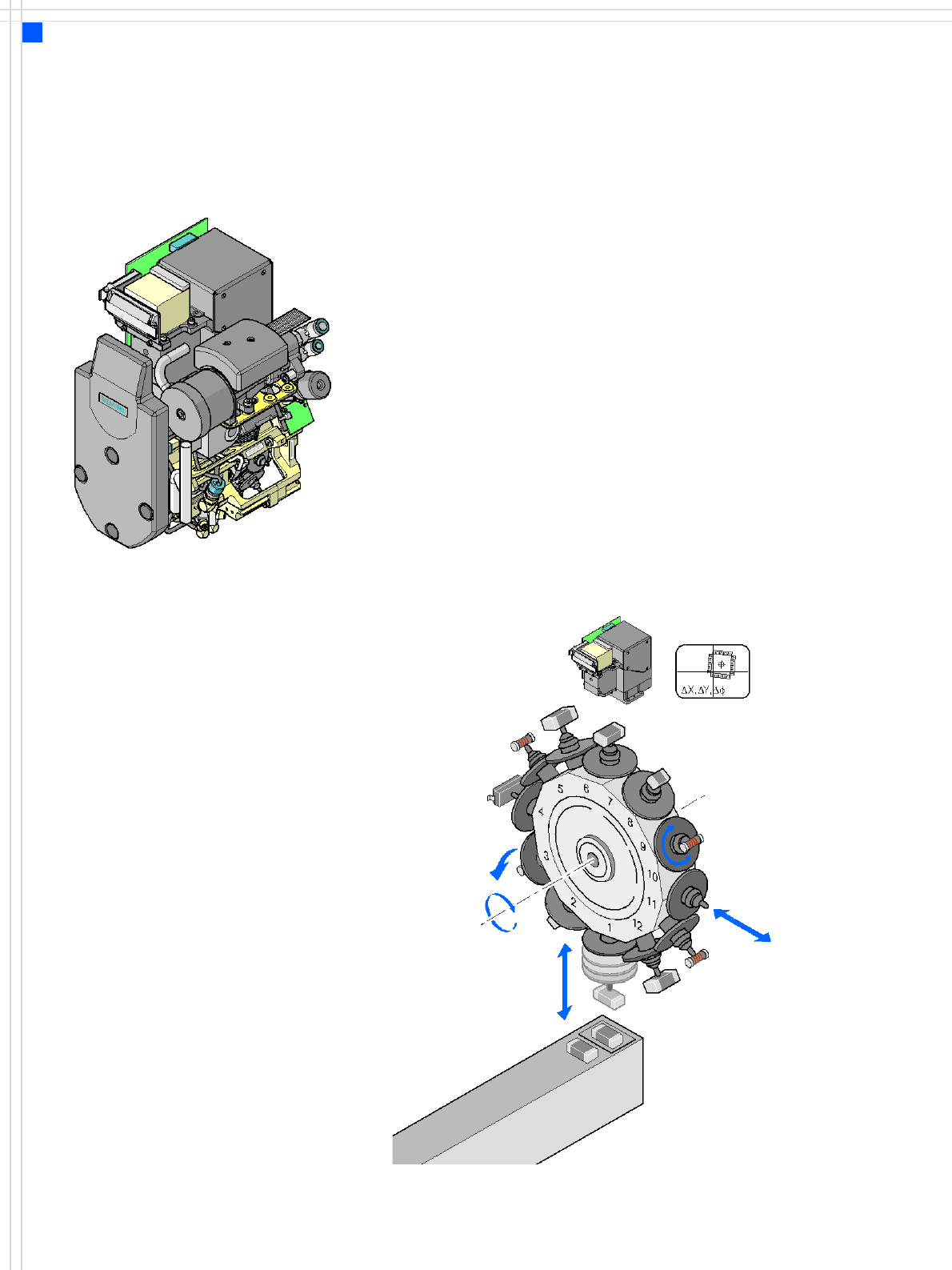

12-Nozzle Collect & Place Head for High-
Speed Placement
Description
The 12-nozzle Collect & Place
head works on the Collect &
Place principle. This means
that, within each cycle,
twelve components are
picked up by the placement
head, are optically centered
on the way to the board and
are rotated into the required
placement angle. Lastly, the
air kiss sets down the compo-
nent gently and accurately
on the board.
Checking and self-learning
functions
The reliability of the Collect &
Place head is increased by
various checking and self-
learning functions.
• For example, vacuum
checks at the nozzles indi-
cate whether the compo-
nent was picked up
correctly.
•A digital component cam-
era on the placement head
determines the precise po-
sition of each component
at the nozzle. Any devia-
tions from the required
pick-up position are cor-
rected before placement
takes place.
• The package form is also
checked and the compo-
nent is not placed if the
geometric data thus deter-
mined differs from the
programmed data.
The vertical axis for picking
up and placing the compo-
nent works in sensor stop
mode, in which differences
in height during pick-up and
any unevenness of the PCB
surface are compensated
during placement.
In addition to the vacuum
check, an optional compo-
nent sensor may be used to
check for the presence of a
component at the nozzle.
The use of a component sen-
sor is recommended, particu-
larly when placing small
components, such as 0201.
High-resolution camera op-
tion
The high-resolution compo-
nent camera allows the
12-nozzle Collect & Place
head to optically center and
place component sizes rang-
ing from 01005
1
, 0201 to
18.7 x 18.7 mm².
1) 01005 optional, from
April 2007
Component vision module
DP axis:
Rotate component
to placement angle
Pull off or
insert sleeve
Z axis
Pick up or
place component
DR axis:
Rotate star
Reject
component

11
Placement Heads
6-Nozzle Collect&Place Head for High-
Speed IC Placement
Description
The 6-nozzle Collect & Place
head also works on the Col-
lect & Place principle. The
high-resolution digital com-
ponent camera allows the
6-nozzle Collect & Place head
to optically center and place
component sizes ranging
from 0201 to 27 x 27 mm².
Checking and self-learning
functions
The checking and self-learn-
ing functions described on
page 10 for the 12-nozzle
Collect & Place head also
apply to the 6-nozzle Collect
& Place head.
Component vision module
DP axis:
Rotate component
to placement angle
Z axis
Pick up or place component
DR axis:
Rotate star
Reject component,
pull off or
insert sleeve

12
Placement Heads
Collect&Place Heads
Technical Data for the C&P Heads
12-nozzle
Collect & Place head
(standard-
component camera)
12-nozzle
Collect & Place head
(high-resolution
component camera)
6-nozzle Col-
lect&Place head
Component range
a
a) Please note that the range of components that can be placed is also affected by the pad geometry,
customer-specific standards, component packaging tolerances and component tolerances.
0402 to PLCC44, BGA,
μBGA, flip-chip, TSOP,
QFP, SO to SO32, DRAM
01005
b
0201
c
to flip-
chip, bare die, PLCC44,
BGA, μBGA, TSOP, QFP,
SO to SO32, DRAM
b) 01005 optional, from April 2007
c) with 0201 package
0201 to 27 x 27 mm²
Component specification
max. height
min. lead pitch
min. ball pitch
min. ball diameter
min. dimensions
max. dimensions
max. weight
6 mm
0.5 mm
0.45 mm
0.25 mm
0.5 x 0.5 mm²
18.7 x 18.7 mm²
2 g
6 mm
0.3 mm
0.25 mm
0.14 mm
0.3 x 0.3 mm²
18.7 x 18.7 mm²
2 g
8.5 mm
0.3 mm
0.25 mm
d
0.35 mm
e
0.14 mm
d
0.2 mm
e
0.3 x 0.3 mm²
27 x 27 mm²
5 g
d) for components < 18 x 18 mm²
e) for components ≥ 18 x 18 mm²
Programmable placement
force
2.4 N - 5.0 N 2.4 N - 5.0 N 2.4 N - 5.0 N
Nozzle types 9 xx 9 xx 8 xx, 9 xx
X/Y accuracy ± 45 μm/3 σ
± 60 μm/4 σ
± 41 μm/3 σ
± 55 μm/4 σ
± 45 μm/3 σ
± 60 μm/4 σ
Angular accuracy ± 0.5°/3 σ
± 0.7°/4 σ
± 0.5°/3 σ
± 0.7°/4 σ
± 0.2°/3 σ
± 0.3°/4 σ
