25
Component Feeding
S Tape Feeder Modules
Technical data
Packaging Model Loca-
tions
Transport
distance
Max.
CO height
Paper and
plastic
tapes
2 x 8 mm S
a
3 x 8 mm S
3 x 8 mm S
b
1 x 12/16 mm S
1
1
1
1
2/4 mm
2/4/8 mm
2/4 mm
4/24 mm
c
2.5 mm
2.5 mm
0.7 mm
14 mm
Blister
tapes
1 x 24/32 mm S
1 x 24/32 mm S DP
d
1 x 44 mm S
1 x 44 mm S DP
d
1 x 56 mm S
1 x 56 mm S DP
d
1 x 72 mm S
1 x 88 mm S
1.5
1.5
2.0
2.0
2.5
2.5
3
3.5
4/40 mm
c
4/40 mm
c
4/52 mm
c
4/52 mm
c
4/68 mm
c
4/68 mm
c
4/80 mm
c
4/96 mm
c
14 mm
24 mm
14 mm
24 mm
14 mm
24 mm
14 mm
14 mm
Tape
reels
178 - 483 mm diameter (7" - 19")
Feeder
module
cycle
S feeder modules up to 20 mm transport distance
< 150 ms
a) Fiducial for feeder module
position recognition;
b) for 0201 and 0402 only;
c) variable in 4 mm increments;
d) DP = Deep Pocket.
2 x 8 mm S
3 x 8 mm S
3 x 8 mm S 0201
12/16 mm S
24/32 mm S
44 mm S
56 mm S
72 mm S
88 mm S
A cutting device automati-
cally cuts the used tape.
SIPLACE S feeders have short
cycle times and high-preci-
sion pick-up positions. Even
multiple products and small
batch sizes are easy to handle
since the feeder modules can
be quickly changed over.
Both the tape cycle incre-
ment and the use of tape
materials are variable.
SIPLACE S feeder modules are
suitable for both paper and
plastic tapes. This represents
a significant benefit in terms
of both cost and logistics.
When activated by a signal
from the communication
interface, the feeder modules
automatically control the
entire feeder sequence, in-
cluding automatic film tear-
off.
S feeder modules with the
additional designation DP
(Deep Pocket) transport com-
ponent tapes up to 25 mm in
height.
Description
The SIPLACE S feeder mod-
ules process component
tapes from 8 to 88 mm wide.
The feeder module reels are
kept in the tape container on
the component changeover
table.
26
Component Feeding
Bulk Case and Vibratory Stick Feeder Modules
for the CO Changeover Table
Technical Data
Bulk case feeder modules
a
Packaging form Bulk case
Feeder rails
Chip 0402, CO height: 0.35 mm
Chip 0402, CO height: 0.50 mm
Chip 0603, CO height: 0.45 mm
Chip 0603, CO height: 0.80 mm
Chip 0805, CO height: 0.45 mm
Chip 0805, CO height: 0.60 mm
Chip 0805, CO height: 0.85 mm
Chip 0805, CO height: 1.25 mm
Micro-Melf: 1.05 ± 0.05 mm
Mini-Melf: 1.4 ± 0.1 mm
Location 1 location for 2 different compo-
nent types
Vibratory stick feeder,
type 3
with control circuit
Number of tracks and width 3 x 9.5 mm
2 x 15 mm
1 x > 15 mm
1 x 30 mm
Location 1 location
a) Fiducial for feeder module position recognition
Description
The SIPLACE bulk case feeder
module processes bulk cases
on two tracks. It feeds rectan-
gular and round, passive
components. The PCB maga-
zines (bulk cases) are simply
replaced for refilling - with-
out stopping the machine.
The module essentially con-
sists of the basic element plus
two feeder rails and PCB mag-
azines to suit the component
type and height. The compo-
nents are separated and fed
along the rails by compressed
air.
The principle of the fixed
component table has proven
its worth, even when bulk
cases are used: the vibrations
that can occur with other
placement machine concepts
can have a highly detrimental
effect on the component
quality due to abrasion, for
example.
Even with stick magazines,
the stationary component
supply has significant advan-
tages: the universal vibratory
stick feeder can be topped up
during placement.
Bulk case feeder module
Vibratory -
stick feeder, type 3
27
Component Feeding
Dummy Feeder Modules
Danger
To ensure that your SIPLACE
placement machine runs
safely, a feeder must be
assigned to every location on
the component changeover
table. If you do not have
enough feeder modules,
then you should use dummy
feeder modules as space
holders.

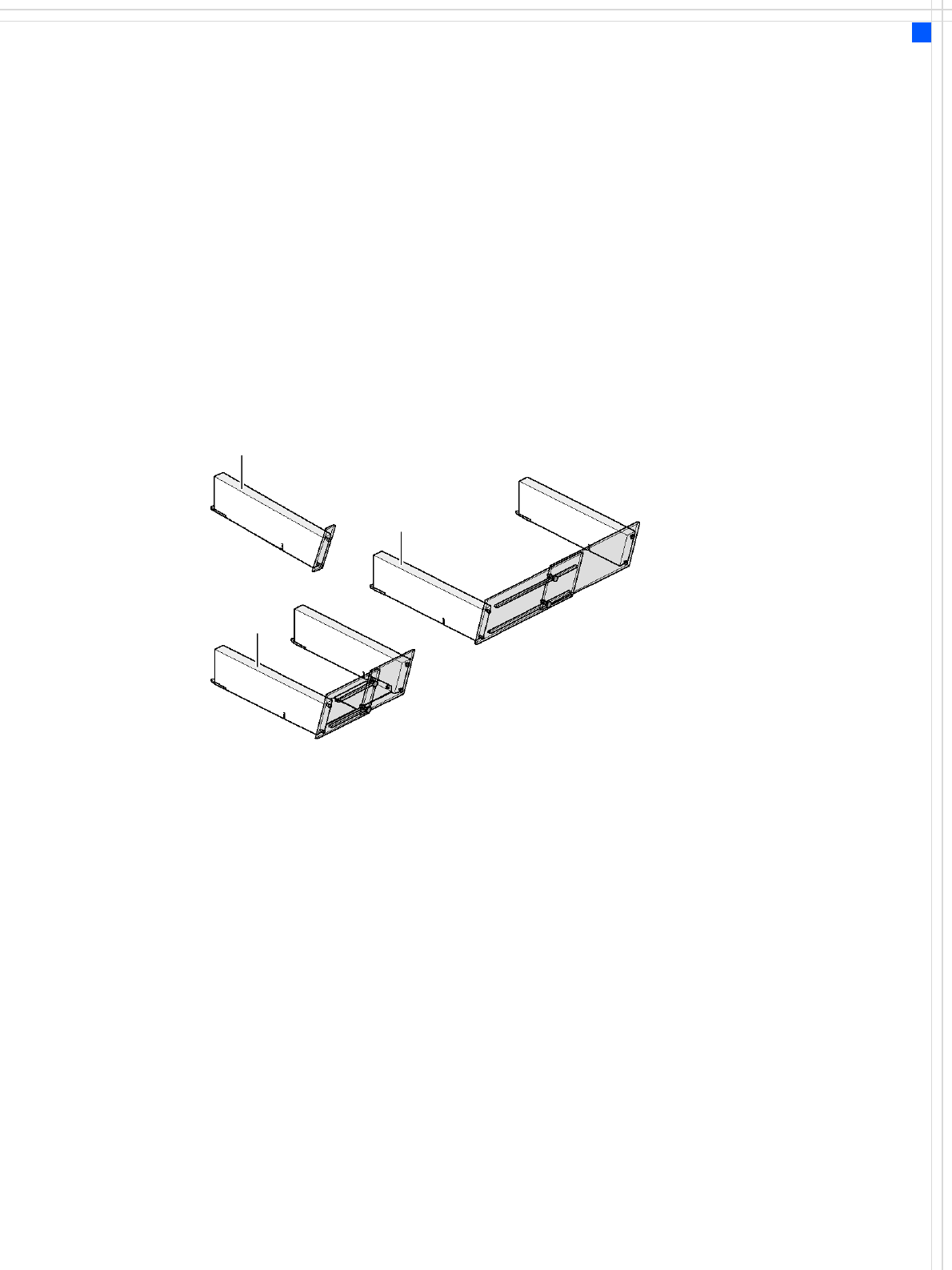

The following dummy feeder module variants are available for
component changeover tables:
SIPLACE dummy feeder module for 1 location
SIPLACE dummy feeder module for 6 to 10 locations
SIPLACE dummy feeder module for 11 to 20 locations
Dummy feeder module for 1 location
Dummy feeder module for
6 - 10 locations
Dummy feeder module for
11 - 20 locations
