2-9 AJQEPED-ID Layout of Sensors and Loads Conveyors (NA) 0606-005 Layout of Sensors and Loads Conveyors (NA) Symbol Name Symbol Name -B4201 NA T ransferred PCB Detection Sensor (Deceleration) -M42 T ransfer Servomotor (…
2-8
AJQEPED-ID

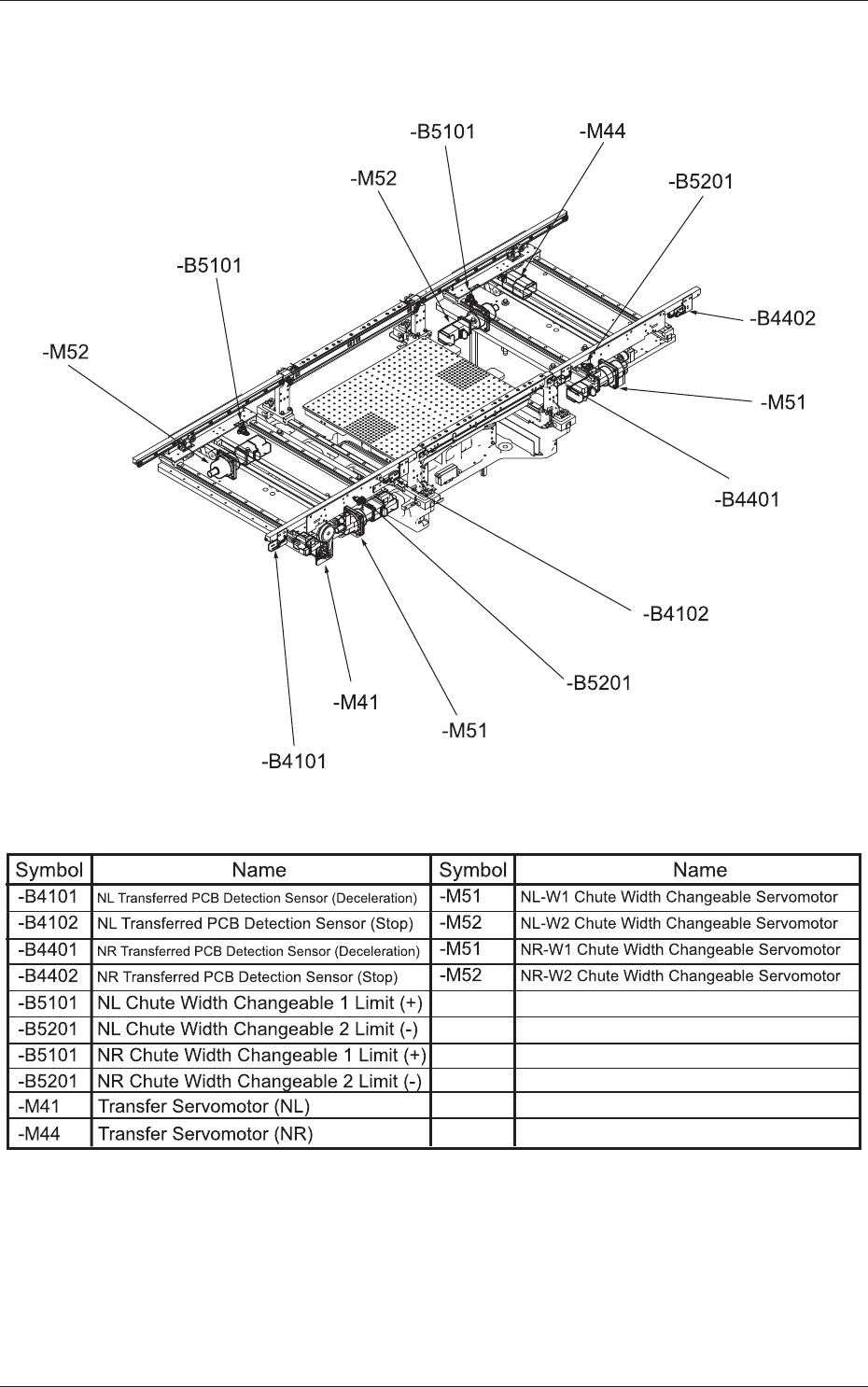

Layout of Sensors and Loads Conveyors (NL, NR)
0606-005
Layout of Sensors and Loads Conveyors (NL, NR)
2-9
AJQEPED-ID
Layout of Sensors and Loads Conveyors (NA)
0606-005
Layout of Sensors and Loads Conveyors (NA)
Symbol Name Symbol Name
-B4201 NA T
ransferred PCB Detection Sensor
(Deceleration)
-M42 Transfer Servomotor (NA)
-B4202 NA T
ransferred PCB Detection Sensor
(Stop)
-M55 NA-W1 Chute Width Changeable
Servomotor
-B5501 NA Chute Width Changeable 1 Limit (+) -M56
NA-W2 Chute Width Changeable
Servomotor
-B5601 NA Chute Width Changeable 2 Limit (-) -M53
NA Backup Servomotor
-B5301 NA Backup 1 Limit (+) -Y0834 Z Clamp Cylinder V
alve 1 DN [NA]
-B0812 NA PCB Positioning Stopper 1 Upper
Limit Detection
-Y0835 Z Clamp Cylinder V
alve 1 UP [NA]
-B0813 NA PCB Positioning Stopper 1 Lower
Limit Detection
-Y0836 Z Clamp Pressure Change 1 (NA)
-Y0842
NA PCB Positioning Stopper 1 U/D Valve
2-10
AJQEPED-ID
Layout of Sensors and Loads Feeder Bases
0606-005
Layout of Sensors and Loads Feeder Bases
Symbol Name Symbol Name
-B6950 Feeder Clamp Lower Limit
-B6951 Feeder Clamp Upper Limit
-Y6930 Feeder Clamp
