Service Work
Gantry D1/D2
26 Servicemanual (internal version) SIPLACE D Series
SITEST
X Start SITEST.
X Select
Single Functions
and perform (for all heads) a
head reference run
.
X Select
Gantry-Gantry axis functions
and perform a
reference run
for the X-axis.
X If the single reference run is successful (no errors), perform a
complete reference run
.
X Calibrate the
Machine zero point:
(for both gantries if using a D2).
X Save the machine data.
4-4: Fixing the X scale
X Place the scale in the previously marked
starting position and press it down firmly in this
position.
ATTENTION: Make sure the scale is
not bent or rubbed against any
parts.
X Move the adhesive device with the head
mount. While doing so, press the scale firmly
against the adhesive surface with your finger
(see fig.).
ATTENTION: Make sure that no
blisters or uneven areas are formed.
If this does occur, the scale must be
removed and replaced with a new
scale.
X In order to fix the last part of the scale, move
the head mount back and press the rest of the
scale down firmly with your hand.
X Make sure that the whole scale is fixed firmly
onto the gantry.
X If necessary, clean the scale and the
incremental encoder lens again.
X Fit the incremental encoder with the two
fastening screws so that there is a gap of 0.4
mm between the incremental encoder and the
scale. Use a suitable thickness gauge
(plastic). (See also: "Replacing the X-Axis
Incremental Encoder " in the service manual).
X Move the gantry out of the table area.
X Switch the machine on.
X Insert the changeover table into the machine.
Service Work
D1/D2 Gantry
Servicemanual (internal version) SIPLACE D Series
27
4.1.2.2 Replacing the Y-Axis Scale [03015980]
Equipment required
Scale - adhesive device set (HD1/D2) [03055047-xx]
– Adhesive device for scale (D1/D2)
– Double-sided adhesive strip
– Protective gloves
– Cleansing tissues
– Chisel
– Assembly guide
– Centering pin
Double-sided adhesive strip - Scotch Y-9460 [00343774-xx]
Protective sheet 12mm wide [00378511-xx]
Multiflex pad
Ethanol
SIPLACE cleansing tips [00352931-xx] (if needed)
WARNING: STRONG MAGNETIC FIELDS!
Always follow the special safety instructions when working in the vicinity of powerful magnetic
fields, caused by the permanent magnets.
ATTENTION:
Make sure that you do not scratch or bend the scale!
NOTE:
X Enlist the help of a second person for replacement of the Y scale.
4-5: Adhesive device
Legend
1. Guidance on the linear rail
2. Guide roller
3. Fixing pin
4. Scale guide
5. Press roller
Service Work
Gantry D1/D2
28 Servicemanual (internal version) SIPLACE D Series
Removal

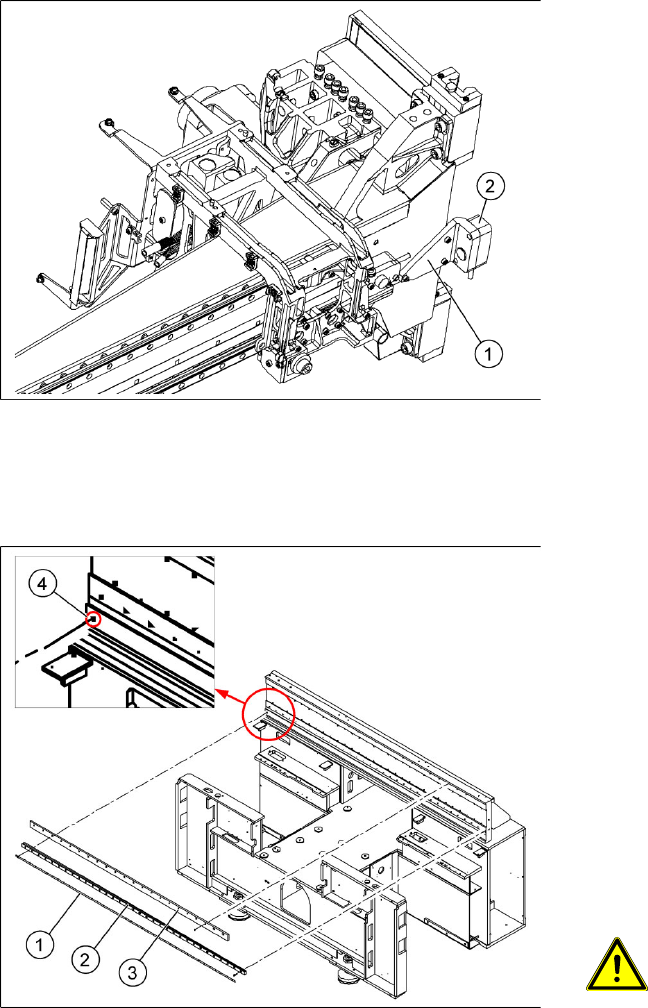

Legend
1. Incremental encoder bracket
2. Y-axis incremental encoder (read head)
X Move both changeover tables out of the
machine.
X Switch off the machine.
X Move the gantries into the position which
allows you best access.
X Loosen the three screws on the bracket (1)
and carefully lift off the incremental encoder
(2) with the bracket.
X Temporarily fix the incremental encoder to a
suitable place (e.g. with adhesive tape or a
cable tie to the back of the gantry). Make sure
that the gantry can still be moved along the Y
axis.
Legend
1. Scale
2. Linear rail
3. Flat rail
4. Drilling
X Move the gantries into the position which
allows you best access.
X Wear protective gloves.
X Use the chisel to lever (beginning from the
right side, when viewed in the direction of
transport) the scale (1) off the machine frame.
ATTENTION:
X Make sure that you do not damage
the drilling (4).
X Remove the scale (1).
X Use the chisel to carefully remove any
adhesive residues from the contact surface.
X Then polish the contact surface with the
Muliflex pad until it is smooth and clean.
X Clean the contact surface with ethanol. This
must be must be clean and free of grease.
