Service Wo rk Gantry D3 42 Servicemanual (internal ve rsion) SIPLACE D Series 4.1.3.2 Replacing th e Y Axis Scale [03005490] Tools and equipment  Scale - adhesive device set (HF/ X Series) [0 0377013-xx]  Double-sided …

Service Work

D3 Gantry

Servicemanual (internal version) SIPLACE D Series

Removing the scale

X Place the new scale on a clean work surface.

X Attach the double-sided adhesive tape to the back of the new scale. The surface to be fixed down

must be clean and free of grease.

Installation of scale

X Insert the new scale behind the head plate.

X Attach the new scale exactly to the lay-on edge on the gantry.

X Pull part of the cover strip off the adhesive strip and place the front end of the scale on the marked

position. The scale must be positioned at the lay-on edge.

X Now pull away the cover strip „piece by piece“ and firmly fix the scale (to about halfway along the

gantry).

X Move the head plate so that you can fix the rest of the scale.

X Press the scale down with a soft, clean cloth.

X Carefully pull off the cover strip.

X Wipe a little ethanol over the scale to remove any adhesive residues or dirt.

X Fit the read head. This procedure is described in Chapter "Replacing the X Axis Read Head".

See also:

4.1.3.7 Replacing the X Axis Incremental Encoder [03020588S-xx] [

J

67]

X Mark the original position (1) of the scale (2)

with a scribing iron. This ensures that the new

scale can be fixed in the exact position to the

right and left end stop.

ATTENTION: Do not damage the

gantry.

Make sure that the gantry coating is not

damaged.

X Carefully lever the scale upwards on one side

with the scriber and then gently extract the

scale.

X Remove any adhesive residues with ethanol.

The surface to be fixed down must be clean

and free of grease.

NOTE: Cover strip on scale

X A cover strip protects the front of the scale. Remove this cover strip AFTER installation.

ATTENTION: Take care when handling the incremental scale.

Do not touch the incremental tracks with bare fingers.

ATTENTION: Make sure that no blisters or uneven areas are formed.

If this does occur, the scale must be removed and replaced with a new scale.

Service Work

Gantry D3

42 Servicemanual (internal version) SIPLACE D Series

4.1.3.2 Replacing the Y Axis Scale [03005490]

Tools and equipment

 Scale - adhesive device set (HF/ X Series) [00377013-xx]

 Double-sided adhesive strip - Scotch Y-9460 [00343774-xx]

 Protective sheet 12mm wide [00378511-xx]

 Ethyl alcohol (provided with set)

 Protective gloves (provided with set)

Prior checks

Checking the adhesive device

X Check whether there is a drill hole (1) on the

machine base. If not, you will need to mark the

start and end positions (2) of the old scale (3)

with a scribing iron.

X Check the length of the installed scale. If this is

shorter than the replacement scale, you will

need to fix the new scale from position 1 or 3

onwards with adhesive.

Legend

1. Press roller

2. Adhesive device (viewed from below)

3. Fixing pin

4. Screw

X Check the setting of the press roller (1).

X Place the adhesive device (2) and the press

roller flat onto the table.

X Place a plastic sheet (0.2 mm thickness) under

the press roller. Make sure that the press roller

lies flat on the plastic sheet.

ATTENTION: Set the fixing pin

correctly

The fixing pin for the scale must be set

so that it touches the screw (4) and can

guide the scale, without the latter

slipping out.

Service Work

D3 Gantry

Servicemanual (internal version) SIPLACE D Series

Overview

Removal

Legend

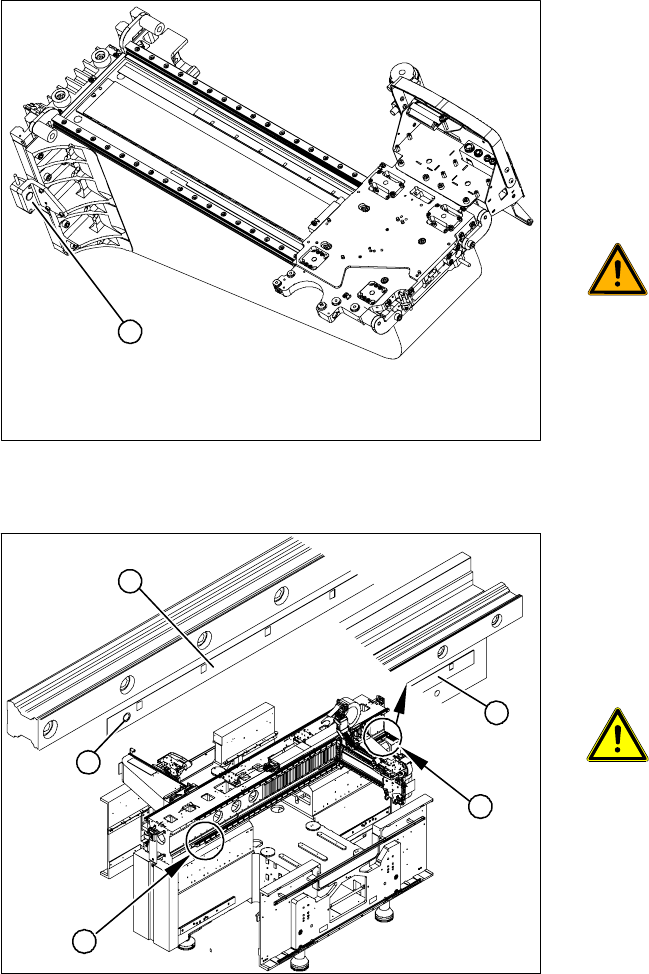

1. Y axis read head

X Loosen the three screws fastening the read

head (1) of the Y axis and carefully lift off the

read head (1).

X Temporarily fix the read head to a suitable

place (e.g. with adhesive tape to the back of

the gantry).

WARNING: STRONG MAGNETIC

FIELDS!

Always follow the special safety

instructions when working in the vicinity

of powerful magnetic fields, caused by

the permanent magnets (3).

X If necessary, remove the side covers on the

machine, for better accessibility (4) .

X Move the gantries into the position which

allows you best access.

X Use the chisel to lever the scale off the right

side (1) of the machine base.

ATTENTION: Make sure that you do

not damage the drilling (2).

X Remove the scale (3).

X Use the chisel to remove any adhesive

residues from the contact surface. Wipe the

contact surface clean with a multiflex pad.

X Clean the contact surface with ethanol. The

surface to be fixed down must be clean and

free of grease.
