Introduction Serial Number of D1/D2 Module Safety Instructions Servicemanual (internal version) SIPLACE D Series 5 1I n t r o d u c t i o n 1.1 Safety Instructions 1.1.1 Serial Number of D1/D2 Module 1.1.2 Serial Number …

100%1 / 118
Table of contents
4 Servicemanual (internal version) SIPLACE D Series
4.1.3.2 Replacing the Y Axis Scale [03005490] .............................................................................................. 42
4.1.3.3 Replacing the Y Linear Motor Secondary Part (Magnets)................................................................... 45
4.1.3.4 Replacing the Trailing Cable (IGUS) for D3/X4I/X Series from B-079 [03021065-xx] ........................ 48
4.1.3.5 Replacing Gantries.............................................................................................................................. 61
4.1.3.6 Replacing the Y Linear Motor - Primary Part ...................................................................................... 66
4.1.3.7 Replacing the X Axis Incremental Encoder [03020588S-xx]............................................................... 67
4.1.3.8 Replacing the X Drive (Primary) [03039726-xx].................................................................................. 69
4.1.4 D4.......................................................................................................................................................... 74
4.1.4.1 Replacing the X Axis Scale [00329316-01]......................................................................................... 74
4.1.4.2 Replacing the Y-Axis Scale (D4)......................................................................................................... 76
4.1.4.3 Replacing the Y Linear Motor - Secondary Part.................................................................................. 80
4.1.4.4 Replacing the Y Linear Motor - Primary Part [00333148-02] .............................................................. 82
4.1.4.5 Replacing the X Motor Unit [00333167-03] ......................................................................................... 86
4.2 Placement Heads ................................................................................................................................ 90
4.2.1 Replacing the Raceway (Circular Arc Guide)........................................................................................ 90
4.2.2 Replacing the Twin Head Hoses........................................................................................................... 92
4.2.3 White Balance Process for SIPLACE Digital Vision Camera ................................................................ 99
4.2.3.1 General Explanations.......................................................................................................................... 99
4.2.3.2 Cameras and Requirements ............................................................................................................... 99
4.2.3.3 Preparing for Calibration ................................................................................................................... 100
4.2.3.4 The Illumination Calibration Process................................................................................................. 101
4.2.3.5 Continuation ...................................................................................................................................... 102
4.2.3.6 Error States, Messages and Assessments ....................................................................................... 103
4.2.3.7 Parameter Entries ............................................................................................................................. 104
5 Measuring Equipment and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
5.1 SIPLACE Axis Tester (SAT) [03002801-01] ..................................................................................... 107
5.1.1 Scope of Delivery ................................................................................................................................ 109
5.2 SIPLACE Diagnosis Adapter A364 [03051220-01].......................................................................... 110
5.3 Axis Tester (Old Version) and Adapter Board................................................................................ 111
5.4 Track Signal Tester [00343785-01] .................................................................................................. 112
5.5 Track Signal Tester [00322510-01] .................................................................................................. 112
5.6 Belt Tension Device [00326015-01] ................................................................................................. 113
5.7 SIPLACE Compressed Air Tester [00311487-01] ........................................................................... 113
5.8 Location Tester ................................................................................................................................. 114
5.9 Z End Stopper Star Gauge for C&P6/12 [03019865-01] ................................................................. 114
5.10 Adjustment Aid for C&P DLM [00327005-01].................................................................................. 115
5.11 Calibration Tool [03010565-01] ........................................................................................................ 116
5.12 Calibration Nozzle for Twin Head [03008862-xx]............................................................................ 116
Introduction
Serial Number of D1/D2 Module Safety Instructions
Servicemanual (internal version) SIPLACE D Series
5
1Introduction
1.1 Safety Instructions
1.1.1 Serial Number of D1/D2 Module
1.1.2 Serial Number of D3 Module
DANGER: Nonobservance of these safety instructions may cause injury to personnel and
damage to the machine!
X Please observe the safety instructions in the operating manual of the according machine for
all service work!
The serial number of your placement machine can
be found on the typeplate (1).
The serial number of your placement machine can
be found on the typeplate (1).
Introduction
Safety Instructions Serial Number of D4 Module
6 Servicemanual (internal version) SIPLACE D Series
1.1.3 Serial Number of D4 Module
1.1.4 Environmentally-Friendly Disposal of Materials and Components
SIPLACE products are manufactured using only materials and parts that can be easily separated and
disposed of in an environmentally-friendly way. Hazardous materials are not necessary for the
installation, dismantling or operation of the machine.
1.1.5 Use of Original SIPLACE Accessories and Spare Parts
Only use Siemens AG original spare parts and authorized accessories. The use of other parts will affect
safety and will invalidate the liability for any consequential damage.

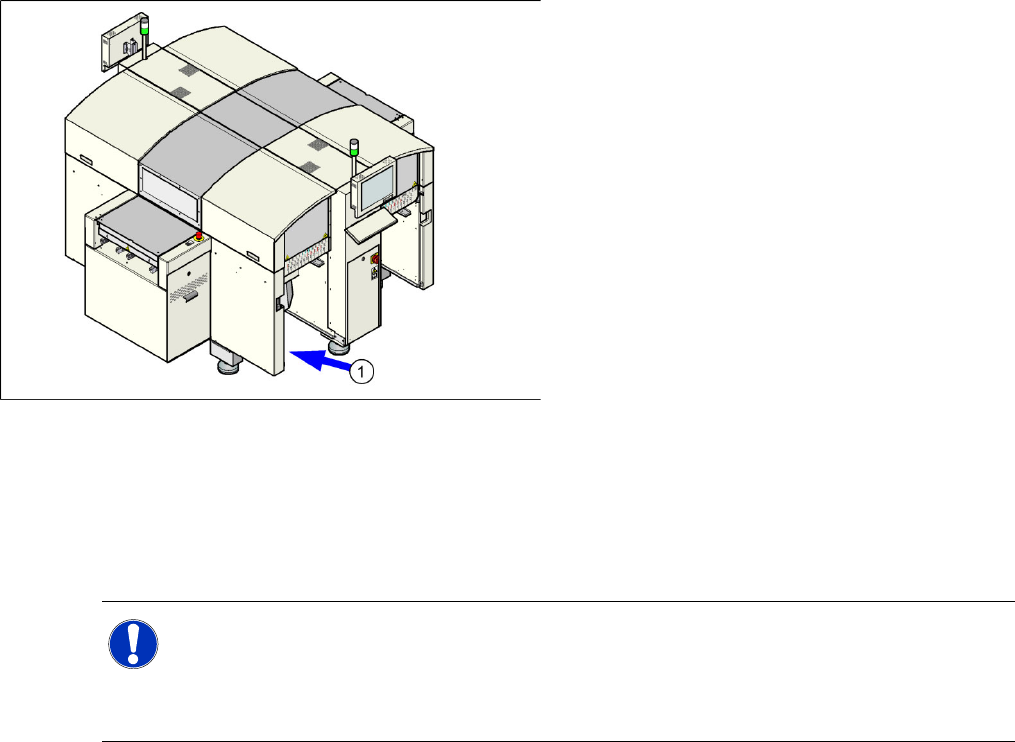

The serial number of your placement machine can
be found on the typeplate (1).
NOTE:
The company operating the system has sole responsibility for the proper, environmentally-
friendly disposal of machines, working materials, consumables and wear parts.
X Please observe your national statutory provisions for waste disposal and environmental
protection.
