Service Work
D3 Gantry
Servicemanual (internal version) SIPLACE D Series
53

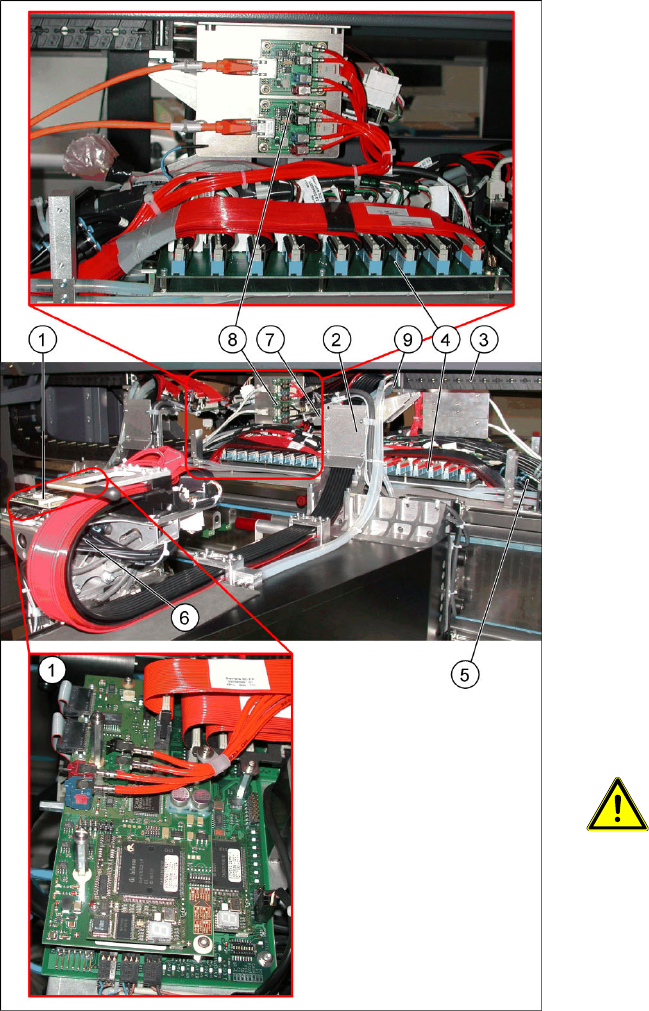

Overview
Version 1 from B-079
Legend
1. Head board with digital Vision board assembly
[03017836-xx]
2. Trailing cable console
3. Power track chain
4. Trailing unit interface gantry
5. Pneumatic hoses to the pneumatic distributor
(in the machine base)
6. Gantry distributor
7. Gantry interface
8. Hotlink filter [03010670-xx]
9. Connection piece for cooling tubes to Y motor
X The flat ribbon cable and the camera cable are
run from the head board (1) via the trailing
cable console (2) and the power track chain (3)
to the gantry interface (7) and the trailing cable
interface gantry (4). The camera cable ends at
the hotlink board (8).
X The pneumatic hoses are fed from the
pneumatic distributor (6), via the trailing cable
console (2) and the power track chain (3) to
the gantry distributor in the machine base.
X Disconnect the camera cable from the hotlink
board (8).
X Remove cable ties where necessary.
ATTENTION:
Note the order in which the terminal
connections are arranged.
X Label the press-fit connections to the
flat ribbon cable and the camera
cable, for easier reconnection later.
X Disconnect the Y motor cooling tubes at the
connection pieces (9).
Service Work
Gantry D3
54 Servicemanual (internal version) SIPLACE D Series

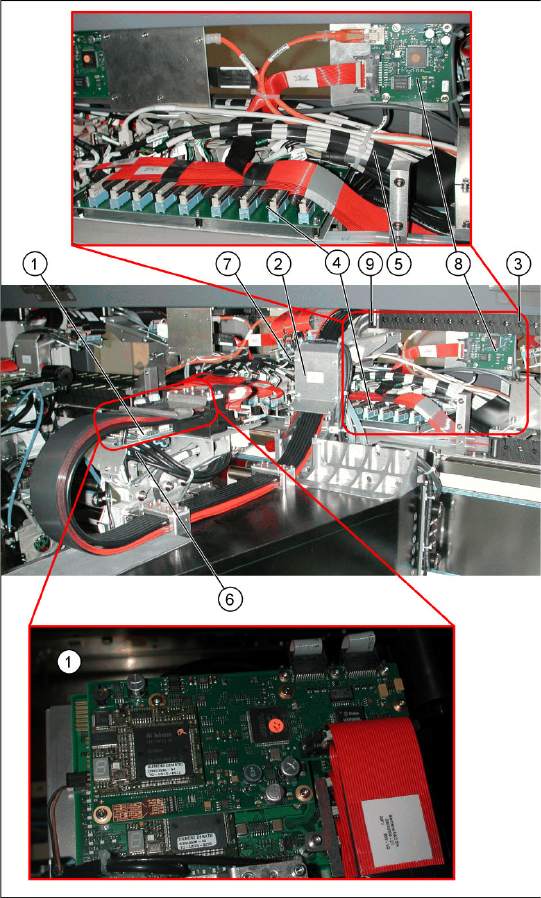

Version 2 after B-079
See also:
J
Preparing the Trailing Cable [
J
50]
J
Handling the Hose Unlocking Tool [03047090-xx] [
J
48]
Legend
1. Vision board spread spectrum (VBSX)
assembly [03054634-xx]
2. Trailing cable console
3. Power track chain
4. Trailing unit interface gantry
5. Pneumatic hoses to the pneumatic distributor
(in the machine base)
6. Gantry distributor
7. Gantry interface
8. Vision hotlink adapter VHA assembly
[03054633-xx]
9. Connection piece for cooling tubes to Y motor
Service Work
D3 Gantry
Servicemanual (internal version) SIPLACE D Series
55

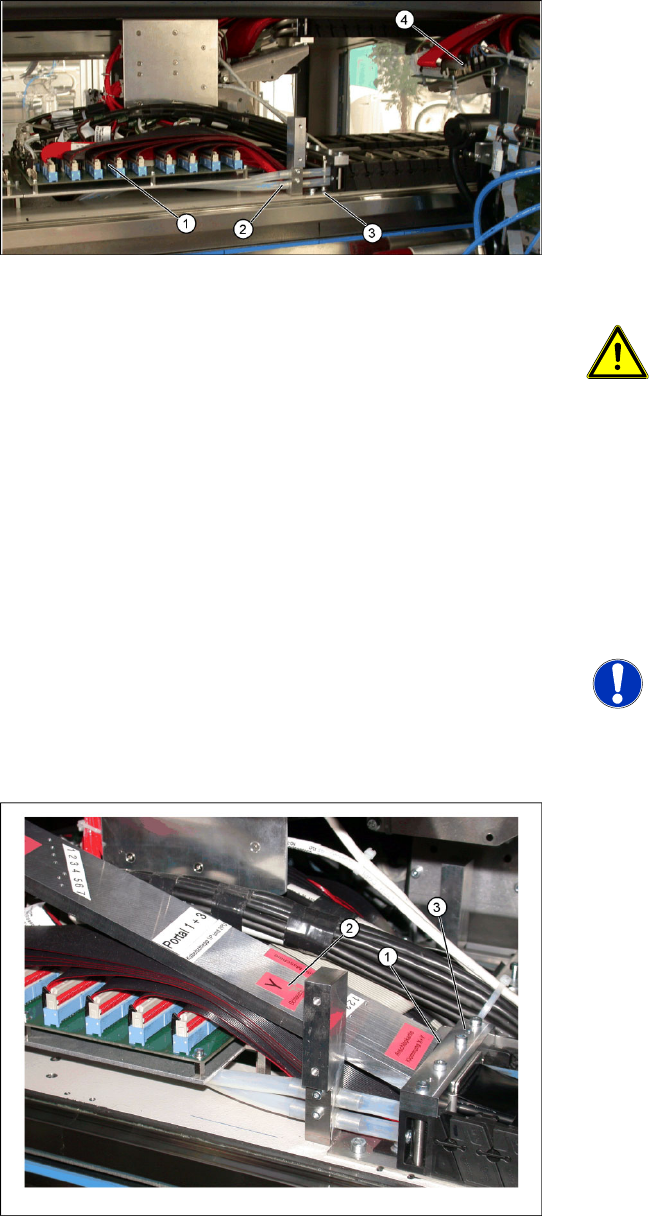

Removal
Legend
1. Trailing unit interface gantry
2. Pneumatic for vacuum pump (option)
3. Mount for trailing cable
4. Gantry interface
X Loosen the flat ribbon cable on the trailing unit
interface gantry (1). Take care not to lose the
brackets for the press-fit connections. They
could fall out and be lost.
X Remove cable ties where necessary.
ATTENTION:
Note the order in which the terminal
connections are arranged.
X Label the press-fit connections to the
flat ribbon cables, for easier
reconnection later.
X Remove the necessary cable ties at the gantry
interface (4) and disconnect the flat ribbon
cable.
X Disconnect the motor, proximity switches,
incremental encoder and temperature sensor
cables from the gantry interface (4) .
NOTE: Refitting the gantry interface
board.
The gantry interface board is installed
on the mount of the new trailing cable.
To sever the pneumatic hoses, which lead to the
pneumatic distributor inside the machine base,
proceed as follows:
X Place the gauge (1) on the mount (3).
X Use the gauge to label the hoses at the Y hose
mark (2).
