Service Work
Gantry D3
56 Servicemanual (internal version) SIPLACE D Series
CAUTION: Before cutting the pneumatic hoses
X Label the order of pneumatic hoses (from 1 to 7 – inside to outside). This is important to
ensure that the hoses are then correctly connected again after cutting.
X During cutting, make sure that the pneumatic hoses do not fall into the machine base. Secure
them accordingly.
X Make sure that you use the correct gauge for your gantries and that you do not cut the
pneumatic hoses too short.

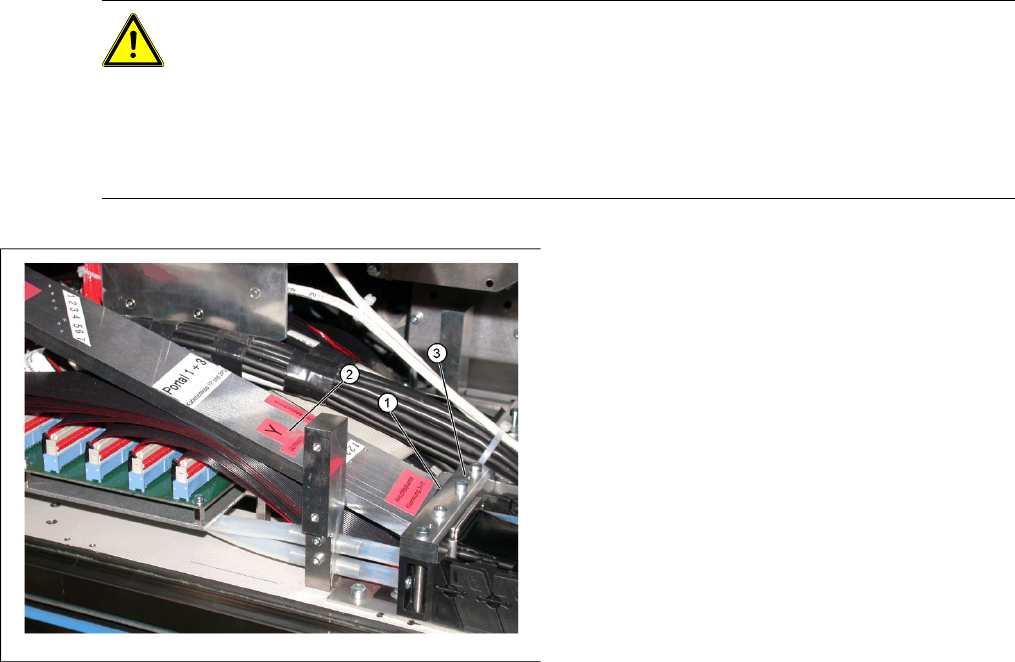

X Loosen the screws fastening the trailing cable
mount (3) .
X If the option "Vacuum pump" is available,
loosen the pneumatic hoses (2) and follow the
instructions in the
Retrofitting Guide for
Vacuum Pumps
[0019508901].
X Secure the end of the trailing cable (with cable
ties) in the machine to prevent it hanging
loosely and damaging other machine
components.
Service Work
D3 Gantry
Servicemanual (internal version) SIPLACE D Series
57

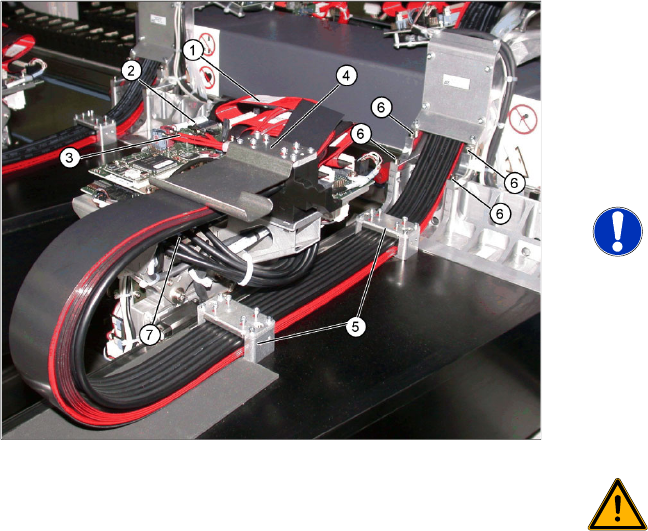

X Loosen the flat ribbon cable (1) at the head
board (2).
X Loosen the camera cable (3) at the head
board (2).
X Undo the screws fastening the X trailing cable
clamp (4) and the two clamps (5) on the back
of the gantry.
NOTE: Clamp remains intact
X Only loosen the fastening screws.
The clamps for the flat ribbon cable
remain in place.
X Mark the installation position of the
contact disks and spacer bolts and
take care not to lose them. These will
need to be correctly replaced later.
X Remove the hoses from the pneumatic
distributor (7).
WARNING: Risk of injury to hands
X Use the hose unlocking tool to
remove the hoses [03047090-xx].
X Undo the 4 screws (6) fastening the trailing
cable console and carefully remove the
complete trailing cable from the machine. The
fastening screws have been secured with
Loctite.
X When you replace an old trailing cable with a
new one, you also need to remove the hotlink
card (including metal fixtures) and the Vision
board spread spectrum.
Service Work
Gantry D3
58 Servicemanual (internal version) SIPLACE D Series
Installation
CAUTION:
Handle the new trailing cable with care and enlist the help of a second person. Make sure that
the flat ribbon cable and the pneumatic hoses are not rubbed against any parts or folded.Look
out for sharp edges.
Legend
1. Complete trailing cable unit
2. Mount
3. Pneumatic hoses (shorten to optimum length
with gauge)
4. Gantry interface bracket
5. Gantry interface
6. Connection piece for cooling tubes to Y motor
7. Trailing cable console
8. Clamp at back of gantry
9. X trailing cable clamp
X If you replace a trailing cable which is of
version 1 from B-079-B with a trailing cable
which is of version 2 after B-079-B , first
replace the new "Vision hotlink adapter VHA
assembly" [03054633-xx] and the "Vision
board spread spectrum (VBSX) assembly."
[03054634-xx].
X Carefully insert the new trailing cable (1) into
the prescribed position. Make sure you do not
twist it.
X Temporarily fasten the ends to the machine
base (by tying them etc.).
X Fit the gantry interface board (5) onto the
holder (4) of the new trailing cable.
