Service Work
Gantry D3
58 Servicemanual (internal version) SIPLACE D Series
Installation
CAUTION:
Handle the new trailing cable with care and enlist the help of a second person. Make sure that
the flat ribbon cable and the pneumatic hoses are not rubbed against any parts or folded.Look
out for sharp edges.

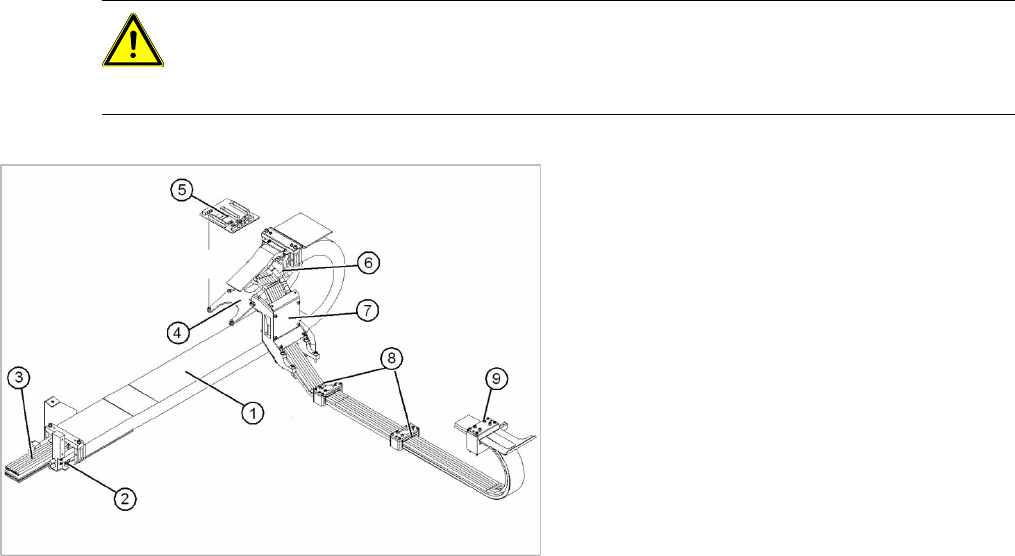

Legend
1. Complete trailing cable unit
2. Mount
3. Pneumatic hoses (shorten to optimum length
with gauge)
4. Gantry interface bracket
5. Gantry interface
6. Connection piece for cooling tubes to Y motor
7. Trailing cable console
8. Clamp at back of gantry
9. X trailing cable clamp
X If you replace a trailing cable which is of
version 1 from B-079-B with a trailing cable
which is of version 2 after B-079-B , first
replace the new "Vision hotlink adapter VHA
assembly" [03054633-xx] and the "Vision
board spread spectrum (VBSX) assembly."
[03054634-xx].
X Carefully insert the new trailing cable (1) into
the prescribed position. Make sure you do not
twist it.
X Temporarily fasten the ends to the machine
base (by tying them etc.).
X Fit the gantry interface board (5) onto the
holder (4) of the new trailing cable.
Service Work
D3 Gantry
Servicemanual (internal version) SIPLACE D Series
59
X Loosely fasten the trailing cable console (7)
with a screw.
X Clean the trailing cable contact surface on the
machine base with a dry cloth.
X Starting from the trailing cable console (7), run
all cables and hoses to the appropriate
connections:
X Reconnect all electrical connections at the
head board. Observe the correct connector
assignment.
X Reestablish all connections to the hotlink card
and the Vision board spread spectrum.
X Reconnect all compressed air connections at
the pneumatic distributor. Observe the correct
connector assignment.
X The pneumatic hoses need to be shortened to
the optimum length, with the help of the gauge.
See also section ( Preparing the Trailing Cable
J
50 ) . They must engage firmly but should
not fold.
X Loosely screw in the clamps (8) and (9).
X Check that the power track chain can run
along the top of the machine base without
obstruction. Move the Y axis back and forth to
check this.
X If necessary, correct at the trailing cable
console (7) and at the clamps (8) and (9).
X Fix the two clamps (8) and (9) and the trailing
cable console (7). Use Loctite 241 to secure
them.
X Tighten the fastening screws for the trailing
cable console (7) crosswise.
Service Work
Gantry D3
60 Servicemanual (internal version) SIPLACE D Series
See also:
J
Handling the Hose Unlocking Tool [03047090-xx] [
J
48]
X Fit the trailing cable mount (2) onto the
machine base.
Connect the pneumatic hoses to the
pneumatic distributor in the machine
base.
The pneumatic hoses are run to the pneumatic
distributor in the machine base. The existing
pneumatic hoses, which are run in the machine,
need to be severed and connected to the trailing
cable at the exact position, with the help of hose
couplings (03049770-01) (1).
X Place the gauge at the stopper edge of the
mount and label the pneumatic hoses for the
trailing cable. See also section ( Preparing the
Trailing Cable
J
50 ) .
CAUTION: Shortening and connecting the pneumatic hoses
X Label the order of pneumatic hoses (from 1 to 7 – inside to outside). This is important to
ensure that the hoses are then correctly connected again after cutting.
X Make sure that you use the correct gauge for your gantries and that you do not cut the
pneumatic hoses too short.
X Make sure that the hose couplings are not run over one another. Use the gauge to shorten
the individual hoses to the various optimum lengths.
X Cut the pneumatic hoses of the new trailing
cable at the marked points.
X The 7 hoses of the new trailing cable are
connected to one another. Carefully separate
these from one another, up to the mount.
X Connect the pneumatic hoses for the trailing
cable with the hose couplings (1). Observe the
labeling (1-7 from inside to outside).
X Reconnect the Y motor cooling tubes to the
connection pieces.
X If you have the option "Vacuum pump",
reconnect the pneumatic hoses.
X Fasten new cable ties at the original points.
X Replace all dismantled cover plates in their
original positions.
