Service Work D3 Gantry Servicemanual (internal version) SIPLACE D Series 73 Inst allation Check for Guide T rolley and Motor Support Installation check X Clean all drillings with a pipe cleaner and ethanol, to remov e an…
Service Work
Gantry D3
72 Servicemanual (internal version) SIPLACE D Series
Installation
Closing drillings for individual head configurations
The drillings used to fasten the head vary between the different head configurations. Those which are
not needed must be closed. This prevents the cooling air from escaping!!
Template for 12/6 C+P head (03011690-xx)
Template for Twin Head (03011693-xx)
Grub screws M 4x6-ST (00309422-xx)
X Clean the contact surface of the guide trolley
(1) with a dressing stone (oil stone). Then wipe
the contact surface clean with ethanol.
X Screw the dismantling screws fully into each
side of the new X drive.
X Place the foam rest on the magnetic strip.
X Lift the new X drive up to the guide trolley and
fasten the X drive with the M4x60 lock screws.
X Remove the foam rest.
DANGER: Risk of fatal injuries
through trapped limbs.
Make sure that you do not trap any
limbs between the X drive and the
magnetic strip.
X Now fit 3 fastening screws on each side.
Observe the different screw lengths.
X Remove the lock screws and fit the fastening
screws in their place.
X Tighten all fastening screws crosswise with a
torque wrench (2.9 N).
X Install the PCB camera.
X Check the gap between the X drive and the
magnet cover with a 0.4mm thickness gauge.
X To do this, place the thickness gauge between
the X drive and the magnet cover and then
push the X drive back and forth along the
entire length. Make sure none of the parts jam.
1
Service Work
D3 Gantry
Servicemanual (internal version) SIPLACE D Series
73
Installation Check for Guide Trolley and Motor Support
Installation check
X Clean all drillings with a pipe cleaner and
ethanol, to remove any adhesive residues.

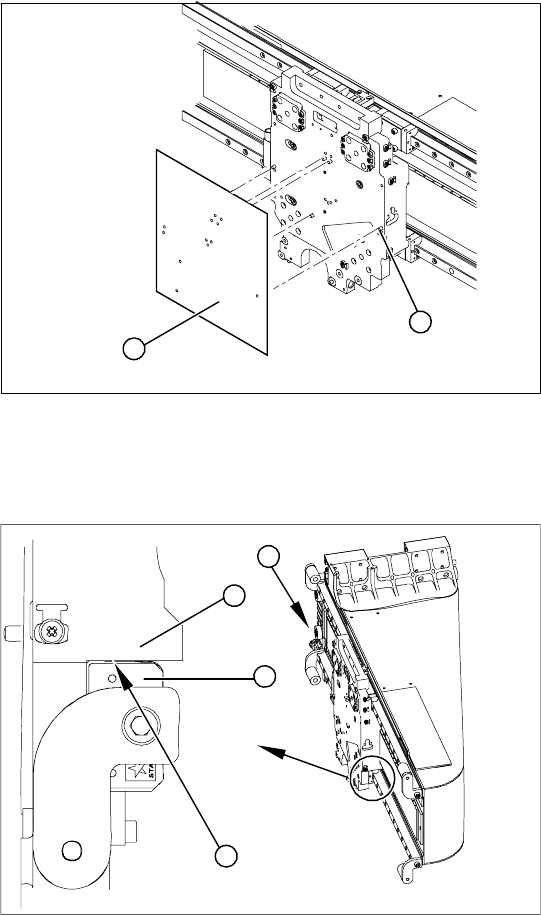

X Position the relevant template on the centering
pins of the head mount and attach the
template.
X Use the holes in the template to screw the grub
screws (with Loctite 241) into the head mount.
X These grub screws must be level with the
surface of the head mount (countersunk).
1
2
X Shine a nonmagnetic xenon flashlight, from
behind, to check between the X drive and
magnetic strip (1).
X Between the motor support (2) and the guide
trolley (3) you should not be able to see a gap
(4).
X If you can see a gap, remove the X drive and
fit it again.
X Check the gap between the X drive and the
magnet cover with a 0.4mm thickness gauge.
X To do this, place the thickness gauge between
the X drive and the magnet cover and then
push the X drive back and forth along the
entire length. Make sure none of the parts jam.
4
1
3
2
Service Work
Gantry D4
74 Servicemanual (internal version) SIPLACE D Series
4.1.4 D4
4.1.4.1 Replacing the X Axis Scale [00329316-01]
Tools and Equipment
Set of DIN 911 Allen keys
Spacer gauge
SITEST program
Parts
X-axis scale for D4 [00329316-01]
Removing the X-axis scale
4-18: Removing the X-axis scale (HS)
Legend
X Switch off the machine and secure it to prevent unauthorized reactivation.
X Dismantle the X axis incremental encoder (1). To do this, loosen the two M3x8 hexagon socket-head
screws (2).
X Loosen the 11 M 2.5x5 hexagon socket-head screws (3) with washers.
X Move the head mount (6) as far as the elastomeric spring (7).
X Remove the scale (4).
1 Incremental encoder, X-axis 5 X-axis proximity switches B1 and B2 (no longer
present since axis controller A364)
2 2 x M3x8 hexagon socket-head screws 6 Head mount
3 11 x M2.5x5 hexagon socket-head screws with
washers
7 Elastomeric spring
4 Scale, X-axis A Stop for the scale on the bars
DANGER:
POWERFUL MAGNETIC FIELD
X Always follow the special safety instructions when working in the vicinity of powerful magnetic
fields.
