Cable trees Page 38 / 47 23.11.2021 Pos. Item no. Description Part marking 60 00321575-02 CABLE: MAIN ERROR DISPLAY 159 00342916-01 POWER CABLE: POWER 164 00321428-01 CABLE: CONTROL UNIT-INTERFACE (LEFT) 165 00322067-02 …

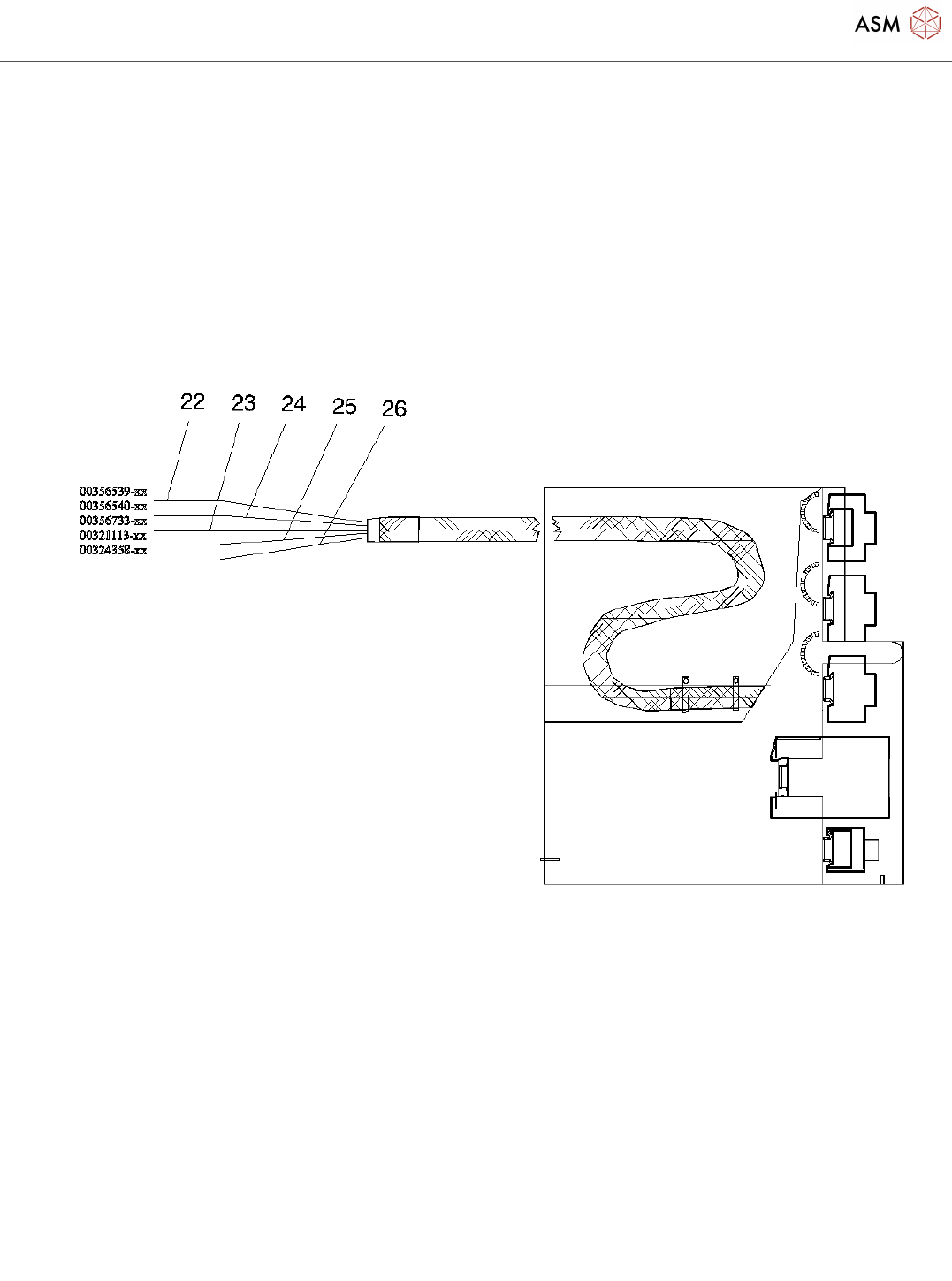

Cable trees
Page 37 / 47 23.11.2021
Cable trees
Page 38 / 47 23.11.2021
Pos. Item no. Description Part marking
60 00321575-02 CABLE: MAIN ERROR DISPLAY
159 00342916-01 POWER CABLE: POWER
164 00321428-01 CABLE: CONTROL UNIT-INTERFACE
(LEFT)
165 00322067-02 CABLE: TERMINAL BOARD -
INTERFACE LEFT SIDE
166 00322071-02 CABLE: INTERFACE - TAPE CUTTER
LEFT SIDE
167 00322069-01 CABLE: TERMINAL BOARD -
INTERFACE LEFT SIDE
178 00321429-01 CABLE: CONTROL UNIT-INTERFACE
(RIGHT)
179 00322068-02 CABLE: TERMINAL BOARD -
INTERFACE RIGHT SIDE
180 00322072-02 CABLE: INTERFACE - TAPE CUTTER
181 00322070-01 CABLE: TERMINAL BOARD -
INTERFACE RIGHT SIDE
00305815-03 CABLE: COVER SWITCH INPUT
00305818-03 CABLE: COVER SWITCH OUTPUT
195 00344215-01 CABLE: ICOS-VIDEO CABLE S23 Spare
196 00344216-01 CABLE: ICOS-VIDEO CABLE S23 Spare Part
197 00344217-01 CABLE: CONTROL UNIT-
CONVERSION BOARD PORTAL S23
198 00344218-01 CABLE: CONTROL UNIT-
CONVERSION BOARD PORTAL S23
199 00355048-01 CABLE: FLASH-MODE GANTRY 2 S23
200 00355049-01 CABLE: FLASH-MODE GANTRY 1 S23
201 00344222-01 CABLE: CAN-BUS PORTAL-1 S23
202 00344223-01 CABLE: CAN-BUS PORTAL-2 S23
203 00344224-01 CABLE: CRASH-SIGN.1
(TERM.-CONVERS.) S23
204 00344225-01 CABLE: CRASH-SIGN.1
(TERM.-CONVERS.) S23
205 00344226-01 CABLE: VOLTAGE STAR-MOTOR
PORTAL 1 S23
206 00344227-01 CABLE: VOLTAGE STAR-MOTOR
PORTAL 2 S23
207 00344250-01 CABLE: TRACK Y-AXIS S23
208 00344251-01 CABLE: TRACK X-AXIS S23
Cable trees
Page 39 / 47 23.11.2021
Pos. Item no. Description Part marking
209 00344252-01 CABLE: TRACK SIGNAL
210 00344253-01 CABLE: TRACK SIGNAL
211 00344254-01 CABLE: TRACK SIGNALS DP1-AXIS
S23
212 00344255-01 CABLE: TRACK Y-AXIS S23
213 00344256-01 CABLE: TRACK X-AXIS S23
214 00344257-01 CABLE: TRACK SIGNAL
215 00344258-01 CABLE: TRACK SIGNAL
216 00344259-01 CABLE: TRACK SIGNALS DP1-AXIS
S23
217 00344260-01 CABLE: LIGHT PORTAL-1 S23 Spare Part
218 00344261-01 CABLE: SUPPLY ILLUMINATION
PORTAL-2 S23
219 00337540-01 CONNECTING CABLE X1-MOTOR
S23
220 00337541-01 CABLE TACHO/RLG Y1-MOTOR S23
221 00321539-01 CABLE: MOTOR DR-AXIS
SP/IC1-HEAD
222 00321541-03 CABLE: MOTOR/TACHO Z-AXIS
SP/IC1-HEAD
223 00321544-03 CABLE: MOTOR/TACHO DP1-AXIS
W1/W2
224 00321547-03 CABLE: CRASH-BEROS
225 00337542-01 CONNECTING CABLE X2-MOTOR
S23
226 00337543-01 CABLE TACHO/RLG Y1-MOTOR S23
227 00321565-01 CABLE: MOTOR DR-AXIS
SP/IC1-HEAD
228 00321567-02 CABLE: MOTOR/TACHO Z-AXIS
SP/IC1-HEAD
229 00321569-02 CABLE: MOTOR/TACHO DP1-AXIS
230 00321571-03 CABLE: CRASH-BEROS
231 00321550-03 GANTRY CABLE (CAMERAS) SPARE PART
232 00321553-03 GANTRY CABLE (HEAD AXES) SPARE PART
233 00321554-03 GANTRY CABLE (X-TRACK / CAN-
BUS)
SPARE PART
234 00321555-04 GANTRY CABLE (DP1-AXIS) SPARE PART
235 00321556-03 GANTRY CABLE (STAR / Z-AXES) SPARE PART
236 00321557-03 GANTRY CABLE (X-MOTOR) SPARE PART
