7 WF4 SX1/2 Grease the guide bearing and clean the linear guide and scale of the X- Axis. 1.5 min 1 / 3 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n …
6 WF4 SX1/2 Check and clean the X- and Y-Axis magnets. 1.5 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T3
Wear Part: Consumables:
C3
www.asm-smt.com
7 Repeat all steps at the other gantry.
7 WF4 SX1/2 Grease the guide bearing and clean the linear guide and scale of the X-
Axis.
1.5 min 1 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T12, T89, T90
Wear Part: Consumables:
C3, C5, C31, C49
www.asm-smt.com

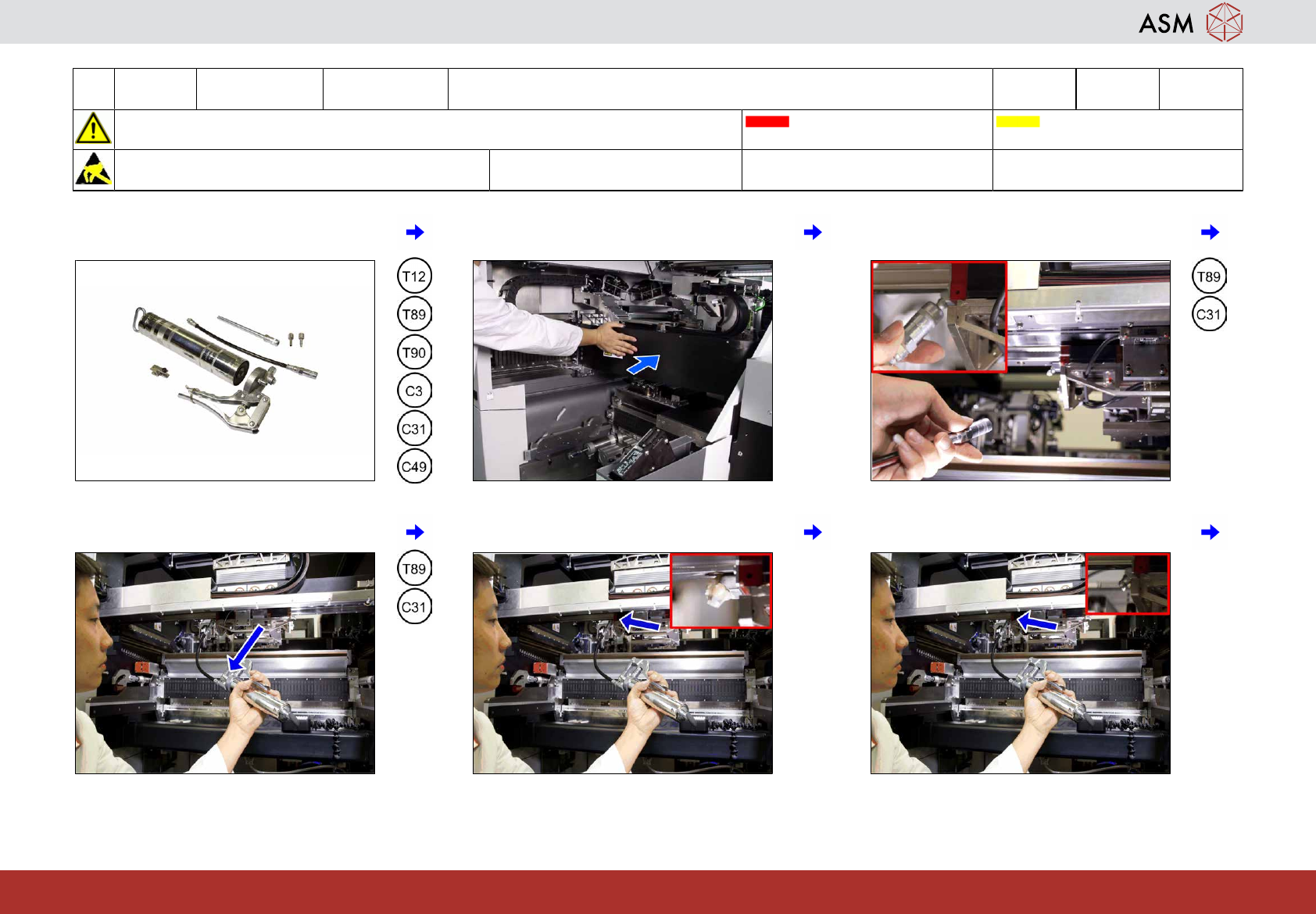

1 Prepare the grease gun, see appendix
[33]
.
2 Move the gantry to a good working posi-
tion.
3 Position the hose straight onto the grease
nipple.
4 Squeeze the grease gun one time. 5 Grease emerges at the grease nipple. 6 If NOT go to Step 8.
7 WF4 SX1/2 Grease the guide bearing and clean the linear guide and scale of the X-
Axis.
1.5 min 2 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T12, T89, T90
Wear Part: Consumables:
C3, C5, C31, C49
www.asm-smt.com
7 If YES contact service. 8 Move the X-Axis 30cm back and forth. 9 Repeat steps 4 to 8 once more.
10 Remove the excess grease around the
grease nipple.
11 Repeat the lubrication at the grease nipple
on the other side of the head holder.
12 Clean the X-Axis linear guide on the tread
and both sides over the entire length.
