9 WF4 SX1/2 Grease the guide bearing and clean the linear guide and scale of the Y-
Axis.
3 min 1 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T12, T89, T90
Wear Part: Consumables:
C3, C5, C31, C49
www.asm-smt.com

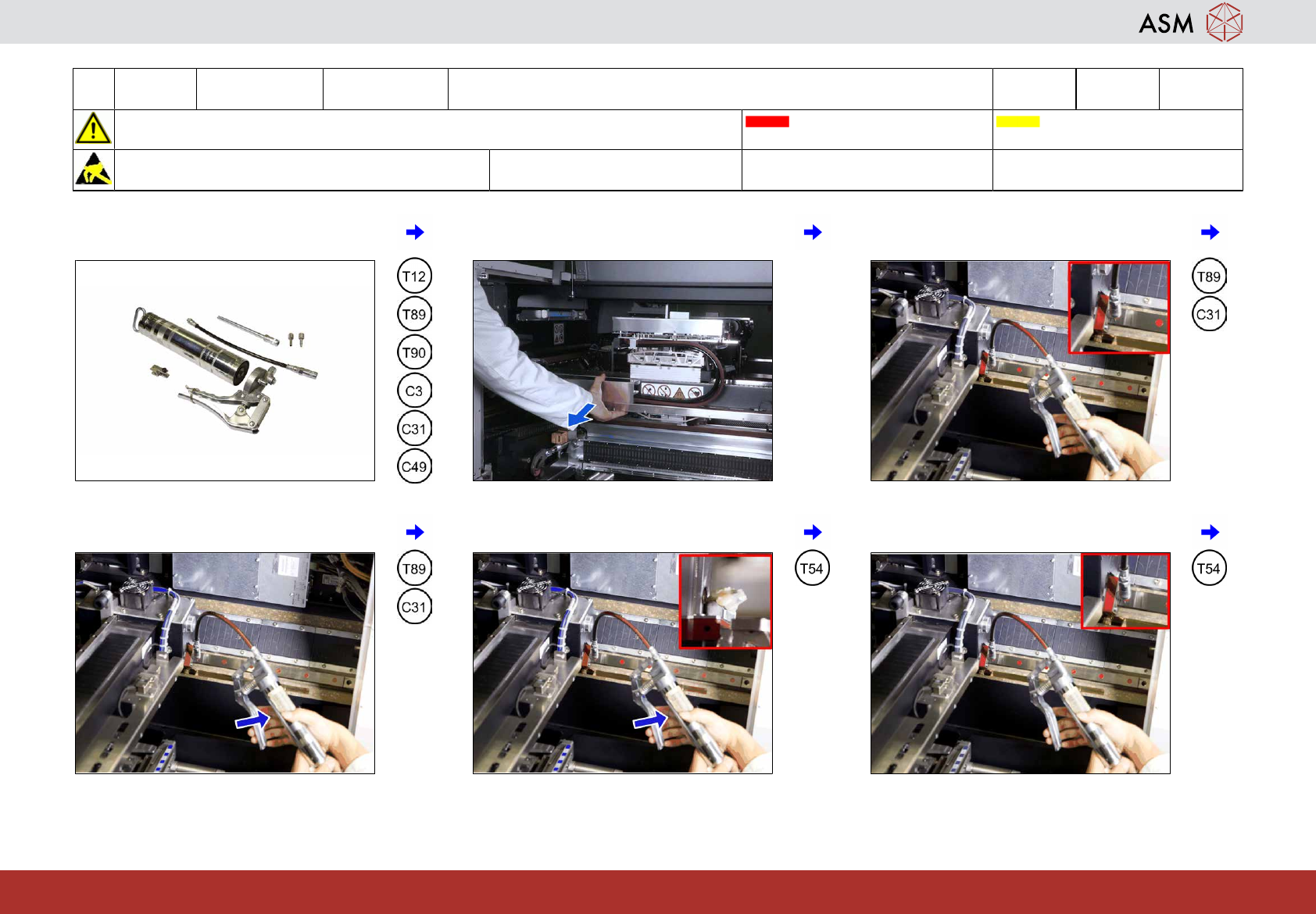

1 Prepare the grease gun, see appendix
[33]
.
2 Move the gantry to a suitable working
area.
3 Position the hose straight onto the outer
grease nipple of the gantry.
4 Squeeze the grease gun one time. 5 Grease emerges at the grease nipple. 6 If NOT go to Step 8.
9 WF4 SX1/2 Grease the guide bearing and clean the linear guide and scale of the Y-
Axis.
3 min 2 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T12, T89, T90
Wear Part: Consumables:
C3, C5, C31, C49
www.asm-smt.com

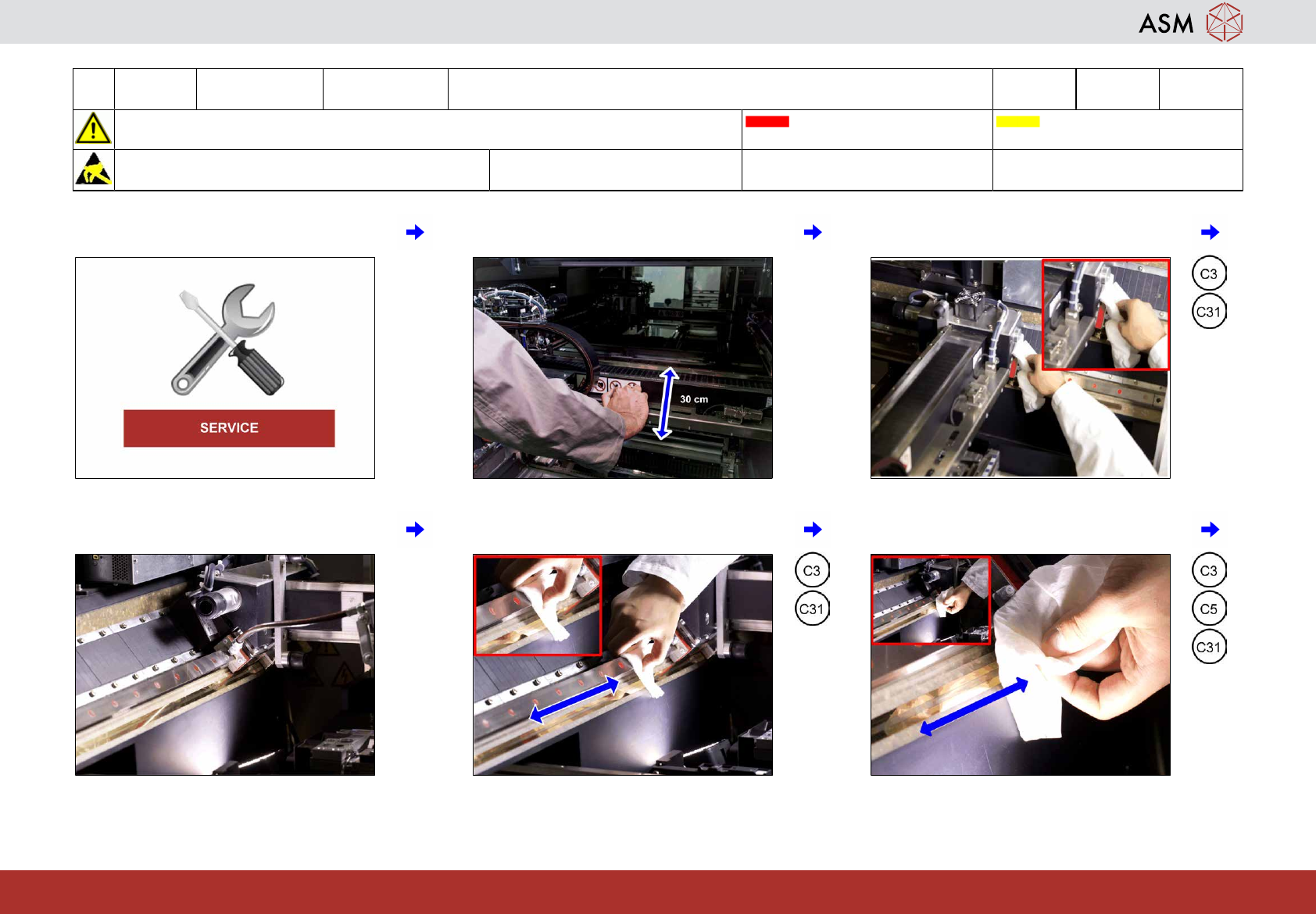

7 If YES inform service. 8 Move Y-Axis 30cm back and forth. 9 Remove the excess grease around the
grease nipple.
10 Repeat the lubrication at the other grease
nipple of the gantry.
11 Clean the linear guide on the tread and
both sides over the entire length.
12 Clean the Y-Axis scale over the entire
length.
