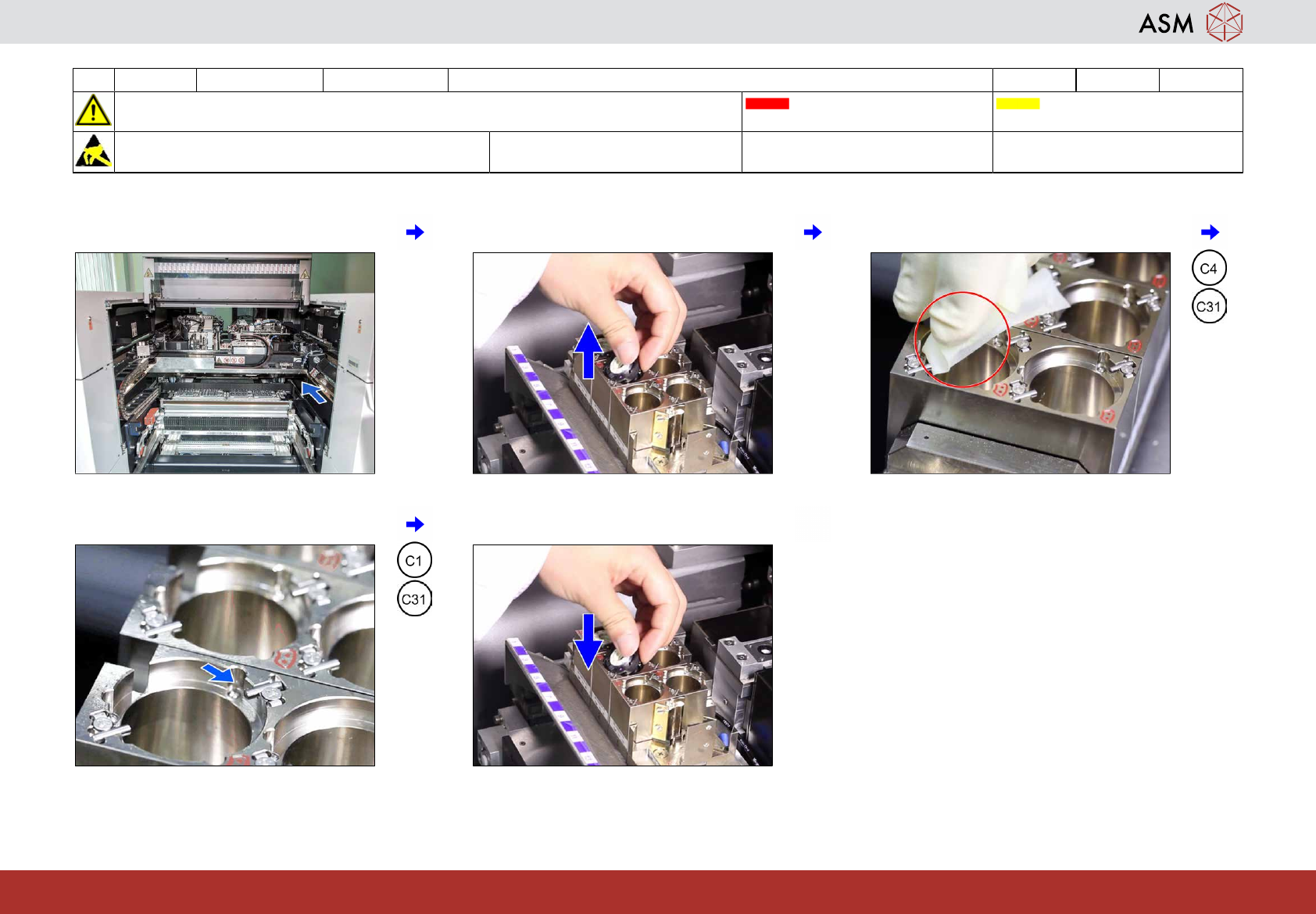

13 WF4 SX1/2 Clean and grease the nozzle changer TwinHead. 1 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C4, C31
www.asm-smt.com
1 Move the gantry over the transport. 2 Remove all nozzles. 3 Clean the nozzle garage.
4 Ensure to properly clean the spring lock. 5 Return all nozzles.
www.asm-smt.com
14 WF4 SX1/2 Prepare the feeder, return all tables, close the covers and switch on
machine.
1.25 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T1, T18
Wear Part: Consumables:
www.asm-smt.com
1 Remove all loose components from the
feeder modules.
2 Cut the remaining tape directly at the
feeder.
3 After Cutting: Ensure to leave 2 holes
overlapping.
4 Return all COT. 5 Close all covers. 6 Switch on the machine.
