27 WF4 SX1/2 Appendix: Prepare the grease gun 1.5 min 2 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c e Transport Empt…
27 WF4 SX1/2 Appendix: Prepare the grease gun 1.5 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T12, T89, T90, T104
Wear Part: Consumables:
C3, C31, C49
www.asm-smt.com

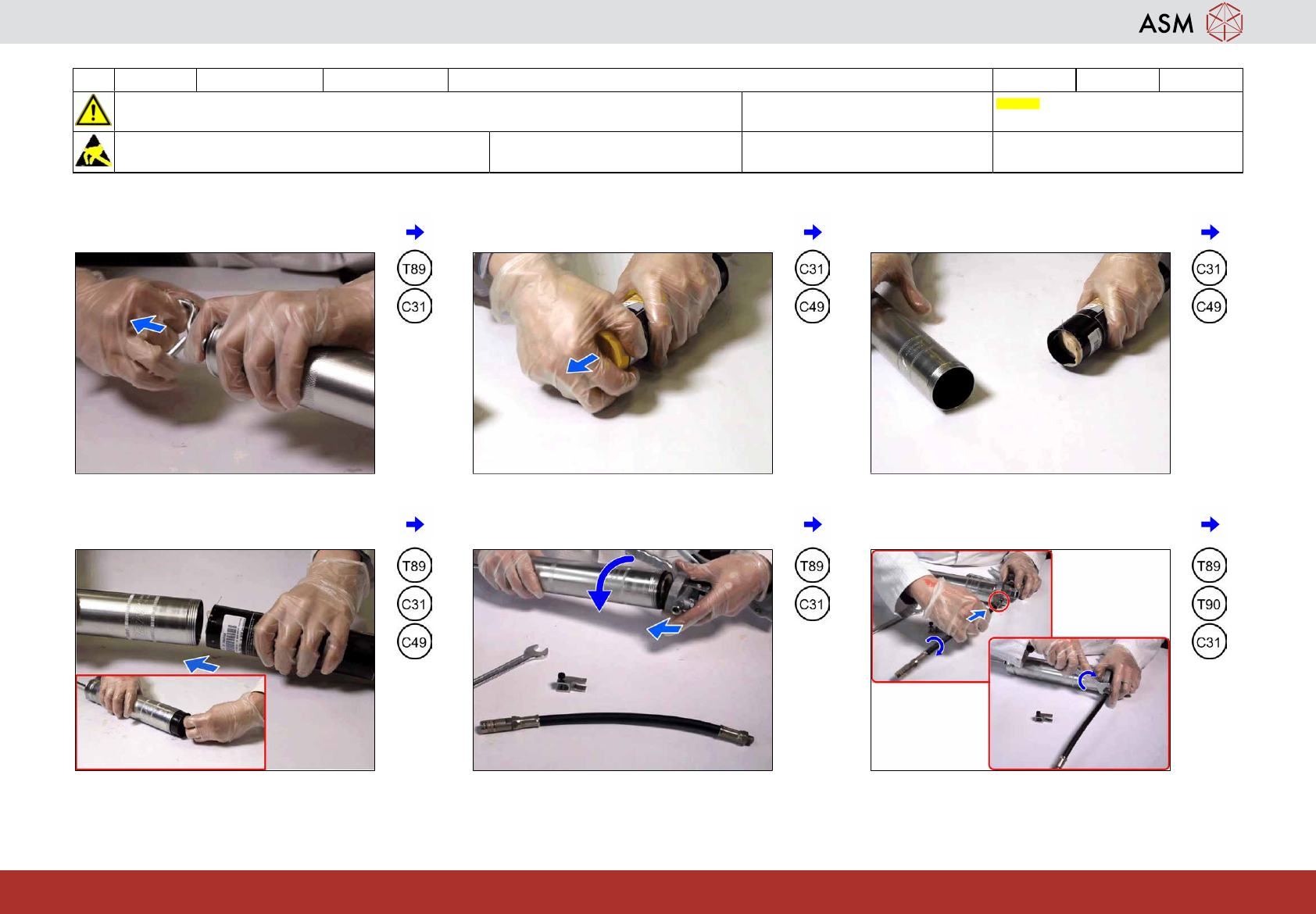

1 Pull back the plunger to the lock. 2 Unscrew the top section. 3 Prepare the grease cartridge (if required).
4 Insert the grease cartridge into the grease
gun.
5 Close the grease gun. 6 Mount the hose with the hydraulic mouth-
piece X-Axis.
27 WF4 SX1/2 Appendix: Prepare the grease gun 1.5 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T12, T89, T90, T104
Wear Part: Consumables:
C3, C31, C49
www.asm-smt.com

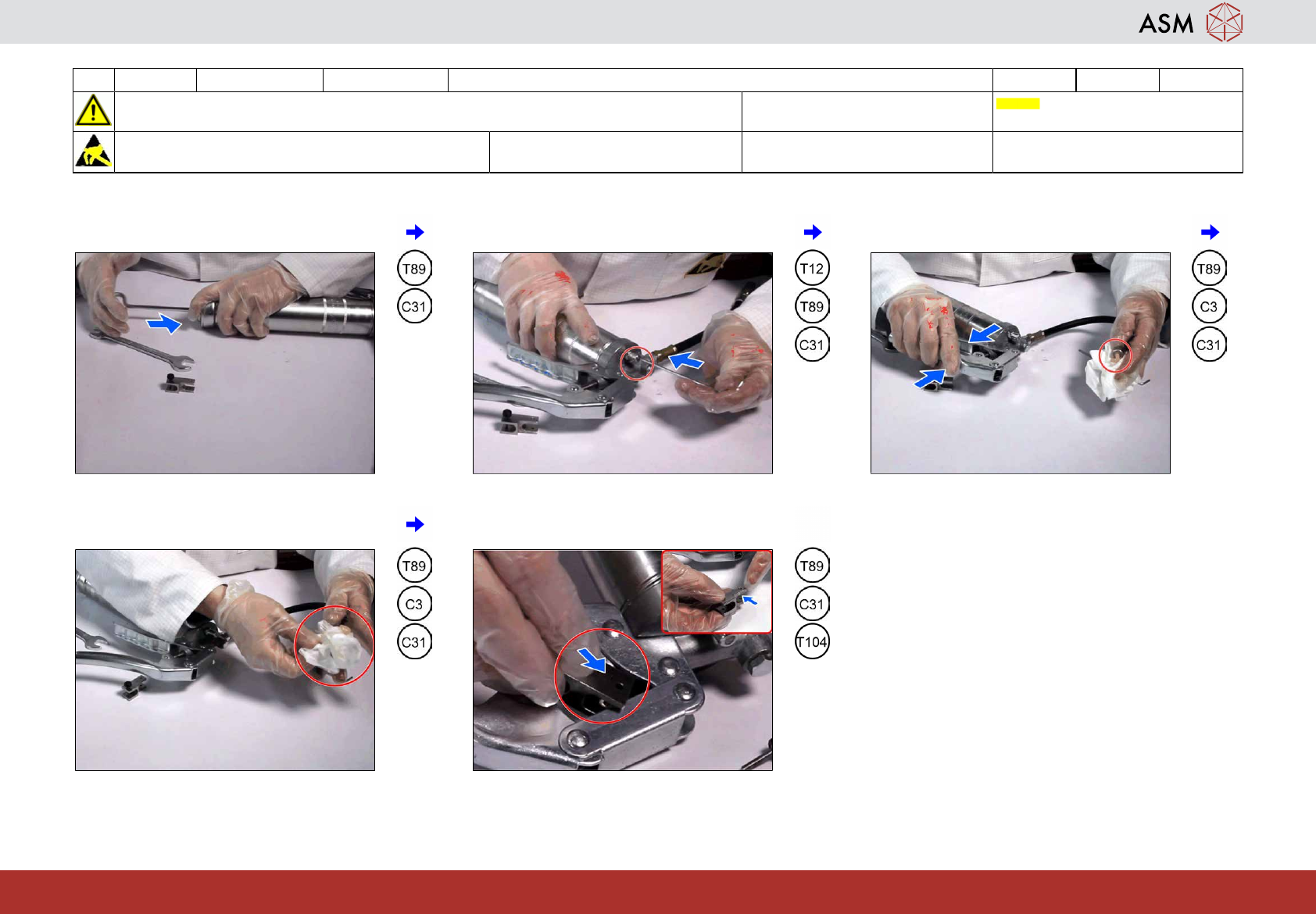

7 Loosen the lock. 8 Push back the ball on the vent screw. 9 Press the trigger until grease comes out.
10 Remove excess grease. 11 Mount the stroke limiter with the 0.4g side
into the grease gun.
