P-281-004e - 第69页
1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE Q-4 Q-4 list-1 303 6301668635 LEVER(SUP) 1 877Q--010-303 216S3239 307 6301329505 PIN,HINGE(SUP) 1 877Q--010-307 216D0500 309 6301583266 SPRING,TORSION 1 …
0712-002
テープフィーダ
TAPE FEEDER
GT-44561B
GT-44561B

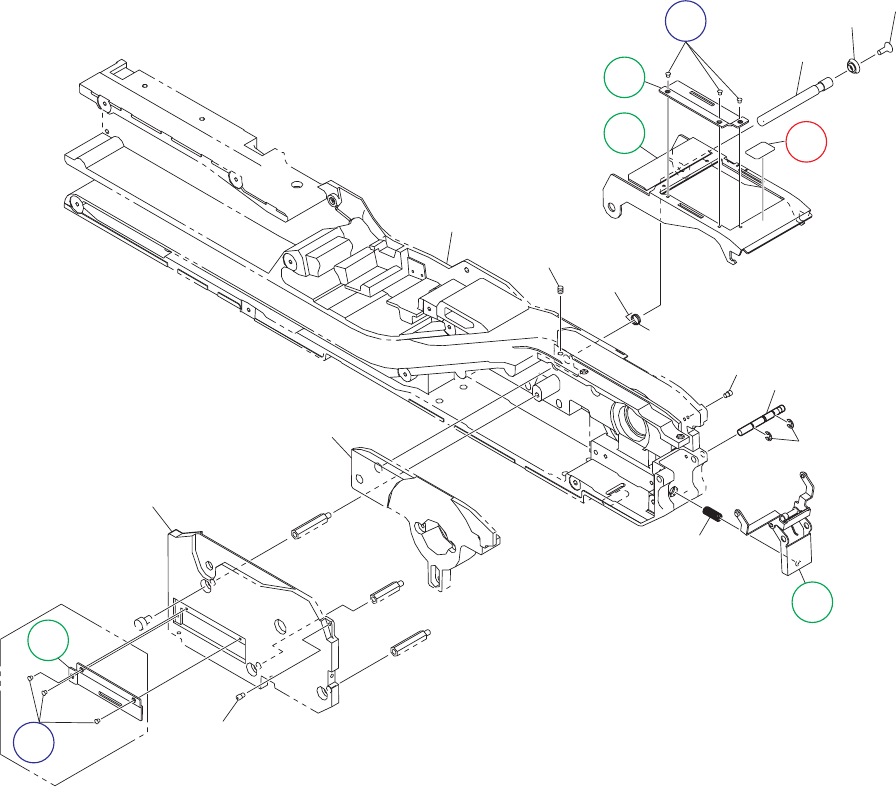

Fig. Q-4
サプレッサ部
Suppressor Section
See Fig.Q-1
Key No.1
See Fig.Q-1
Key No.6
See Fig.Q-2
Key No.152
321
328
323
320
321
320
307
303
314
312
309
319
319
313
329
331
332
注)
Key No.303,312,320,321,329(○印)は保守品となっております。交換時期について
は取扱説明書を参照、もしくは当社サービス員にご相談下さい。
Notice) The Key No. 303, 312, 320, 321 and 329 (with a circle) are maintenance components.
For replacement timing, refer to the Instruction Manual or consult our service
personnel.
Q-4 illust-1
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
Q-4
Q-4 list-1
303 6301668635 LEVER(SUP) 1 877Q--010-303 216S3239
307 6301329505 PIN,HINGE(SUP) 1 877Q--010-307 216D0500
309 6301583266 SPRING,TORSION 1 877Q--010-309 222P0201
312 6301305134 ASSY,HOOK(FRONT HOOK) 1 877Q--010-312 016J0027
313 6301292793 PIN,HINGE(FRONT) 1 877Q--010-313 216D0467
314 6301275406 SPRING,COMP 1 877Q--010-314 222M1325
319 6301275451 PIN,LOCATE 2 877Q--010-319 216E1498
320 6301662718 PLATE(SUP) 1 877Q--010-320 211DD967
321 6301664149 MACHINE SCREW 3 877Q--010-321 221D0196
323 6300082296 SET SCREW 1 M4X4 SET
877Q--010-323 221C0027
328 4110160203 RING E 2.5 2 877Q--010-328 221K0114
329 0804000H NAME PLATE 1 877Q--010-329 0804000H
331 6301329208 WASHER 1 877Q--010-331 221H0230
332 4110335700 SCR FLT 2.5X6 1 877Q--010-332 221D0261
GT-44561B
1004-003
テープフィーダ
TAPE FEEDER
GT-44561B
GT-44561B
Fig. Q-5
操作パネル部
Operation Panel Section
431
417
436
404
418
445
See Fig.Q-1
Key No.1
Q-5 illust-1
