0909-003 テープフィーダ T APE FEEDER GT -72001B GT -72001B Fig. T -2 テープ駆動部 T ape Driving Section 101-03 121 101 101-06 101-07 101-07 129 130 126 . . D 124 122 1 16 106 104 See Fig.T -1 Key No.52 103 125 133 134 135 . . 132 131…
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
T-1
T-1 list-1
1 6301304823 FRAME 1 877T--010-001 210B3758
2 6301526775 BLOCK(KIBAN) 1 877T--010-002 211G5053
3 6301279046 COVER(LA) 1 877T--010-003 211A8747
4 6301279053 COVER(LB) 1 877T--010-004 211A8748
5 6301279060 COVER(LC) 1 877T--010-005 211A8749
6 6301324449 COVER(RA) 1 877T--010-006 211A9323
8 6301468976 COVER(KIBAN) 1 877T--010-008 211AA873
9 6301366463 SLIDE(BASE) 1 877T--010-009 212C0385
10 6301266084 ASSY,LEVER(KAIJYO) 1 877T--010-010 016S0689
11 6301265827 PIN,HINGE 1 877T--010-011 216D0448
12 6301265834 ROLLER 1 877T--010-012 213C0206
13 6301265841 PIN,GUIDE(ROLLER) 1 877T--010-013 216F0879
14 6301646121 SPRING,TORSION 1 877T--010-014 222P0207
19 6301274867 COVER(HAISEN) 1 877T--010-019 211A8726
20 6301265926 PIN,LOCATE(TAPE) 4 877T--010-020 216E1484
23 6301324456 COVER(FUTA) 1 877T--010-023 211A9324
24 6301287577 MECH PARTS(MAGNET) 2 877T--010-024 226J1958
25 6301265902 MECH PARTS(CUTTER) 1 877T--010-025 226J1909
26 6301274546 SCR PAN+SW+W 3X6 2 877T--010-026 221D0262
27 6300347906 MECH PARTS(RUBBER LEGS) 1 877T--010-027 226J0249
28 4110335700 SCR FLT 2.5X6 24 877T--010-028 221D0261
29 6300008494 BOLT,HEX-SCT 1 M2.5X6 877T--010-029 221A0104
30 6300007633 BOLT,HEX-SCT 6 M4X12 877T--010-030 221A0018
32 4111407208 SCR FLT 4X6 1 877T--010-032 221D0224
33 4111255403 SCR PAN 2X4 1 877T--010-033 221E0482
37 4110010003 RING E 4 2 877T--010-037 221K0097
40 4111412905 WASHER SPR 4 6 877T--010-040 221H0284
41 4111412509 WASHER SPR 2 1 877T--010-041 221H0276
42 4111414008 WASHER V 4X9X0.8 6 877T--010-042 221H0315
43 4111413605 WASHER V 2X5X0.3 1 877T--010-043 221H0307
46 0804000G NAME PLATE,NOTICE 2 877T--010-046 0804000G
47 08040007 NAME PLATE,INDEX 1 877T--010-047 08040007
52 6301324517 CHUTE 1 877T--010-052 212B1908
53 6301279121 BLOCK 1 877T--010-053 211G3564
54 6301621814 ASSY,COVER 1 877T--010-054 011A0023
55 6301324470 COVER(RC) 1 877T--010-055 211A9326
56 6301324487 COVER(RD) 1 877T--010-056 211A9327
58 6301324593 BOLT 2 877T--010-058 221E0334
59 6301324609 BOLT 1 877T--010-059 221E0335
60 6300007497 BOLT,HEX-SCT 3 M3X4 877T--010-060 221A0004
63 6300007657 BOLT,HEX-SCT 3 M4X16 877T--010-063 221A0020
64 4110022600 SCR FLT 3X6 2 877T--010-064 221D0216
67 6301324616 PIN,LOCATE 7 877T--010-067 216E1518
68 0804000M MECH PARTS 1 877T--010-068 0804000M
71 6301330792 SPRING PIN 1 877T--010-071 221J0063
GT-72001B
0909-003
テープフィーダ
TAPE FEEDER
GT-72001B
GT-72001B

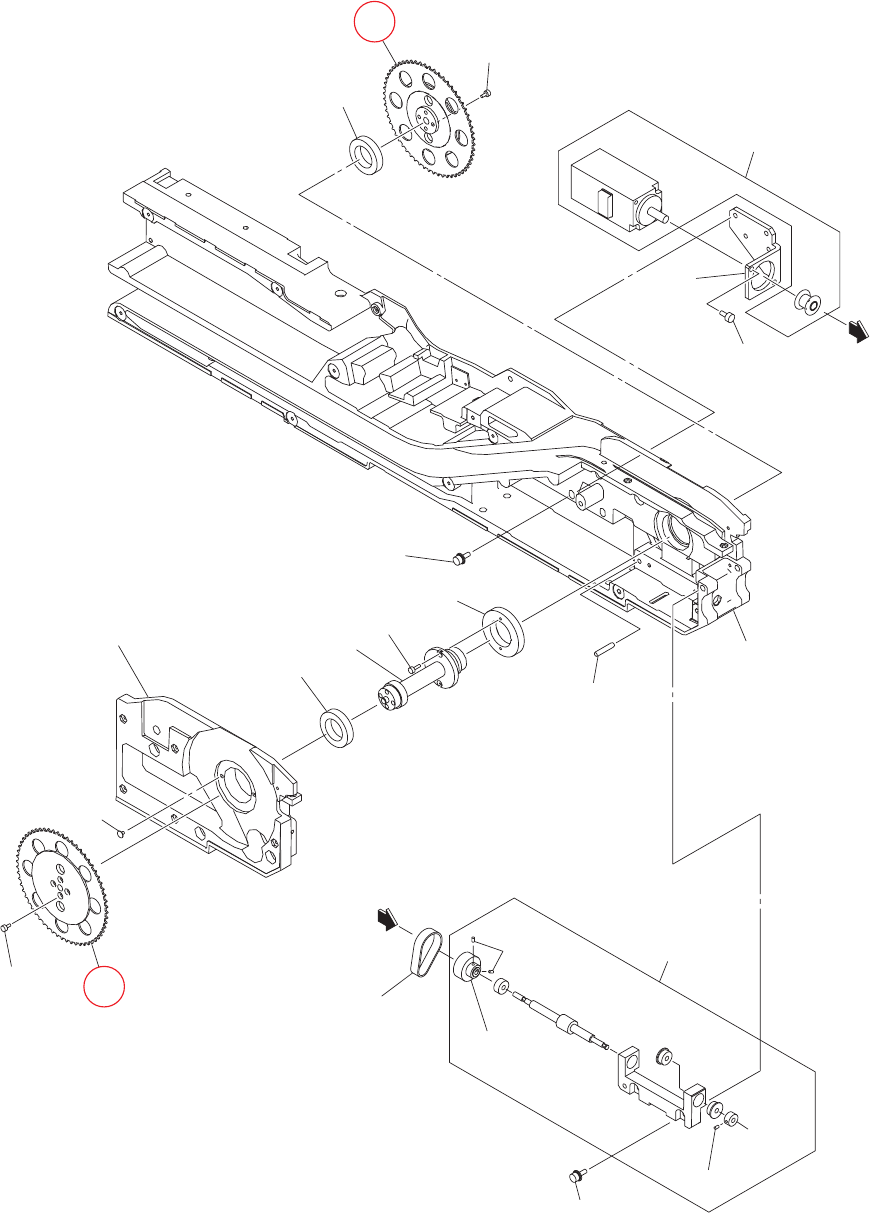

Fig. T-2
テープ駆動部
Tape Driving Section
101-03
121
101
101-06
101-07
101-07
129
130
126
.
.
D
124
122
1
16
106
104
See Fig.T-1
Key No.52
103
125
133
134
135
.
.
132
131
1
16
125
104
See Fig.T-1
Key No.1
D
129
130
.
.
127
139
Key No.104(
Notice) The Key No. 104 (with a circle) are maintenance
components.
For replacement timing, refer to the Instruction
Manual or consult our service personnel.
T-2 illust-1
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
T-2
T-2 list-1
101 6301555652 ASSY,GEAR((WORM)) 1 877T--010-101 023E0017
101 -03 6301443935 COLLAR(BEARING) 1 216A1359
101 -06 6301443942 PULLEY,TIMING 1 223Q0643
101 -07 6301268248 SET SCREW(SET SCREW) 3 M2X3 SET 221C0100
103 6301484556 GEAR 1 877T--010-103 223E0451
104 6301556246 ASSY,SPROCKET 2 877T--010-104 023S0070
106 6301490823 PIN,HINGE 1 877T--010-106 216D0544
116 6301302508 BEARING,RADIAL 2 877T--010-116 222D0403
121 6301279190 BELT,TIMING 1 877T--010-121 223L0273
122 6301265988 PIN,LOCATE 1 877T--010-122 216E1485
124 6300007503 BOLT,HEX-SCT 2 M3X6 877T--010-124 221A0005
125 6300007510 BOLT,HEX-SCT 8 M3X8 877T--010-125 221A0006
126 6300007527 BOLT,HEX-SCT 2 M3X10 877T--010-126 221A0007
127 6301330310 MACHINE SCREW 2 877T--010-127 221D0175
129 4111412806 WASHER SPR 3 4 877T--010-129 221H0281
130 4111413902 WASHER V 3X7X0.5 4 877T--010-130 221H0312
131 6301279244 BRACKET 1 877T--010-131 211F8483
132 6300701906 BOLT,HEX-SCT(BUTTON HEAD) 2 M3X8 BOTTAN
877T--010-132 221A0206
133 6300007619 BOLT,HEX-SCT 2 M4X8 877T--010-133 221A0016
134 4111412905 WASHER SPR 4 2 877T--010-134 221H0284
135 4111414008 WASHER V 4X9X0.8 2 877T--010-135 221H0315
139 08770601 ASSY,MOTOR,AC-SERVO 1 M01 877T--010-509 08770601
