9 MACHINE CONTROL
9.3 M36 MACHINE CONTROL ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 103
9.3.3 NextMove Interface Card
CAUTION
ANTI-STATIC HANDLING. STANDARD PRECAUTIONS MUST BE ADHERED TO
WHEN HANDLING ELECTRONIC CARDS AND CONFIGURING AND INSERTING
INTO THE ENCLOSURES.
The NextMove Interface card opto-isolates 20 inputs and 7 outputs provided by the NextMove ES
card. Also provided is an Error Out which is used for the Software E Stop power, this is not opto-
isolated.
The card consists of 5 LEDs indicating voltages present and test points for checking and aligning
the voltages required.
The voltages are adjusted in the M37 Power Supply Enclosure, 6.3 "M37 POWER SUPPLY EN-
CLOSURE" [}64].
185020 ISSUE
NEXTMOVE INTERFACE BOARD
1
12
11
10
9
8
7
6
5
4
2
3
1 96 Pin Edge Connector 7 LED 3
2 Test Point 6 (TP6) 8 Test Point 3 (TP3)
3 LED 5 9 LED 2
4 Test Point 5 (TP5) 10 Test Point 2 (TP2)
5 LED 4 11 LED 1
6 Test Point 4 (TP4) 12 Test Point 1 (TP1)
TP 1 LED 1 TP 2 LED 2 TP 3 LED 3 TP 4 LED 4 TP 5 LED 5 TP 6
24V US 24 SW +12V -12V +5.5V DGND
9 MACHINE CONTROL
9.3 M36 MACHINE CONTROL ENCLOSURE
104 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
9.3.3.1 Inputs
The following table details the 20 digital inputs for Node 1 Group O:
Input Function Input Function
DIG IN 0 Spare DIG IN 10 Board at Left
DIG IN 1 Spare DIG IN 11 Board at Right
DIG IN 2 Spare DIG IN 12 Jog Left
DIG IN 3 Front Squeegee Home DIG IN 13 Jog Right
DIG IN 4 Rear Squeegee Home DIG IN 14 Power 'ON' Monitor
DIG IN 5 Moving Rail Home DIG IN 15 Cover Interlock
DIG IN 6 Rail Lifted - Left DIG IN 16 Upline Ready
DIG IN 7 Rail Lifted - Right DIG IN 17 Downline Ready
DIG IN 8 Board at Stop DIG IN 18 Board Pass I/P
DIG IN 9 Board Stop Extended DIG IN 19 Spare
9.3.3.2 Outputs
The following table details the 8 digital outputs:
Input Function Input Function
DIG OUT 1 Trigger Image Capture DIG OUT 5 Send Upline
DIG OUT 2 Belt Motors Start-Stop DIG OUT 6 Send Downline
DIG OUT 3 Belt Motors Direction DIG OUT 7 Board Pass O/P
DIG OUT 4 Spare Error Out Software E Stop Power
For all I/O groups select Diagnostics from the Maintenance menu on the machine.
9 MACHINE CONTROL
9.3 M36 MACHINE CONTROL ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 105

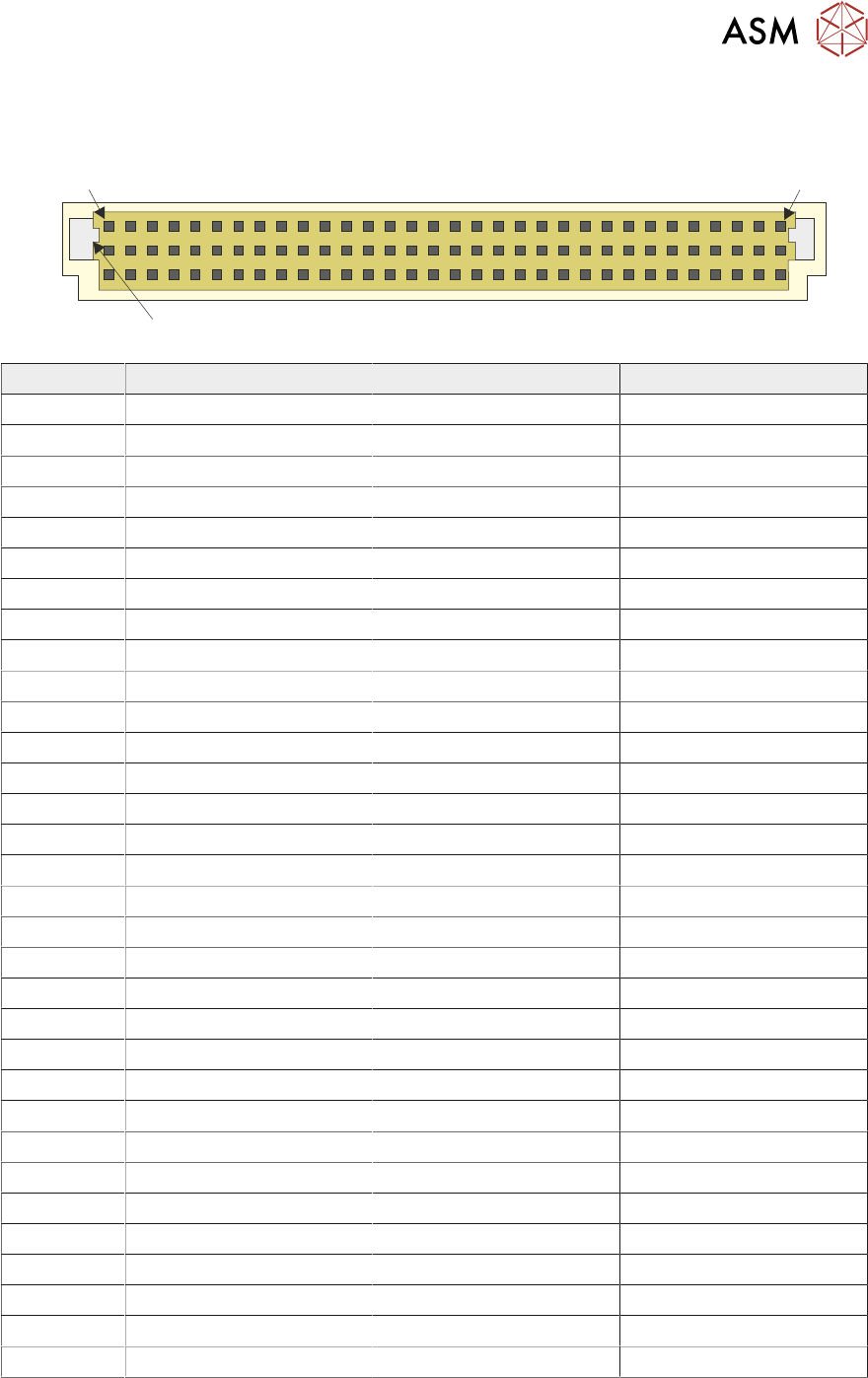

9.3.3.3 NextMove Interface Edge Connector
The edge connector connects the card to the backplane of the enclosure.
a
b
c
1 32
Keyway
Pin No. Row a Row b Row c
1 24V US 24V US N/C
2 24V SW 24V SW N/C
3 N/C N/C Error Out (NextMove)
4 DIN0 (NextMove) DIN0 (Machine) DOUT1 (NextMove)
5 DIN1 (NextMove) DIN1 (Machine) DOUT2 (NextMove)
6 DIN2 (NextMove) DIN2 (Machine) DOUT3 (NextMove)
7 DIN3 (NextMove) DIN3 (Machine) DOUT4 (NextMove)
8 DIN4 (NextMove) DIN4 (Machine) DOUT5 (NextMove)
9 DIN5 (NextMove) DIN5 (Machine) DOUT6 (NextMove)
10 DIN6 (NextMove) DIN6 (Machine) DOUT7 (NextMove)
11 DIN7 (NextMove) DIN7 (Machine) N/C
12 DIN8 (NextMove) DIN8 (Machine) +12V
13 DIN9 (NextMove) DIN9 (Machine) N/C
14 DIN10 (NextMove) DIN10 (Machine) -12V
15 DIN11 (NextMove) DIN11 (Machine) N/C
16 DIN12 (NextMove) DIN12 (Machine) +5.5V
17 DIN13 (NextMove) DIN13 (Machine) N/C
18 DIN14 (NextMove) DIN14 (Machine) DGND
19 DIN15 (NextMove) DIN15 (Machine) N/C
20 DIN16 (NextMove) DIN16 (Machine) N/C
21 DIN17 (NextMove) DIN17 (Machine) N/C
22 DIN18 (NextMove) DIN18 (Machine) N/C
23 DIN19 (NextMove) DIN19 (Machine) N/C
24 N/C N/C N/C
25 0V (24V US Return) 0V (24V US Return) N/C
26 0V (24V SW Return) 0V (24V SW Return) N/C
27 N/C E Stop Supply DOUT4 (Machine)
28 N/C DOUT1 (Machine) DOUT5 (Machine)
29 N/C DOUT2 (Machine) DOUT6 (Machine)
30 !DOUT3 (Machine) DOUT3 (Machine) DOUT7 (Machine)
31 N/C N/C N/C
32 N/C N/C N/C
