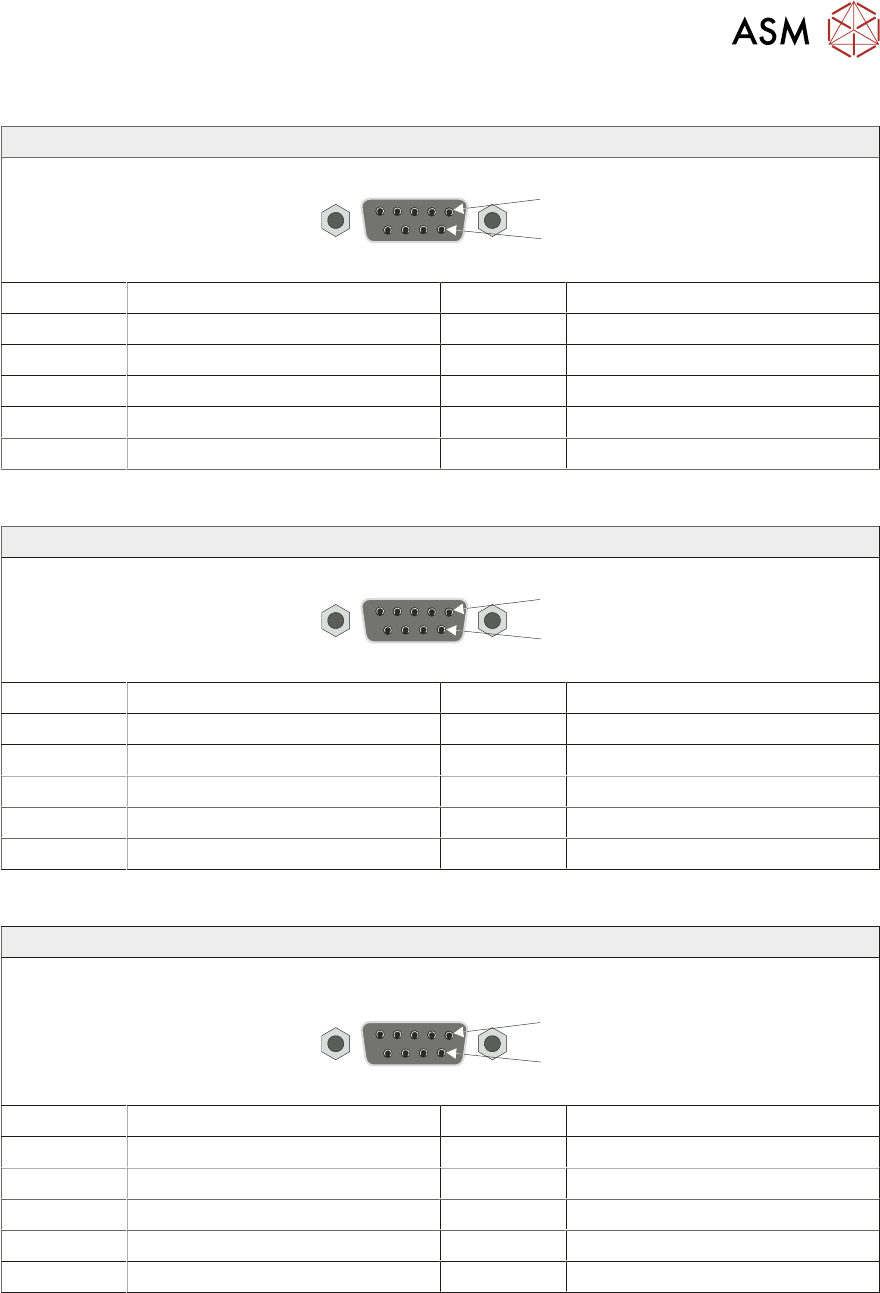

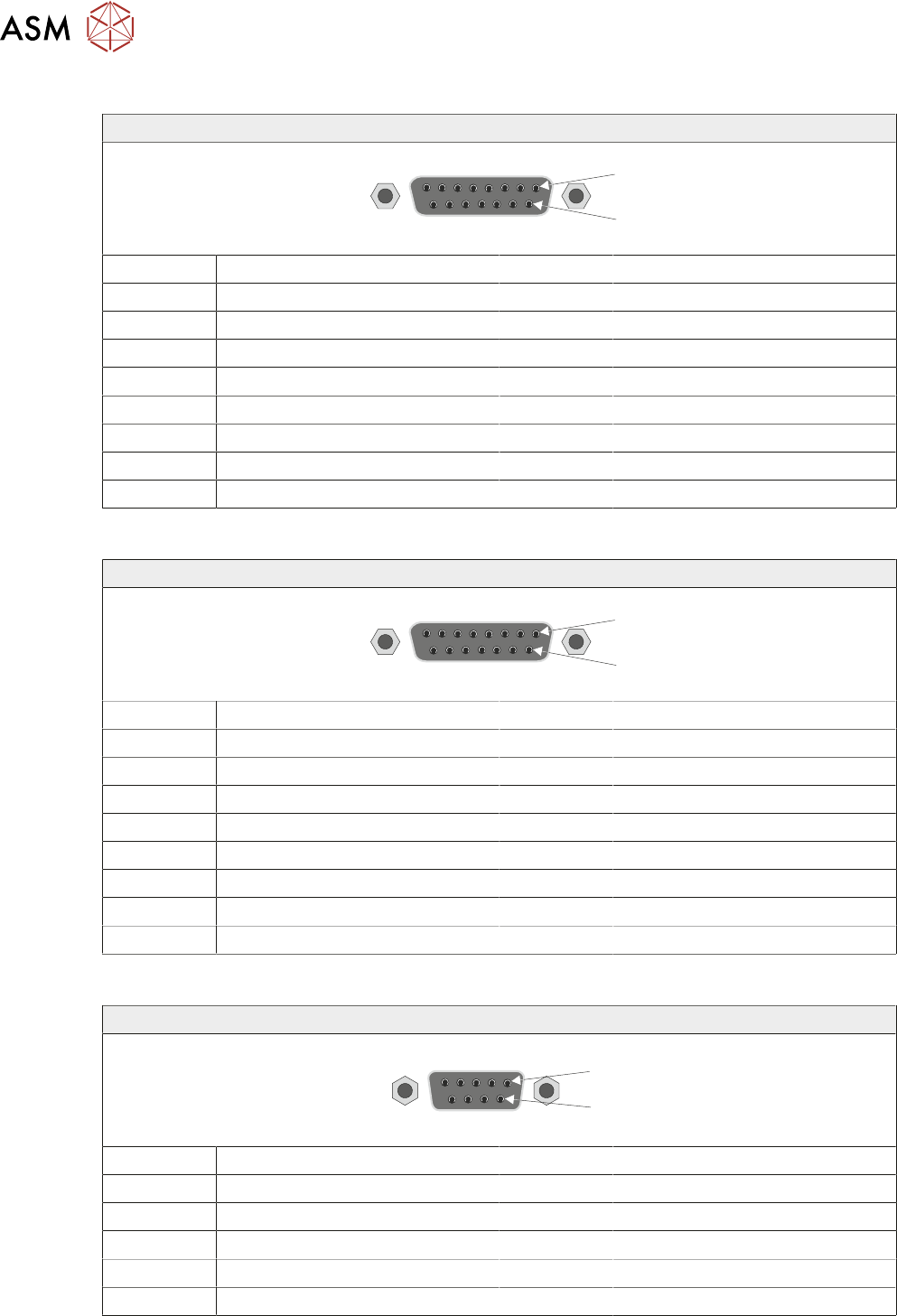

9 MACHINE CONTROL
9.3 M36 MACHINE CONTROL ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 113

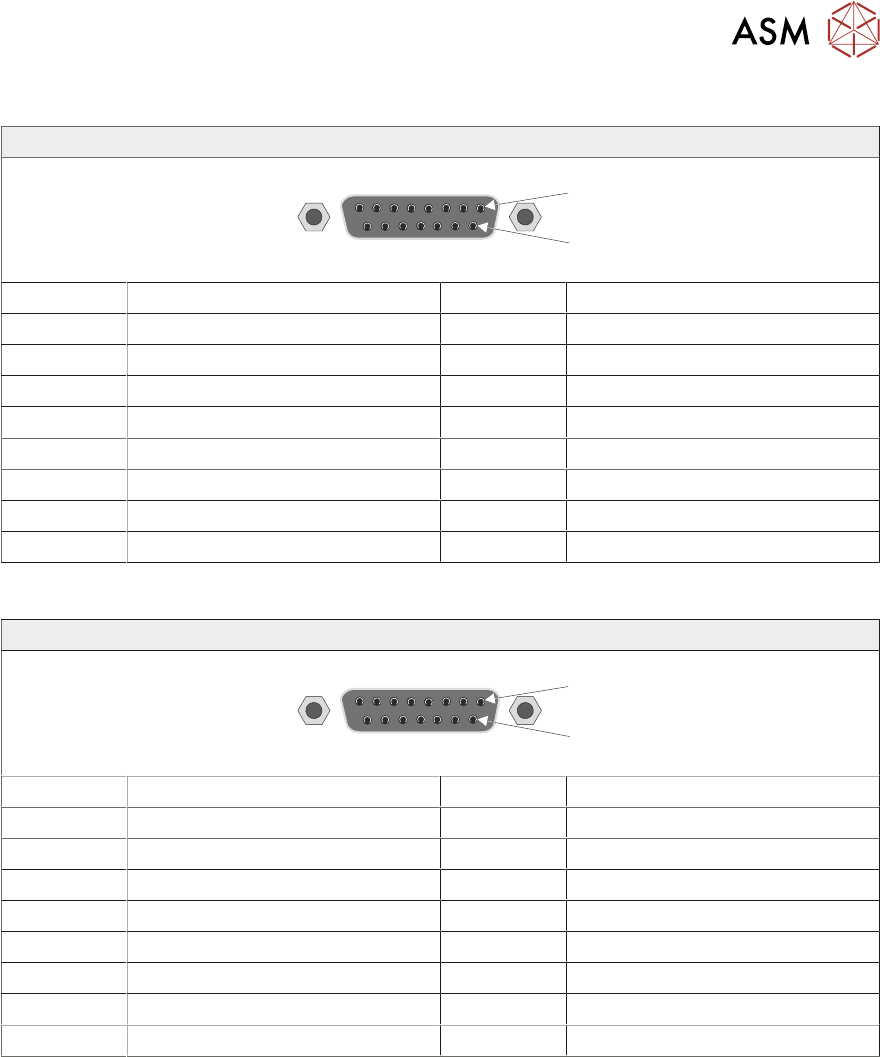

9.3.5.9 M36SK17
15 Way D Type Socket
9
1
Pin No Signal Pin No Signal
1 +12V 9 0V
2 Board At Left 10 +12V
3 0V 11 N/C
4 +12V 12 0V
5 Board At Right 13 N/C
6 0V 14 N/C
7 +12V 15 N/C
8 Rail Lifted Left
9.3.5.10 M36SK18
15 Way D Type Socket
9
1
Pin No Signal Pin No Signal
1 +12V 9 Belt Motor #1 0V
2 Rail Lifted Right 10 N/C
3 0V 11 Belt Motor #4 Enable
4 +12V 12 N/C
5 Belt Motor #1 Enable 13 Belt Motor #4 24V SW
6 0V 14 Belt Motor #4 Direction
7 Belt Motor #1 24V SW 15 Belt Motor #4 0V
8 Belt Motor #1 Direction
9 MACHINE CONTROL
9.3 M36 MACHINE CONTROL ENCLOSURE
114 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
9.3.5.11 M36SK19
15 Way D Type Socket
9
1
Pin No Signal Pin No Signal
1 +12V 9 0V
2 Spare Input 10 +12V
3 0V 11 Not Used
4 +12V 12 0V
5 Spare Input 13 N/C
6 0V 14 Spare Output
7 +12V 15 0V
8 Moving Rail Home
9.3.5.12 M36SK20
15 Way D Type Socket
9
1
Pin No Signal Pin No Signal
1 -12V 9 24V SW
2 -12V 10 24V SW
3 +5.5V 11 0V Return
4 +5.5V 12 0V Return
5 24V US 13 N/C
6 24V US 14 N/C
7 0V Return 15 N/C
8 0V Return
9.3.5.13 M36SK21
9 Way D Type Socket
1
6
Pin No Signal Pin No Signal
1 CH1 B- 6 CH2 A-
2 CH2 B- 7 CH1 A+
3 CH1 B+ 8 CH2 A+
4 CH2 B+ 9 N/C
5 CH1 A-
9 MACHINE CONTROL
9.3 M36 MACHINE CONTROL ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 115
9.3.5.14 M36SK22
9 Way D Type Socket
1
6
Pin No Signal Pin No Signal
1 CH2 B- 6 N/C
2 N/C 7 CH2 A+
3 CH2 B+ 8 N/C
4 N/C 9 N/C
5 CH2 A-
9.3.5.15 M36SK23
9 Way D Type Socket
1
6
Pin No Signal Pin No Signal
1 CH1 B- 6 N/C
2 N/C 7 CH1 A+
3 CH1 B+ 8 N/C
4 N/C 9 N/C
5 CH1 A-
9.3.5.16 M36SK24
9 Way D Type Socket
s
1
6
Pin No Signal Pin No Signal
1 CH2 B- 6 N/C
2 N/C 7 CH2 A+
3 CH2 B+ 8 N/C
4 N/C 9 N/C
5 CH2 A-
