9 MACHINE CONTROL 9.4 CAN BUS TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 125 9.4.4.5 N3SK4 6 Way Trident Socket 4 1 Pin No Signal Pin No Signal 1 Paste Height Laser (12V) 4 Paste Height Laser (24V) 2 Paste Roll Lo…
9 MACHINE CONTROL
9.4 CAN BUS
124 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
9.4.4.1 N3PL1
6 Way Trident Connector (with pins)
4
1
Pin No Signal Pin No Signal
1 24V US 4 0V
2 0V 5 12V
3 24V SW 6 0V
9.4.4.2 N3PL2
9 Way D Type Plug
1
6
Pin No Signal Pin No Signal
1 N/C 6 N/C
2 CAN_L 7 CAN_H
3 CAN_GND 8 N/C
4 N/C 9 N/C
5 N/C
9.4.4.3 N3PL3
9 Way D Type Plug
1
6
Pin No Signal Pin No Signal
1 N/C 6 N/C
2 CAN_L 7 CAN_H
3 CAN_GND 8 N/C
4 N/C 9 N/C
5 N/C
9.4.4.4 N3SK1
4 Way Trident Socket
1
Pin No Signal Pin No Signal
1 Spare Output 3 Spare Output
2 0V 4 0V
9 MACHINE CONTROL
9.4 CAN BUS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 125
9.4.4.5 N3SK4
6 Way Trident Socket
4
1
Pin No Signal Pin No Signal
1 Paste Height Laser (12V) 4 Paste Height Laser (24V)
2 Paste Roll Low 5 N/C
3 0V 6 0V
9.4.4.6 N3SK5
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +12V 3 0V
2 Screen Position
9.4.4.7 N3SK6
2 Way Trident Socket
1
Pin No Signal Pin No Signal
1 Spare Output 2 0V
9.4.4.8 N3SK7
6 Way Trident Socket
4
1
Pin No Signal Pin No Signal
1 +12V 4 +12V
2 Screen Cylinder Extended 5 Screen Cylinder Retracted
3 0V 6 0V
9 MACHINE CONTROL
9.4 CAN BUS
126 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019

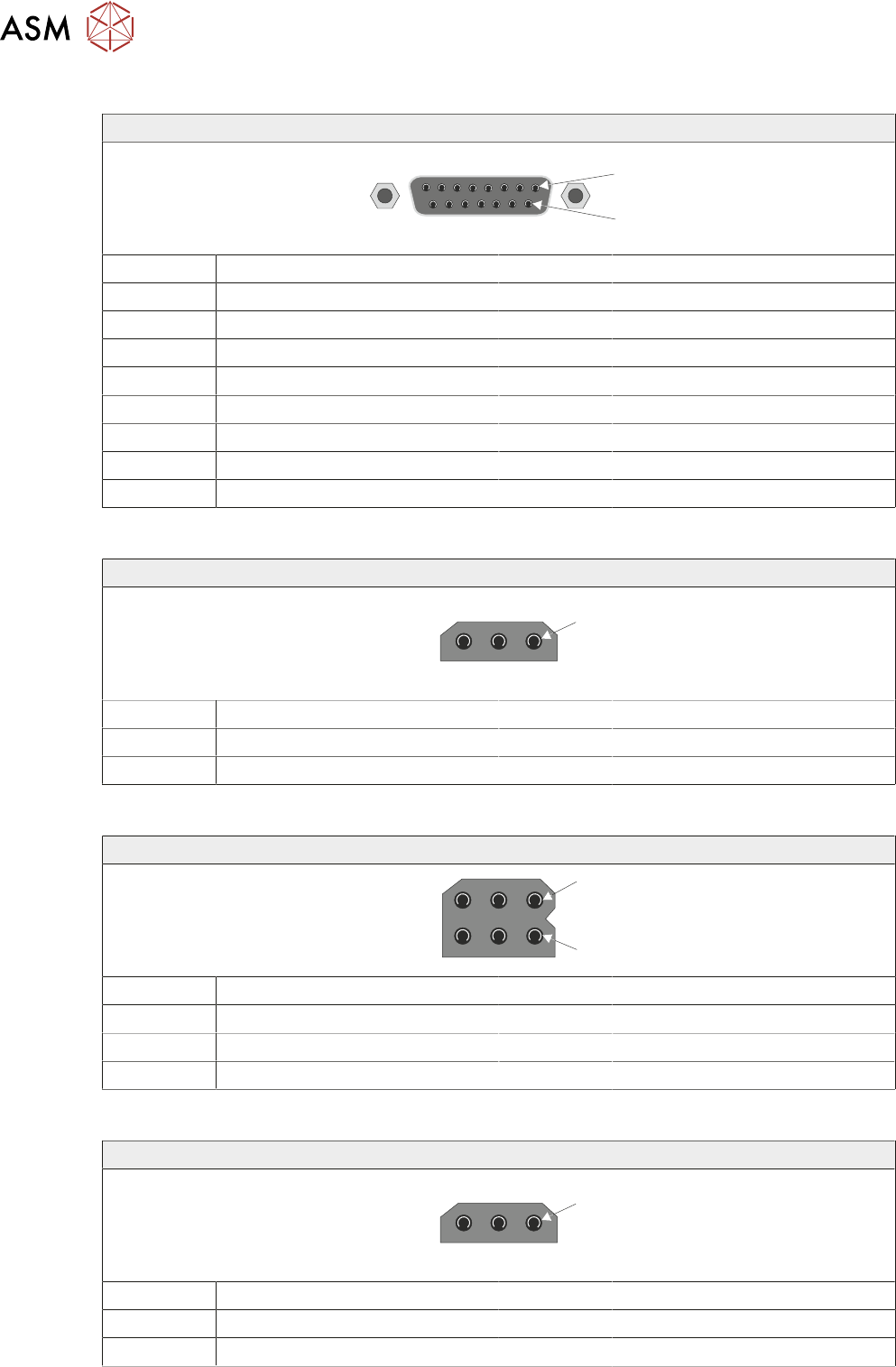

9.4.4.9 N3SK8
15 Way D Type Socket
9
1
Pin No Signal Pin No Signal
1 Spare Output 9 0V
2 Spare Output 10 0V
3 Spare Output 11 0V
4 Spare Output 12 0V
5 Stencil Actuator 13 0V
6 0V 14 0V
7 0V 15 0V
8 0V
9.4.4.10 N3SK9
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +12V 3 0V
2 Spare Input
9.4.4.11 N3SK10
6 Way Trident Socket
4
1
Pin No Signal Pin No Signal
1 +12V 4 +12V
2 Spare Input 5 Spare Input
3 0V 6 0V
9.4.4.12 N3SK11
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +12V 3 0V
2 Paste Level
