9 MACHINE CONTROL 9.4 CAN BUS 126 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 9.4.4.9 N3SK8 15 Way D Type Socket 9 1 Pin No Signal Pin No Signal 1 Spare Output 9 0V 2 Spare Output 10 0V 3 Spare Output 11 0V 4 Spare…
9 MACHINE CONTROL
9.4 CAN BUS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 125
9.4.4.5 N3SK4
6 Way Trident Socket
4
1
Pin No Signal Pin No Signal
1 Paste Height Laser (12V) 4 Paste Height Laser (24V)
2 Paste Roll Low 5 N/C
3 0V 6 0V
9.4.4.6 N3SK5
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +12V 3 0V
2 Screen Position
9.4.4.7 N3SK6
2 Way Trident Socket
1
Pin No Signal Pin No Signal
1 Spare Output 2 0V
9.4.4.8 N3SK7
6 Way Trident Socket
4
1
Pin No Signal Pin No Signal
1 +12V 4 +12V
2 Screen Cylinder Extended 5 Screen Cylinder Retracted
3 0V 6 0V
9 MACHINE CONTROL
9.4 CAN BUS
126 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
9.4.4.9 N3SK8
15 Way D Type Socket
9
1
Pin No Signal Pin No Signal
1 Spare Output 9 0V
2 Spare Output 10 0V
3 Spare Output 11 0V
4 Spare Output 12 0V
5 Stencil Actuator 13 0V
6 0V 14 0V
7 0V 15 0V
8 0V
9.4.4.10 N3SK9
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +12V 3 0V
2 Spare Input
9.4.4.11 N3SK10
6 Way Trident Socket
4
1
Pin No Signal Pin No Signal
1 +12V 4 +12V
2 Spare Input 5 Spare Input
3 0V 6 0V
9.4.4.12 N3SK11
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +12V 3 0V
2 Paste Level
9 MACHINE CONTROL
9.4 CAN BUS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 127

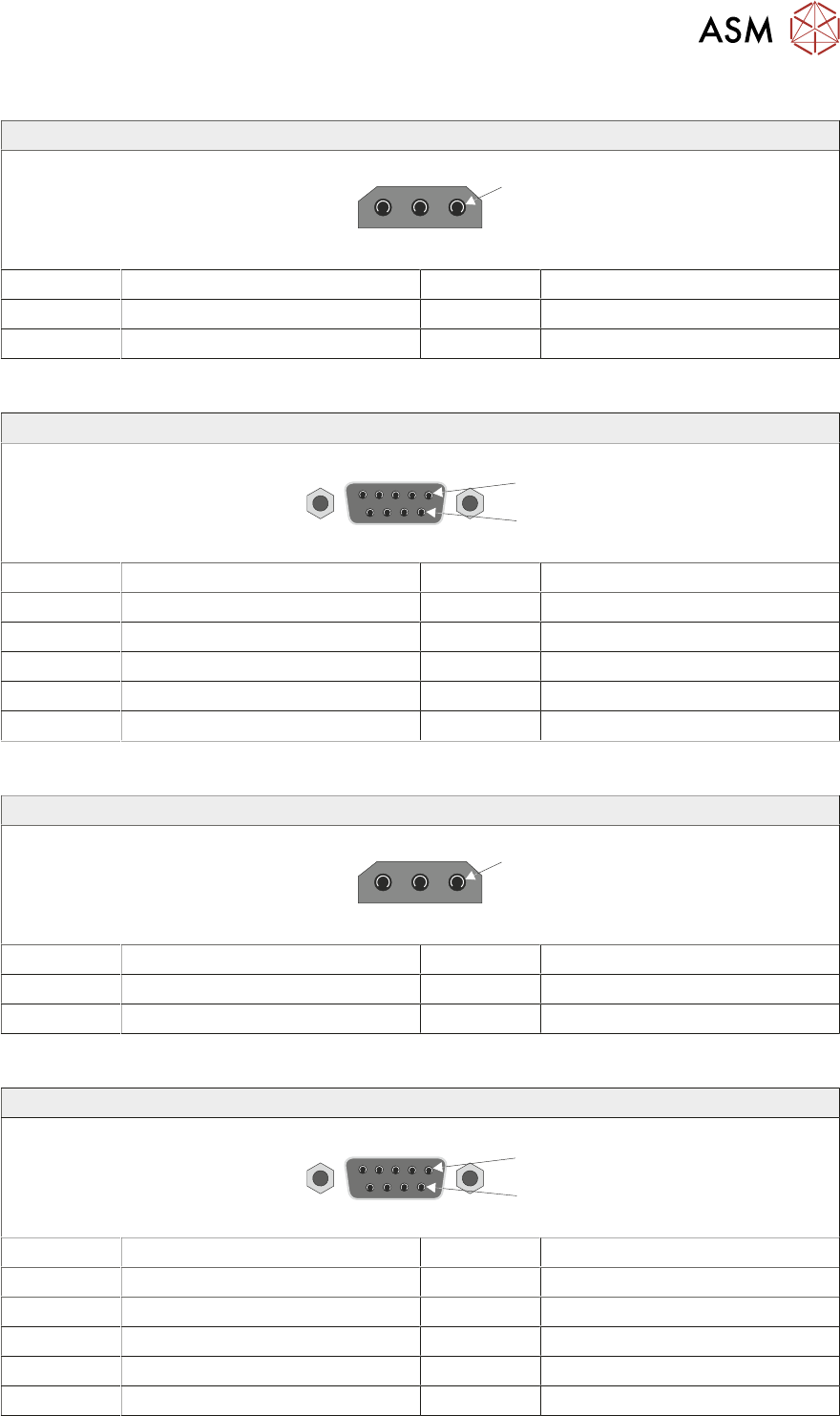

9.4.4.13 N3SK12
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +12V 3 0V
2 Spare Input
9.4.4.14 N3SK13
9 Way D Type Socket
1
6
Pin No Signal Pin No Signal
1 24V US 6 Spare Input
2 0V 7 24V US
3 Spare Output 8 0V
4 12V 9 Spare Input
5 0V
9.4.4.15 N3SK14
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +12V 3 0V
2 Spare Input
9.4.4.16 N3SK15
9 Way D Type Socket
1
6
Pin No Signal Pin No Signal
1 I DAT 6 5.5V
2 0V 7 I CLOCK
3 DAT_INT 8 IO_B
4 VPP 9 0V
5 IO_C
