9 MACHINE CONTROL 9.4 CAN BUS TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 137 9.4.7.3 PL2 9 Way D Type Plug 1 6 Pin No Signal Pin No Signal 1 N/C 6 N/C 2 CAN_L 7 CAN_H 3 CAN_GND 8 N/C 4 N/C 9 N/C 5 N/C 9.4.7.4 SK3 …
9 MACHINE CONTROL
9.4 CAN BUS
136 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
The following motors are fitted to all machines:
●
Servo Node 6 - Rising Table Motor
●
Servo Node 7 - Print Carriage Motor
●
Servo Node 8 - Camera X Motor
●
Servo Node 9 - Camera Y Motor
9.4.7 Servo Node 6 (Rising Table Motor)
1
2
3
4
1 SK4 Supply Out 3 PL2 CAN Out
2 SK3 CAN In 4 PL1 Supply In
9.4.7.1 PL1
4 Way Trident Plug
1
Pin No Signal Pin No Signal
1 +42V SW 3 +24V US
2 0V 4 0V
9.4.7.2 SK4
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +24V 3 0V
2 Signal Out
9 MACHINE CONTROL
9.4 CAN BUS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 137

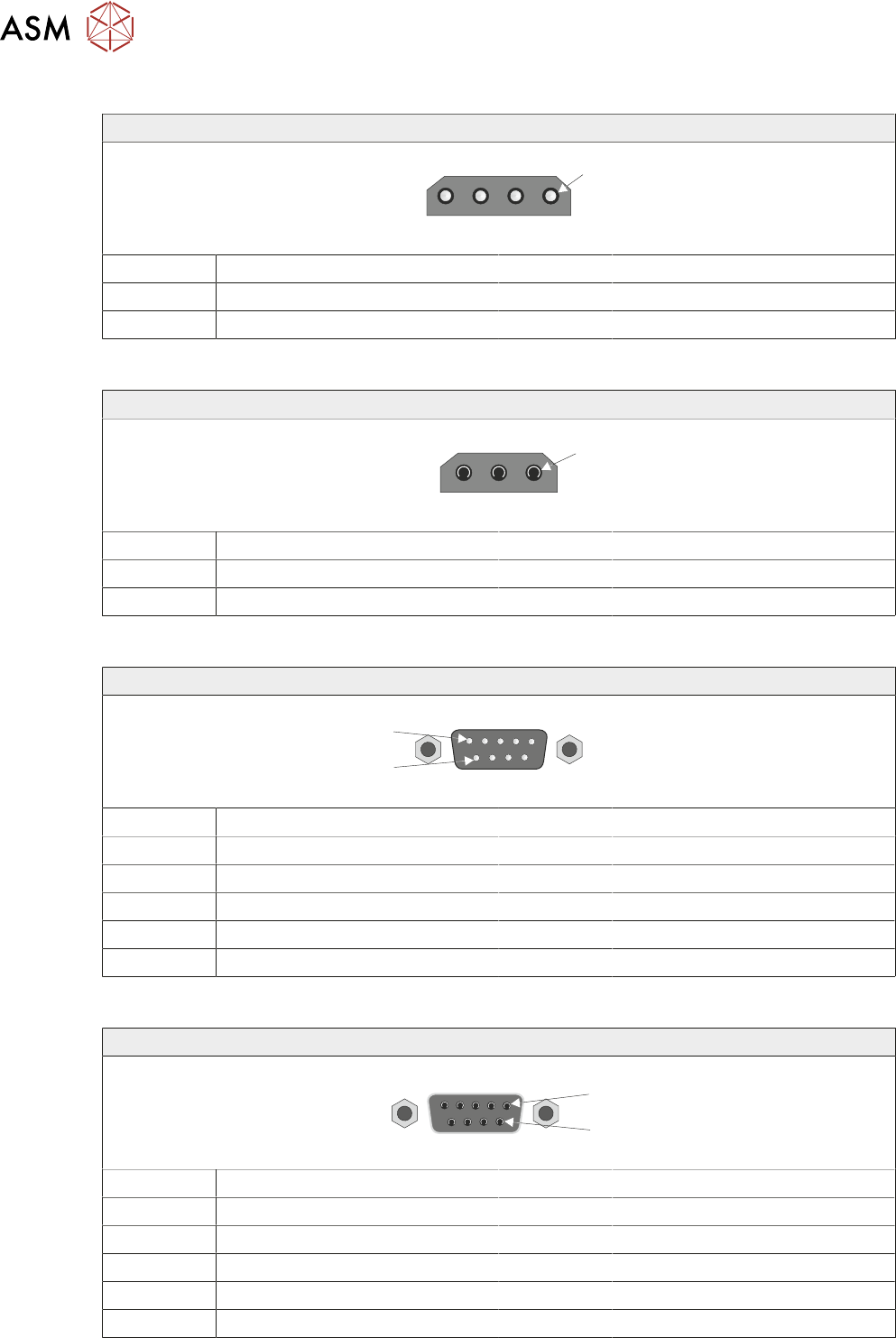

9.4.7.3 PL2
9 Way D Type Plug
1
6
Pin No Signal Pin No Signal
1 N/C 6 N/C
2 CAN_L 7 CAN_H
3 CAN_GND 8 N/C
4 N/C 9 N/C
5 N/C
9.4.7.4 SK3
9 Way D Type Socket
1
6
Pin No Signal Pin No Signal
1 N/C 6 0V
2 CAN_L 7 CAN_H
3 N/C 8 N/C
4 N/C 9 +24V
5 N/C
9.4.8 Servo Node 7 (Print Carriage Motor)
1
2
3
4
1 SK1 Supply Out 3 PL3 CAN Out
2 SK4 CAN In 4 PL2 Supply In
9 MACHINE CONTROL
9.4 CAN BUS
138 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
9.4.8.1 PL2
4 Way Trident Plug
1
Pin No Signal Pin No Signal
1 +42V SW 3 +24V US
2 0V 4 0V
9.4.8.2 SK1
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +24V 3 0V
2 Signal Out
9.4.8.3 PL3
9 Way D Type Plug
1
6
Pin No Signal Pin No Signal
1 N/C 6 N/C
2 CAN_L 7 CAN_H
3 CAN_GND 8 N/C
4 N/C 9 N/C
5 N/C
9.4.8.4 SK4
9 Way D Type Socket
1
6
Pin No Signal Pin No Signal
1 N/C 6 0V
2 CAN_L 7 CAN_H
3 CAN_GND 8 N/C
4 N/C 9 N/C
5 N/C
