15 BOARD STOP
15.6 ADJUSTMENTS AND SETTINGS
204 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019

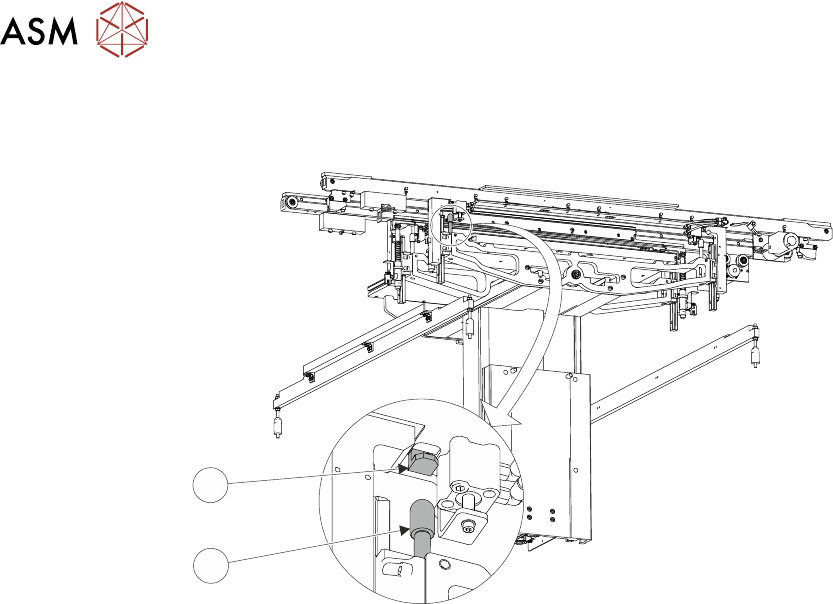

► Drive the table down so that the gap between the top of the rail height adjuster (1) and the
striker plate (2) is the same as the Under Clearance parameter noted previously.
1
2
► Open the front printhead cover.
► Position the remote board stop assembly on the base clamp so that the board stop abuts the
board.
► Tighten the four M5 cap head screws using a 5mm Allen key.
► Close the front printhead cover.
► Press the System button.
► Select Exit.
► Use Next or Previous to highlight Rail System.
► Select Select Module. The board clamps are released.
► Open the front printhead cover.
► Move the board back to the board stop and set the height of the board stop to approximately
2mm above the board.
► Adjust the setting of the board at stop sensor, 15.6.3.1 "Board At Stop Sensor" [}204] refers.
15.6.3.1 Board At Stop Sensor
This adjustment sets the sensitivity of the board at stop sensor.
► Close the front printhead cover.
► Press the System button.
► Select Continue.
► Select Exit.
► Use Next or Previous to highlight Rising Table.
► Select Select Module.
► Use Next or Previous to highlight Raise Table To Transport Height.
► Select Run Diagnost.
► Open the front printhead cover.
15 BOARD STOP
15.6 ADJUSTMENTS AND SETTINGS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 205
► Move the board to cover the board at stop sensor (1).
1
► If the red LED (2) on the sensor (3) is illuminated, turn the sensitivity/focal length adjustment
(1) anti-clockwise using a plastic trimmer tool until the LED extinguishes (or the LED is flicker-
ing).
View on Arrow
3
1
2
► Turn the sensitivity/focal length adjustment (1) very slowly in a clockwise direction until the in-
stant the LED (2) is fully illuminated (the LED may flicker before fully illuminating).
1 2 3
NOTE
The final set position can be at any angle.
► Turn the control (1) in a clockwise direction approximately 10 to 20 degrees beyond the point
at which the LED (2) is illuminated.
► Remove the board from the machine.
► Refit the safety cover.
► Refit the screen.
► Close the front printhead cover.
► Press the System button.
► Select Exit.
► Select Exit.
► Select Back.
15 BOARD STOP
15.6 ADJUSTMENTS AND SETTINGS
206 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
15.6.4 Camera to Remote Board Stop - LHS Configuration
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
WARNING
COMPRESSED AIR. COMPRESSED AIR SHOULD NEVER IMPINGE UPON THE
BODY. PORTS, PIPES, ETC MUST NEVER BE BLOCKED BY HAND. BEFORE
CONNECTING OR DISCONNECTING ANY PNEUMATIC COMPONENTS, ENSURE
THE COMPRESSED AIR SUPPLY HAS BEEN DISSIPATED AND DISCONNECTED
FROM THE MACHINE.
This procedure details the changes required to convert from using the camera mounted board stop
to the remote board stop mounted on the left hand side of the rising table.
15.6.4.1 Preparation
► Select Open Cover Commands.
► Select Carriage To Rear.
► Select Unload Screen.
► Open the front printhead cover.
► Remove the screen from the machine.
► Close the front printhead cover.
► Press the System button.
► Select Back.
► Select Maintenance.
► Select Machine Setup.
► Select Options.
► Select Remote Board Stop.
► Select Fitted.
► Select Accept.
► Select Back.
► Select Back.
► Select Back.
► Select Setup Product.
► Select Load Product.
► Select the product file to be used with the remote board stop.
NOTE
The selected product file must have a board width of 130mm or greater.
► Select Load.
► Select Back.
► Select Back.
