C7SM3114 Connect the hose to the special grease nozzle and inject grease into the NZ-axis LM block. NZ-axis LM block Special grease nozzle Hose ADGPJ818 ✽ Special grease nozzle for the NZ-axis LM block Part 3 Chapter 2 L…
2.5 Lubricating the Cam Box
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Caution: Do not lubricate the shaft on the air
cylinder.
Note: Lubrication of (23) requires a special grease nozzle.
Refer to the next page for details.
C7SM3015b
ST2, 8, 9, 10 rod
(17)
(17)
(21)
(20)
(22)
(17)
(17)
(17)
(17)
(24)
(19)
(18)
(18)
(19)
(23)
Shaft
Daphne Exponex No. 2
Daphne Exponex No. 2
Daphne Exponex No. 2
Daphne Exponex No. 2
Daphne Exponex No. 2
AFC grease
T005b
Lubrication points
Schedule
Types of lubricant
17
Monthly
Cam
18
Monthly
Cam lever pivot (7 points)
19
Monthly
Cam lever bearing
20
Monthly
NZ-axis ball screw
21
Every 3 months
NZ-axis LM rail
22
Every 3 months
Monthly
NZ-axis holder
NZ-axis LM block
23
24
Every 3 months
-axis connecting pin
Daphne Exponex No. 2
AFC grease
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-9 CP-7 series Mechanical Reference
C7SM3114

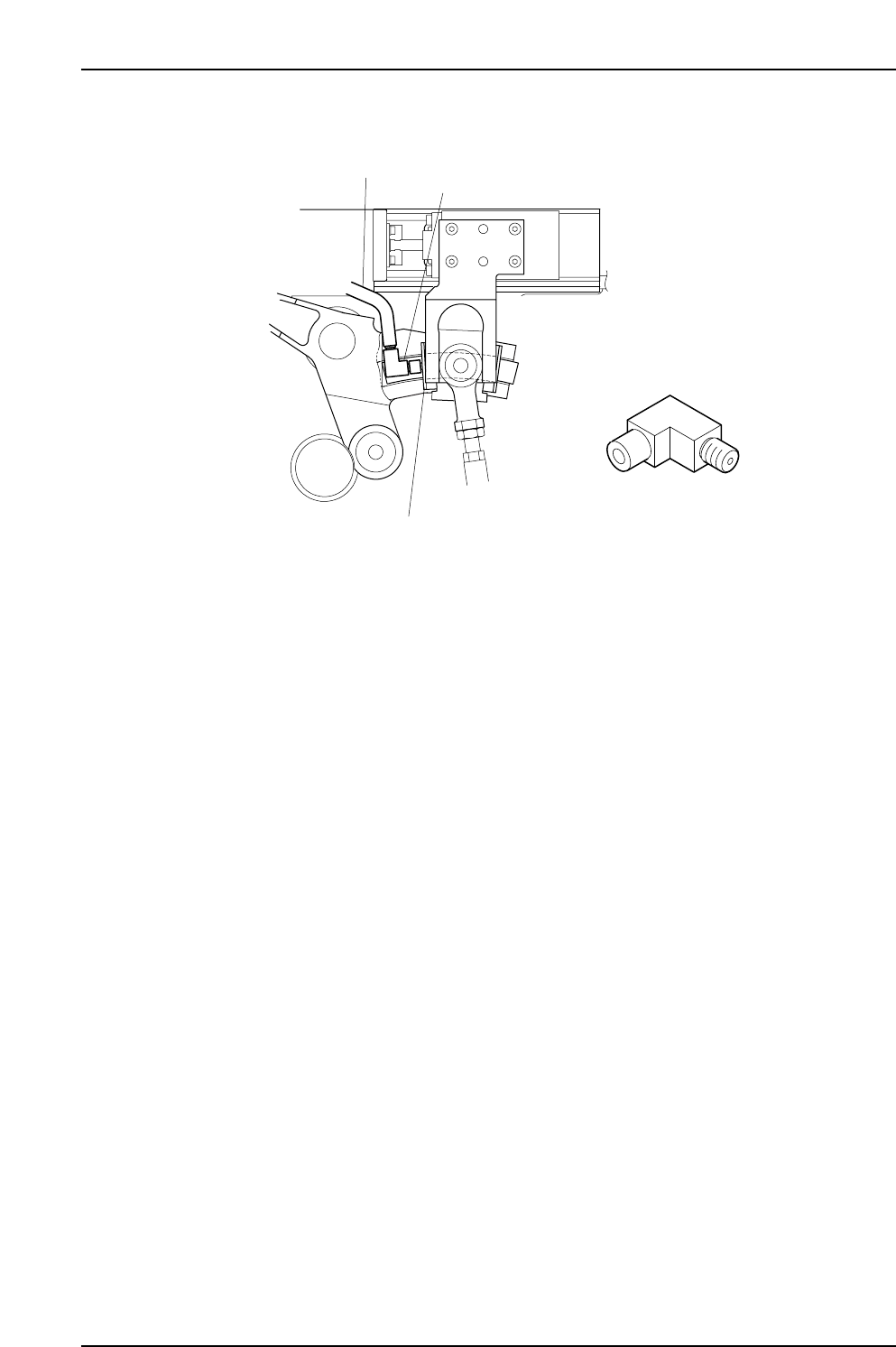

Connect the hose to the special grease nozzle and inject
grease into the NZ-axis LM block.
NZ-axis LM block
Special grease nozzle
Hose
ADGPJ818✽
Special grease nozzle for
the NZ-axis LM block
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-10 CP-7 series Mechanical Reference
2.6 Lubricating the Tape Cutter
Arrow marks in the illustration indicate lubrication points.
C7SM3016b
(27)
(27)
1 ST
(25)
(26)
(25)
(25)
(25)
(27)
Note: Apply AFC grease to the outside surface
of the thrust bearing.
Disassembly is not required.
Daphne Exponex No. 2
Daphne Exponex No. 2
T006b
Lubrication points
Schedule
Types of lubricant
25
26
27
Weekly
Monthly
Weekly
Movable cutter
Cam follower
AFC grease
Thrust bearing
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-11 CP-7 series Mechanical Reference
