2.6 Lubricating the Tape Cutter

Arrow marks in the illustration indicate lubrication points.

C7SM3016b

(27)

1 ST

(25)

(26)

(25)

(27)

Note: Apply AFC grease to the outside surface

of the thrust bearing.

Disassembly is not required.

Daphne Exponex No. 2

T006b

Lubrication points

Schedule

Types of lubricant

Weekly

Monthly

Weekly

Movable cutter

Cam follower

AFC grease

Thrust bearing

Part 3 Chapter 2 Lubrication

Edition 2.9 3-2-11 CP-7 series Mechanical Reference

2.7 Lubricating the Rod Ends

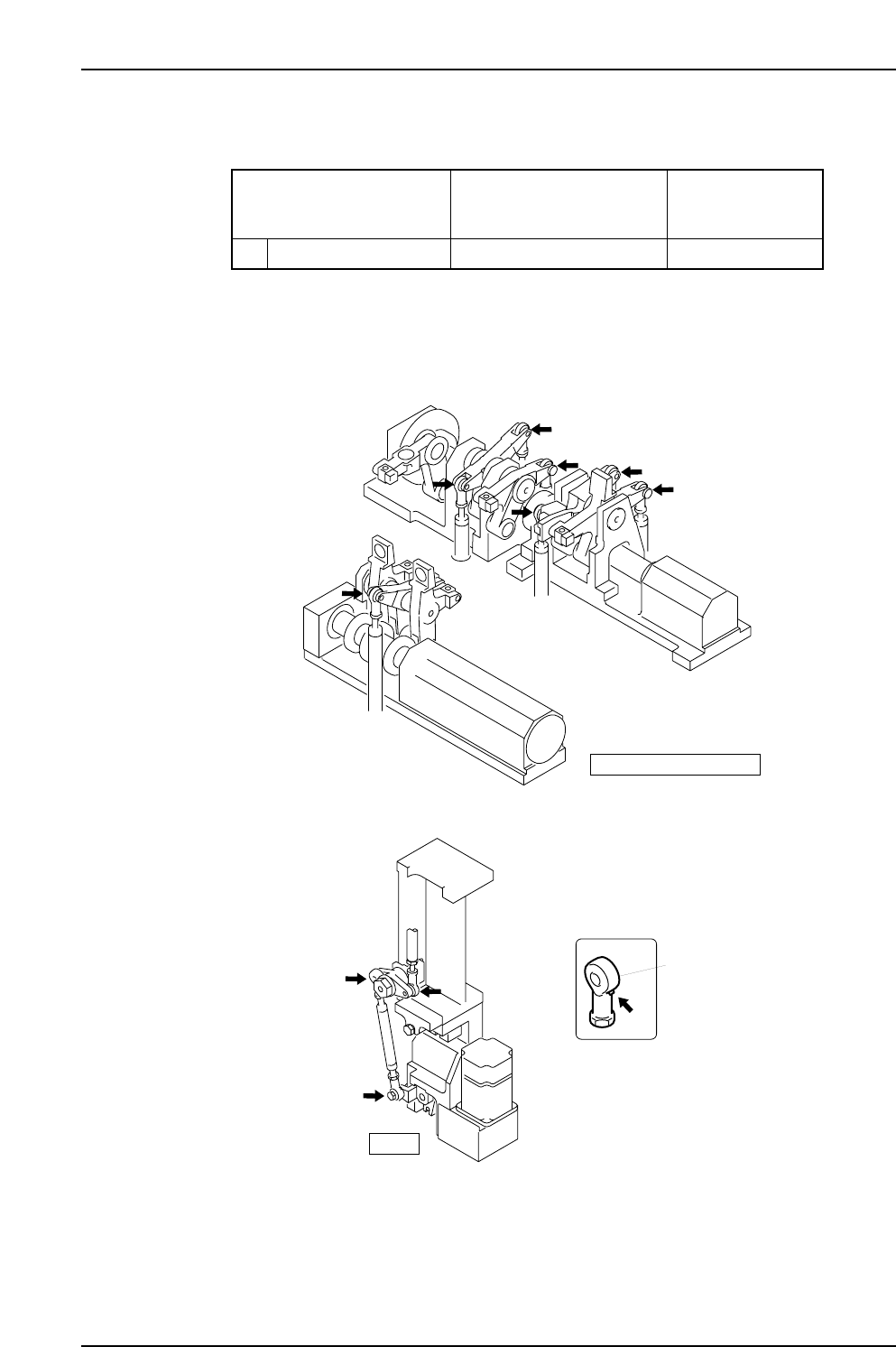

Arrow marks in the illustration indicate lubrication points.

Black arrows indicate points where a grease gun is required.

C7SM3017a

(28)

Rod end

(with a grease fitting)

14 ST

Inside of the cam box

T007a

Lubrication points

Schedule

Types of lubricant

Every 3 months

Rod end

Daphne Exponex No. 2

Part 3 Chapter 2 Lubrication

Edition 2.9 3-2-12 CP-7 series Mechanical Reference

2.8 Lubricating the ST3 Nozzle Clutch LM Blocks

Procedure

1. Remove the pin and nut from the lower rod end joint.

2. Connect the special nozzle and 1,000 mm hose to the grease gun.

3. Lubricate the upper LM block.

Insert the nozzle into the grease port on the top of the LM block and raise the

guide rail. Inject the grease with the nozzle held between the guide rail and

4. Lubricate the lower LM block.

Use the same procedure to inject grease into the port on the bottom of the lower

LM block.

When finished, reconnect the rod end joint.

Lowered position

Rod end joint

LM block

Stopper

LM block

Guide rail

ST3 nozzle clutch

LM block nozzle

Tube

DGPJ054✽

(29)

C7SM3116

(Internal diameter of

4 mm × 1,000 mm)

T019

Lubrication points

Schedule

Types of lubricant

Every 3 months

LM block

AFC grease

Part 3 Chapter 2 Lubrication
