3.2 Replacing the Fluorescent Nozzle Stickers Point Fluorescent nozzle stickers which become soiled and cause vision processing errors must be replaced. Procedure 1. Wash hands before replacing the sticker. 2. Use a cutt…
3. Replacing Consumable Parts
3.1 Replacing Nozzles
Point
A nozzle which becomes bent, deformed, or clogged, can cause part pick-up errors and
must be replaced. When replacing a nozzle, use care to avoid losing its internal spring.
Procedure
WARNING
Be sure to turn the main power off before performing this
procedure.

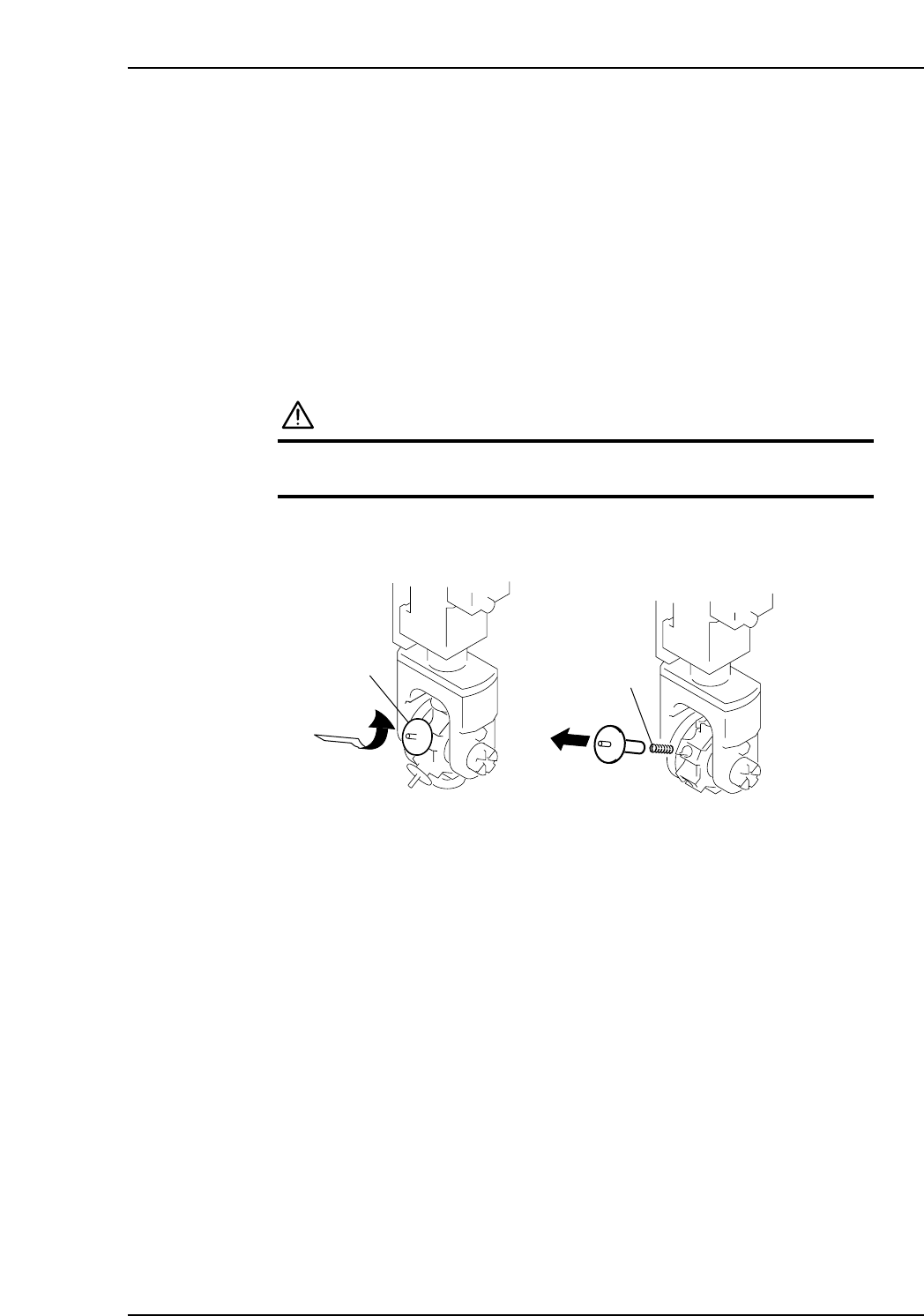

1. Remove the nozzle and spring as shown in the figure below.
Caution:
1. When removing the nozzle, take care not to lose the internal spring. Also check that
the spring is not left within the nozzle holder.
2. To avoid nozzle bend, do not hold the nozzle at the tip during removal.
2. Reverse the removal procedure to attach a new nozzle.
Press and turn
Remove slowly
Nozzle
Spring
C7SM3050a
Part 3 Chapter 3 Replacing Consumable Parts
Edition 2.7 3-3-1 CP-7 series Mechanical Reference
3.2 Replacing the Fluorescent Nozzle Stickers
Point
Fluorescent nozzle stickers which become soiled and cause vision processing errors must
be replaced.
Procedure
1. Wash hands before replacing the sticker.
2. Use a cutter to peel (from outer edge) the old sticker off the nozzle disk.
3. Use a cloth to wipe any residual adhesive off the disk.
4. Verify that the new sticker is not soiled or damaged.
5. Peel the backing off the new sticker, and punch the nozzle tip through from the
fluorescent side.
Note: Punching the nozzle tip through from the adhesive side will destroy the fluorescent
coating around the hole.
6. Align the nozzle and sticker centers, and push the sticker into place using the jig.
Be sure that there is no gap between the nozzle disk and the sticker.
Note: Make sure that the sticker is attached firmly to the nozzle.
Attached neatly without lifting.
C7SM3028
Nozzle seal
Nozzle seal
Jig ( DCPJ0460 )
Jig
( ADCPJ8240 )
C7SM3051a
Part 3 Chapter 3 Replacing Consumable Parts
Edition 2.7 3-3-2 CP-7 series Mechanical Reference
7. Use a cutter to trim off any of the sticker which protrudes beyond the disk.
8. Remove any of the adhesive which may have adhered to the nozzle tube.
Nozzle and fluorescent sticker drawing numbers
ADCPH751✽
ADCPH769✽
ADCPH752✽
ADCPH753✽
ADCPH754✽
ADCPH955✽
ADCPH956✽
ADCPH957✽
ADCPH958✽
ADCPH770✽
ADCPH971✽
ADCPH959✽
ADCPH961✽
ADCPH963✽
ADCPH965✽
ADCPH960✽
ADCPH962✽
ADCPH964✽
ADCPH966✽
ADCPH968✽
θ8
θ8
θ8
θ8
θ8
θ16
θ16
θ16
θ16
θ8
θ16
16x16
16x16
16x16
16x16
16x16
16x16
16x16
16x16
21x21
DCPH851✽
DCPH851✽
DCPH852✽
DCPH853✽
DCPH854✽
DCPH855✽
WPH820✽
WPH821✽
DCPH856✽
DCPH854✽
WPH820✽
DCPH857✽
DCPH858✽
DCPH859✽
DCPH860✽
DCPH881✽
DCPH882✽
DCPH883✽
DCPH884✽
DCPH885✽
T050a
Nozzle SizeNozzle shape
Round
Round
Round
Melf
Nozzle Assy
Dwg. No.
Disk Size
Fluorescent Seal
Dwg. No.
θ0.4 ( R08-004 )
θ0.4 ( R08-004 )
Short
θ0.7 ( R08-007 )
θ1.0 ( R08-010 )
θ1.3 ( R08-013 )
θ1.8 ( R16-018 )
θ2.5 ( R16-025 )
θ3.7 ( R16-037 )
θ5.0 ( R16-050 )
θ1.3 ( M08-013 )
θ2.5 ( M16-025 )
θ1.8 ( S16-018 )
θ2.5 ( S16-025 )
θ3.7 ( S16-037 )
θ5.0 ( S16-050 )
θ1.8 ( B16-018 )
θ2.5 ( B16-025 )
θ3.7 ( B16-037 )
θ5.0 ( B16-050 )
θ5.0 ( B21-050 )
Part 3 Chapter 3 Replacing Consumable Parts
Edition 2.7 3-3-3 CP-7 series Mechanical Reference
