3.2 Replacing the Fluorescent Nozzle Stickers

Point

Fluorescent nozzle stickers which become soiled and cause vision processing errors must

be replaced.

Procedure

1. Wash hands before replacing the sticker.

2. Use a cutter to peel (from outer edge) the old sticker off the nozzle disk.

3. Use a cloth to wipe any residual adhesive off the disk.

4. Verify that the new sticker is not soiled or damaged.

5. Peel the backing off the new sticker, and punch the nozzle tip through from the

fluorescent side.

Note: Punching the nozzle tip through from the adhesive side will destroy the fluorescent

coating around the hole.

6. Align the nozzle and sticker centers, and push the sticker into place using the jig.

Be sure that there is no gap between the nozzle disk and the sticker.

Note: Make sure that the sticker is attached firmly to the nozzle.

Attached neatly without lifting.

C7SM3028

Nozzle seal

Jig ( DCPJ0460 )

Jig

( ADCPJ8240 )

C7SM3051a

Part 3 Chapter 3 Replacing Consumable Parts

Edition 2.7 3-3-2 CP-7 series Mechanical Reference

7. Use a cutter to trim off any of the sticker which protrudes beyond the disk.

8. Remove any of the adhesive which may have adhered to the nozzle tube.

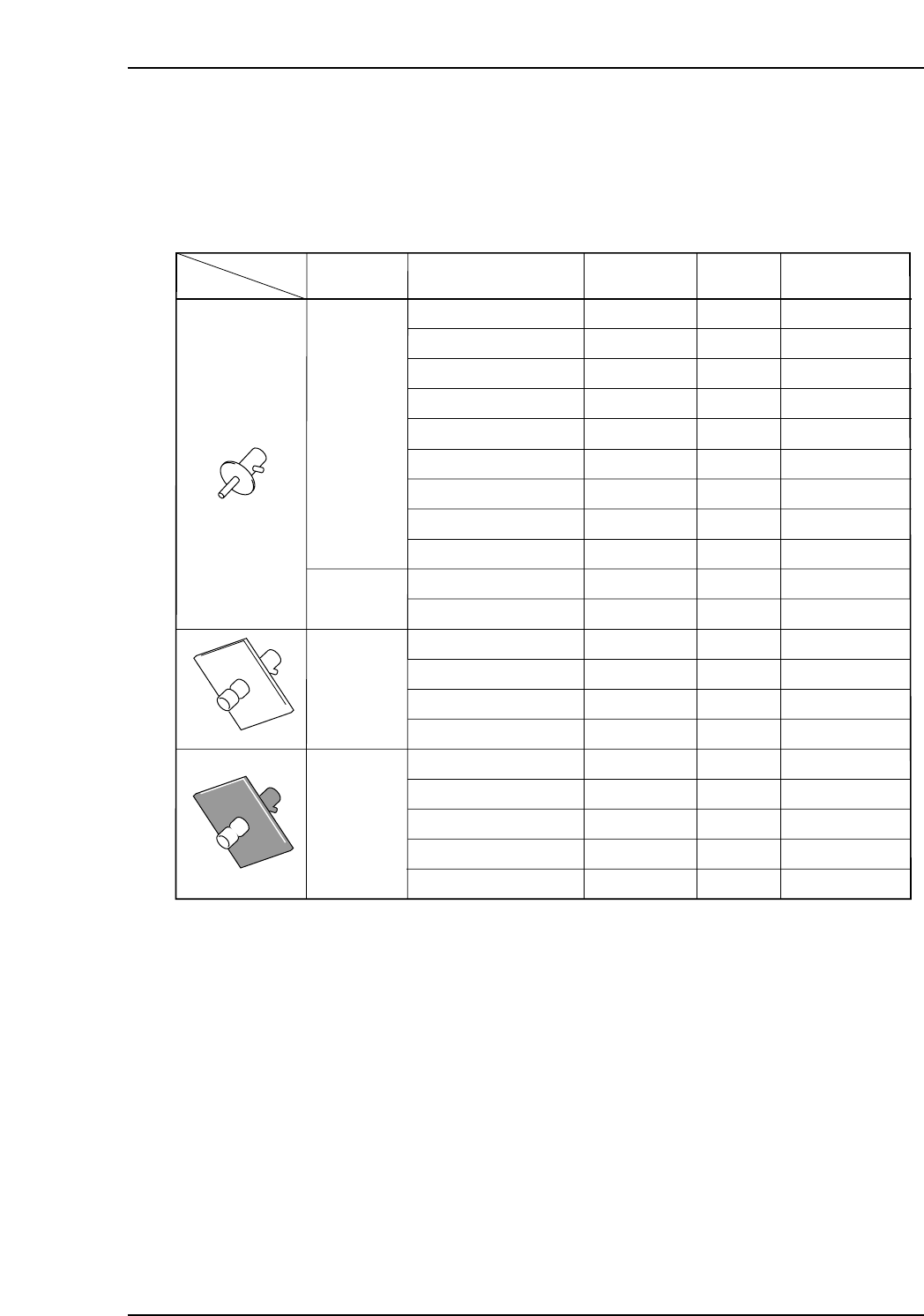

Nozzle and fluorescent sticker drawing numbers

ADCPH751✽

ADCPH769✽

ADCPH752✽

ADCPH753✽

ADCPH754✽

ADCPH955✽

ADCPH956✽

ADCPH957✽

ADCPH958✽

ADCPH770✽

ADCPH971✽

ADCPH959✽

ADCPH961✽

ADCPH963✽

ADCPH965✽

ADCPH960✽

ADCPH962✽

ADCPH964✽

ADCPH966✽

ADCPH968✽

θ8

θ16

θ8

θ16

16x16

21x21

DCPH851✽

DCPH852✽

DCPH853✽

DCPH854✽

DCPH855✽

WPH820✽

WPH821✽

DCPH856✽

DCPH854✽

WPH820✽

DCPH857✽

DCPH858✽

DCPH859✽

DCPH860✽

DCPH881✽

DCPH882✽

DCPH883✽

DCPH884✽

DCPH885✽

T050a

Nozzle SizeNozzle shape

Round

Melf

Nozzle Assy

Dwg. No.

Disk Size

Fluorescent Seal

Dwg. No.

θ0.4 ( R08-004 )

Short

θ0.7 ( R08-007 )

θ1.0 ( R08-010 )

θ1.3 ( R08-013 )

θ1.8 ( R16-018 )

θ2.5 ( R16-025 )

θ3.7 ( R16-037 )

θ5.0 ( R16-050 )

θ1.3 ( M08-013 )

θ2.5 ( M16-025 )

θ1.8 ( S16-018 )

θ2.5 ( S16-025 )

θ3.7 ( S16-037 )

θ5.0 ( S16-050 )

θ1.8 ( B16-018 )

θ2.5 ( B16-025 )

θ3.7 ( B16-037 )

θ5.0 ( B16-050 )

θ5.0 ( B21-050 )

Part 3 Chapter 3 Replacing Consumable Parts

Edition 2.7 3-3-3 CP-7 series Mechanical Reference

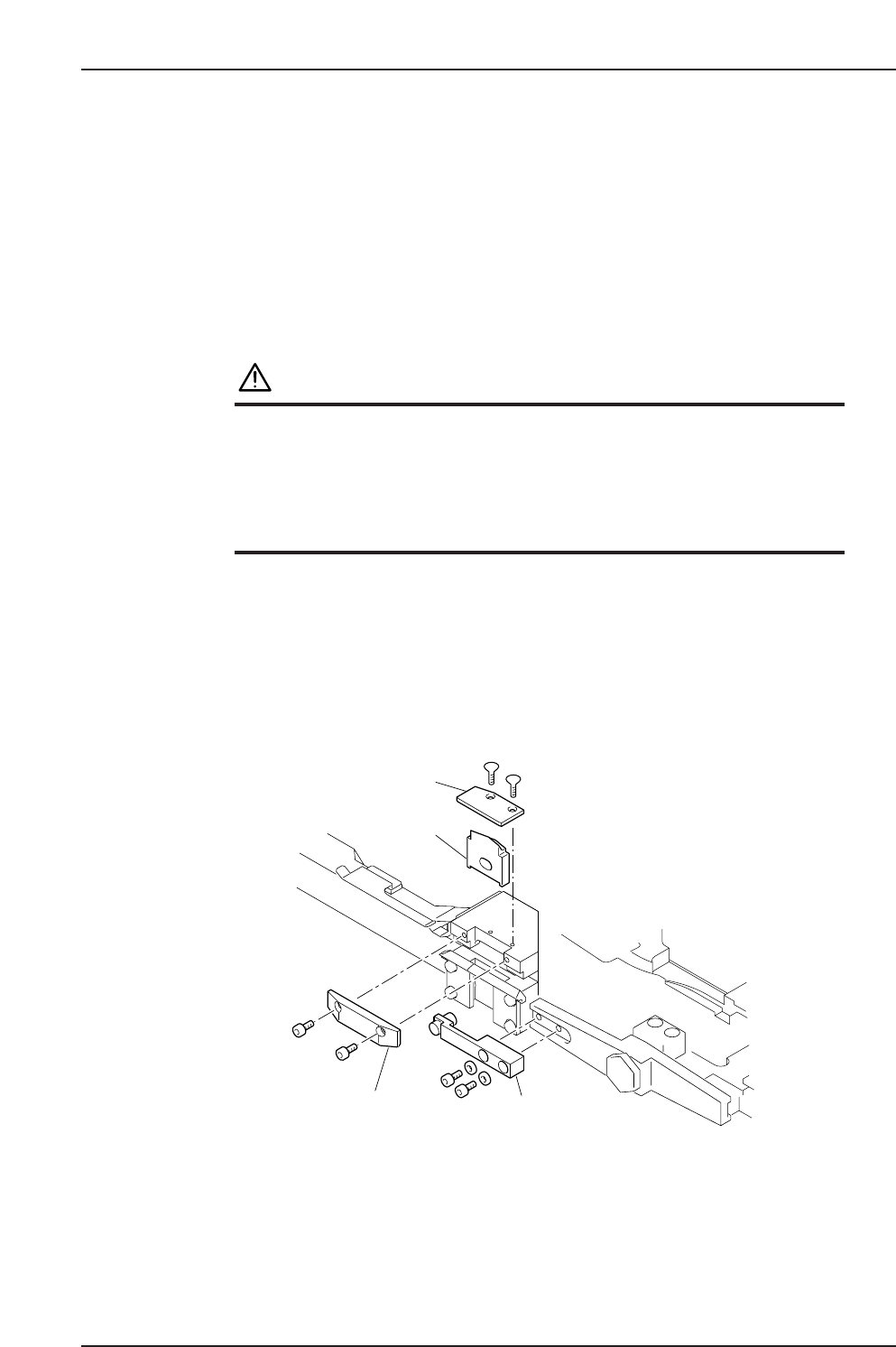

3.3 Replacing the Waste Tape Cutter

Point

A broken or damaged waste tape cutter will be unable to cut the waste tape properly,

causing tape clogging and tape feed problems. The waste tape cutter must be replaced at

such times.

Procedure

WARNING

• Turn the main power off before performing this

procedure.

• Rotation may occur (caused by spring action) if the cam

axis is not at its origin position (0-degrees).

Use special care when working inside the machine as

this is a dangerous area.

1. Remove the plate located above the waste tape cutter.

2. Remove the two bolts which secure the fixed cutter.

3. Remove the two bolts which secure the arm of the moving cutter.

4. Remove the fixed and moving cutters, and mount the new fixed and moving

cutters.

Note: Apply grease to the contact points before attaching the moving cutter.

(See 2.6 Lubricating the Tape Cutter)

C7SM3052a

Moving cutter

Fixed cutter

Arm

Plate
