3.11 Replacing the UV Lamp

The UV lamp installation procedure differs depending on machine type and X-No.

Confirm the machine X-No. and installation procedure prior to replacing the UV lamp.

The installation procedure for the power supply unit, which is also removed when

replacing the UV lamp, also differs depending on the machine.

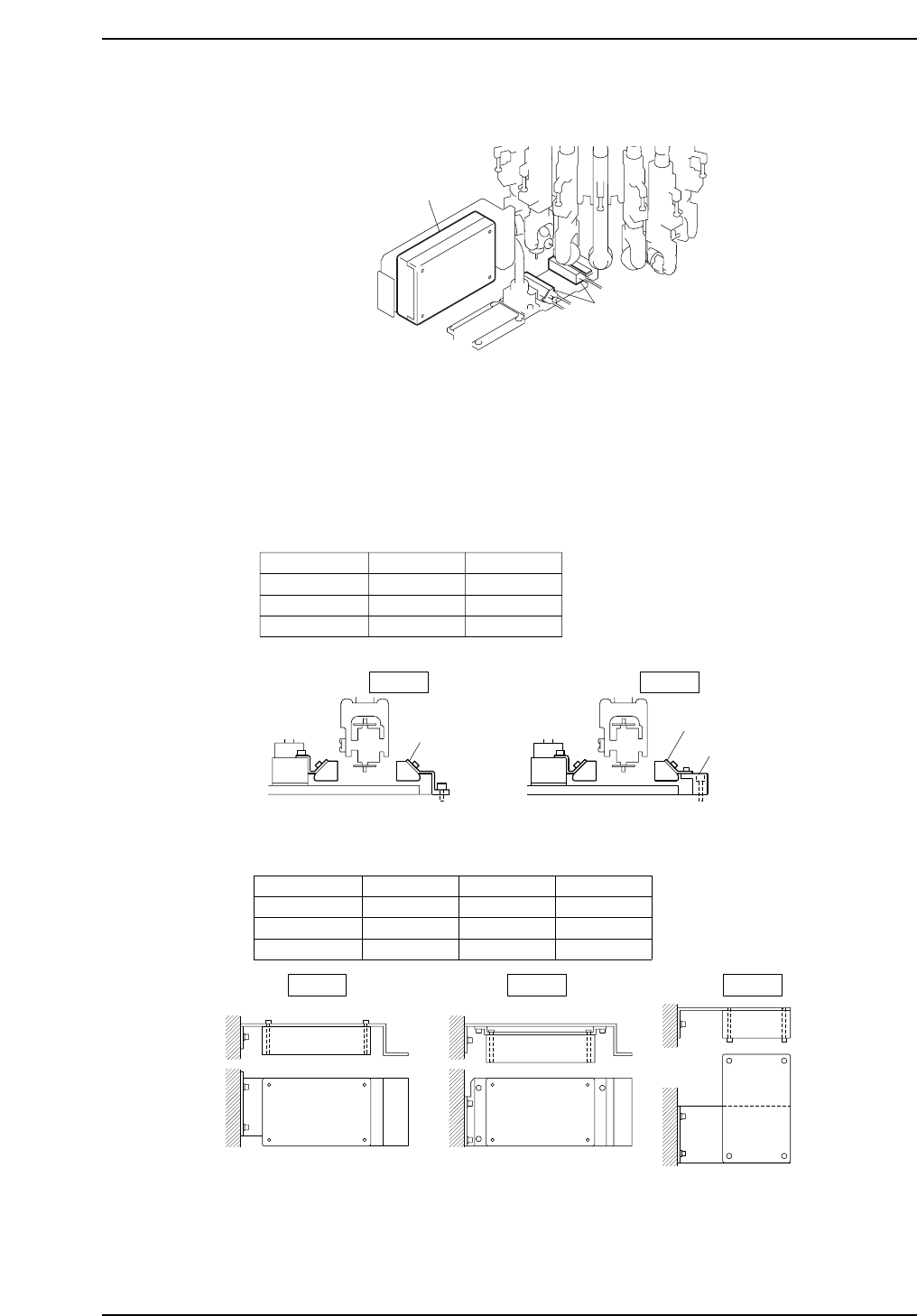

UV Lamp and Lamp Bracket

Power Supply Unit and Mounting Bracket

C7SM3086E

Type 1 Type 2 Type 3

CP-732E

CP-742E

CP-742ME

~CX29

CX29~CX49

Type 1 Type 2 Type 3

CX49~

CX4~

CX7~

C7SM3085E

CP-732E

CP-742E

CP-742ME

~CX155

~CX99

CX156~

Type A Type B

CX4~

CX100~

A2835DCGC6023

DCGC0140

DCGC0261

C7SM3090E

UV lamp

Power supply unit

Part 3 Chapter 3 Replacing Consumable Parts

Edition 2.7 3-3-23 CP-7 series Mechanical Reference

Note) The machine X-No. is indicated on the sticker on the out conveyor.

Procedure

WARNING

• Be sure to switch off the 200V power supply before

beginning this procedure.

• The spring force may cause the cam axis to rotate if

the cam axis is positioned anywhere other than the

origin position (0 degrees). Always use extreme

care when working inside the machine, as this is a

dangerous area.

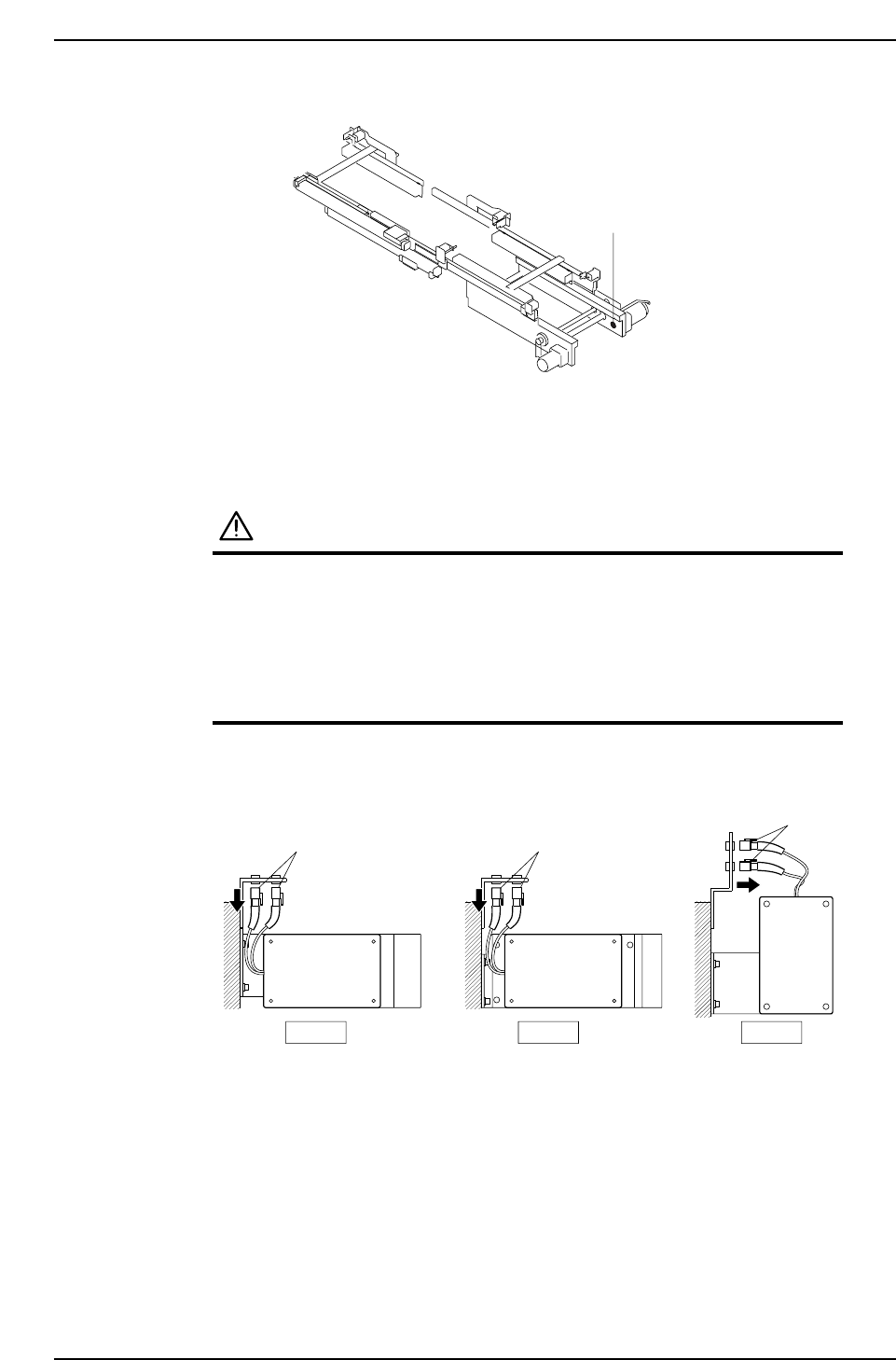

1. Disconnect the connectors of the power supply unit.

C7SM3091E

Type 1 Type 2 Type 3

Connector

ConnectorConnector

C7SM3087E

Sticker

Part 3 Chapter 3 Replacing Consumable Parts

Edition 2.7 3-3-24 CP-7 series Mechanical Reference

2. Remove the power supply unit and power supply unit cover. The removal

procedure varies among different types of power supply unit.

3. Disconnect the UV lamp harness (M1LP3A, 4A) connectors from the power supply

unit.

4. Cut the tie wraps used to secure the lamp harness.

C7SM3095E

Tie wraps

C7SM3092E

Connector

(M1LP3A)

Connector

(M1LP3A)

Connector

(M1LP4A)

Connector

(M1LP4A)

Type 1, 2

Type 3

C7SM3089E

Type 1 Type 2

Type 3

Cover

CoverPower supply unit

Power supply unit

Cover

Part 3 Chapter 3 Replacing Consumable Parts

Edition 2.7 3-3-25 CP-7 series Mechanical Reference
