1.2 Tape-end Detection (Station 1)
Point
Tape end detection is performed by a reflector type sensor which activates at a point near
the end of the tape. This enables the operator to know when a feeder is nearly out of
tape.
1.2.1 Sensor Position Adjustment
1. Set the adjustment jig (Z9526ADCPJ8550) in the D1 position.
2. Press [Position] - (Position)[D1-axis] - enter[1] - [OK] and the START button to
move the adjustment jig to station 1.
3. Press the EMERGENCY STOP button to take the 200V down to 100V.
WARNING
• Always be sure to cut off the 200V power before carrying
out any work.
• Exercise extreme caution when working on the machine if
the cam is not at its origin (0 deg.). Recoil of the cam
axis can endanger the operator.
4. Ensure that the distance between the top surface of the adjustment jig and the
sensor is approximately 11 to 12 mm.
5. Adjust the sensor position so that the sensor beam appears at 7 mm from the rear
edge of the adjustment jig slit.
Sensor
11
~
12 mm
7 mm
Beam
Adjustment jig
(Z9526ADCPJ8550)
Adjustment jig
C7SM4005b
Part 4 Chapter 1 Station Adjustments
Edition 2.4 4-1-4 CP-7 series Mechanical Reference
1.2.2 Sensor Amplifier Adjustment
Set the jig (Z9526ADCPJ8550) in position at device number one.
1. Open the cover of the amplifier and set each switch as follows:
Timer: OFF
Output: D ON
Sensitivity: FINE
2. Release the LOCK of the protect switch.
3. At PICK UP POS. D1, check that the light is striking the center of the channel on
the jig as indicated in the figure below. Press and hold down the SET button for
three seconds or more. (The display light changes to yellow.)
4. LOCK the protect switch.
5. Check if the sensor can detect the tape end.
SET
LOCK
OFF D
ON D
OFF
FINE
TURBO
D ON
L ON
SET
LOCK
OFF D
ON D
OFF
FINE
TURBO
D ON
L ON
SET
LOCK
OFF D
ON D
OFF
FINE
TURBO
D ON
L ON
SET
LOCK
OFF D
ON D
OFF
FINE
TURBO
D ON
L ON
( 1 ) ( 2 ) ( 3 ) ( 4 )
C7SM4006a
Tape end check sensor amplifier
Sensor
Jig ( Z9526ADCPJ8550 )
Open the cover
Part 4 Chapter 1 Station Adjustments
Edition 2.4 4-1-5 CP-7 series Mechanical Reference
Part 4 Chapter 1 Station Adjustments
Edition 2.4 4-1-6 CP-7 series Mechanical Reference
1.3 Waste Tape Cutter (Station 1)
Point
The waste tape cutter cuts waste tape that protrudes from feeder tips. A vacuum takes
the cut tape into the waste tape box at the front side of the machine.
Rotate the adjustment rod to align the movable blade with the fixed blade.
1.3.1 Adjustment Procedure
1. Press the EMERGENCY STOP button. This cuts the 200V servo power and leaves
on only the 100V power supply.
WARNING
• Always be sure to cut off the 200V power before carrying
out any work.
• Exercise extreme caution when working on the machine if
the cam is not at its origin (0 deg.). Recoil of the cam
axis can endanger the operator.
2. Use the cam handle to rotate the cam to 0°.

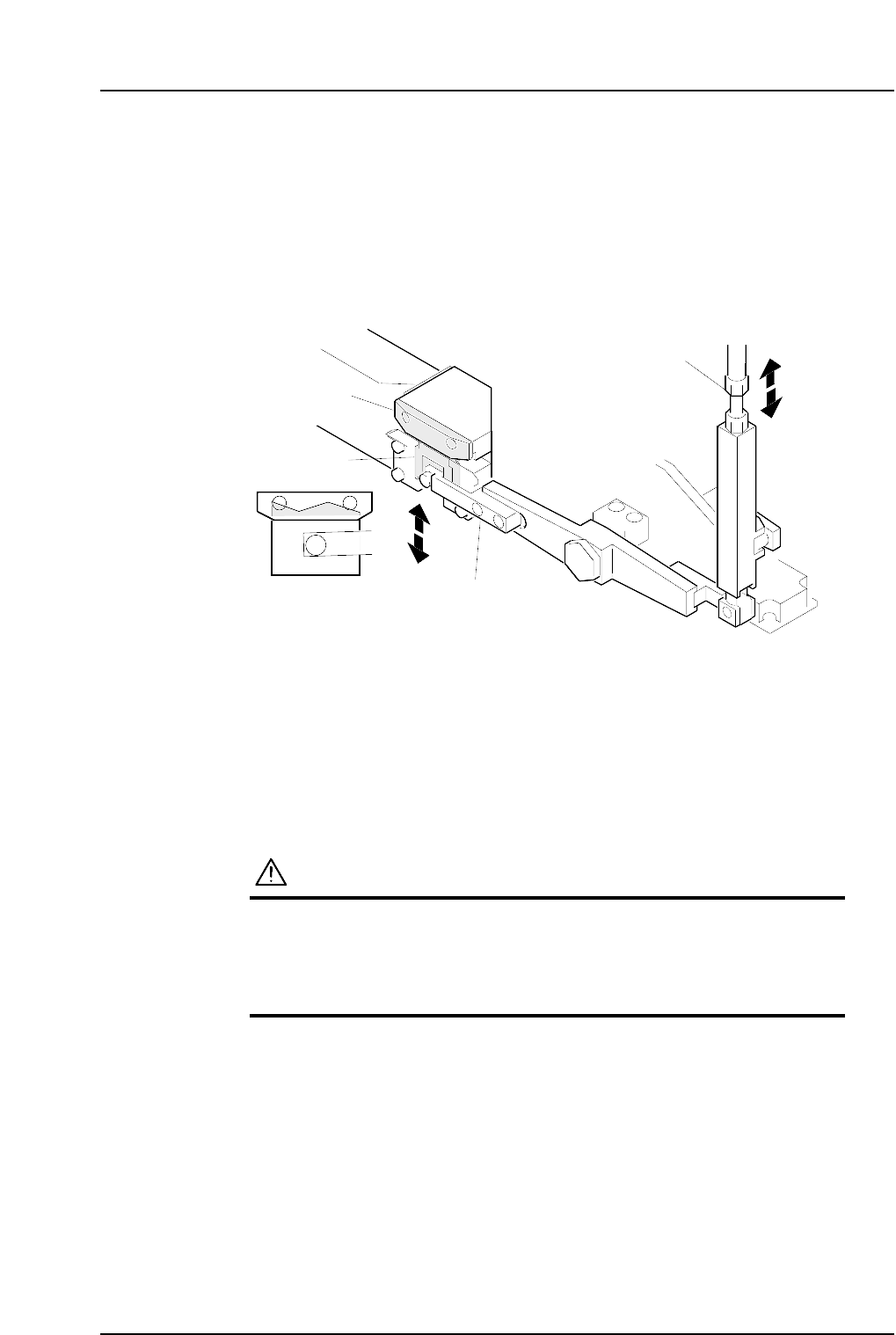

Adjustment rod
Fixed cutter
Movable cutter
Cutter lever
C7SM4007a
