D1, D2 Retract Area (Upper direction check) Inner sensor Outer sensor <CP-732E, CP-742ME> <CP-742E> C7SM4057a Sensor bracket Block (DGPJ5070) Block (DCPJ0050) C7SM4051a Sensor bracket Block (DCPJ0040) Sensor …

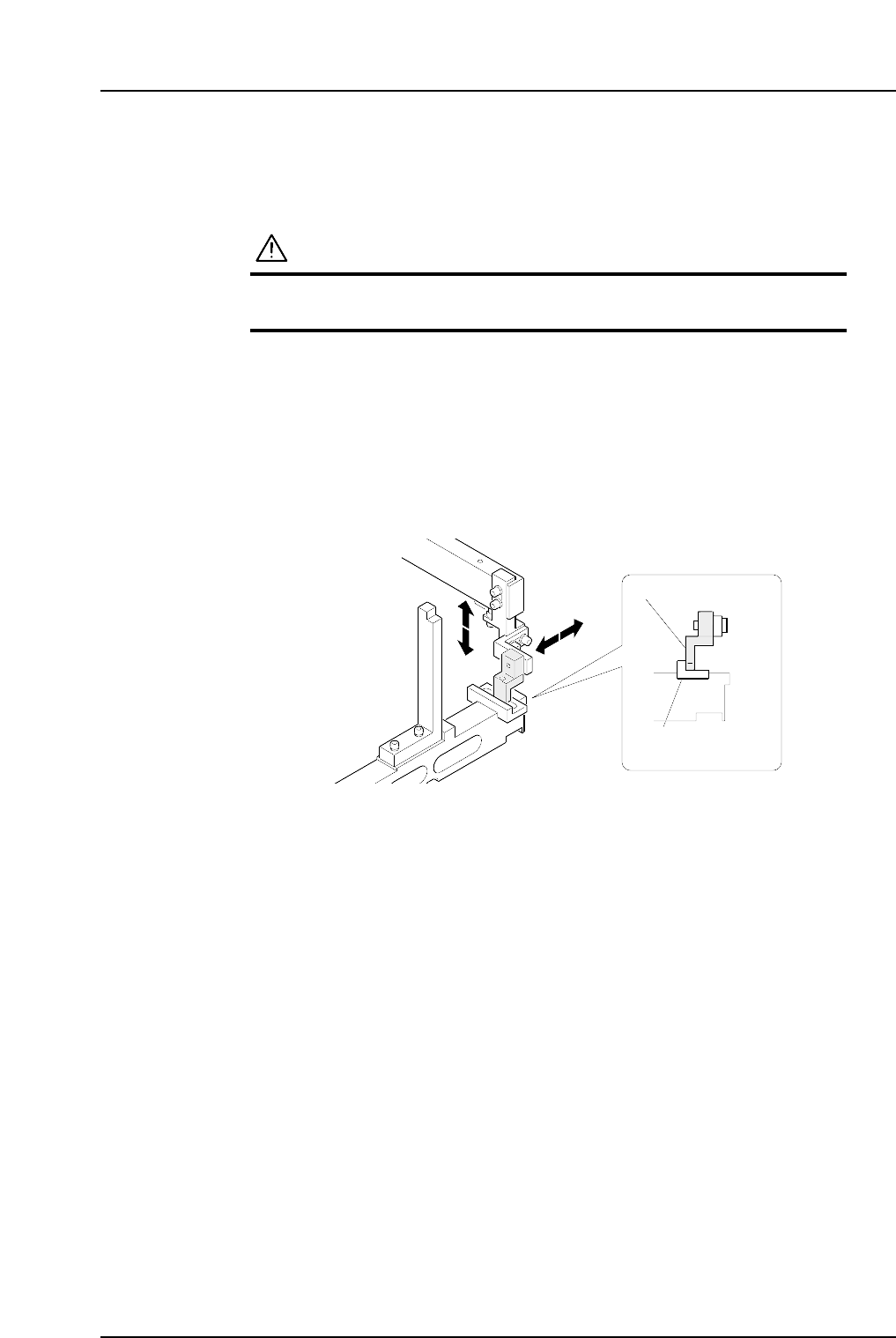

1.6.1 Feeder Check Sensor Position Adjustment

1. Press the EMERGENCY STOP button to turn off the 200V power, leaving only the

100V power on.

WARNING

Always be sure to cut off the 200V power before carrying

out any work.

2. Set the positioning jig body on a feeder pallet.

3. Use the inching keys to position the feeder pallet and bring the positioning jig

body within the vicinity of the sensor in question.

4. Attach a block appropriate for each sensor within the jig and then adjust the

sensor position.

Pick-up Area

Block

(DCPJ0040)

Sensor bracket

C7SM4050a

Part 4 Chapter 1 Station Adjustments

Edition 2.4 4-1-18 CP-7 series Mechanical Reference

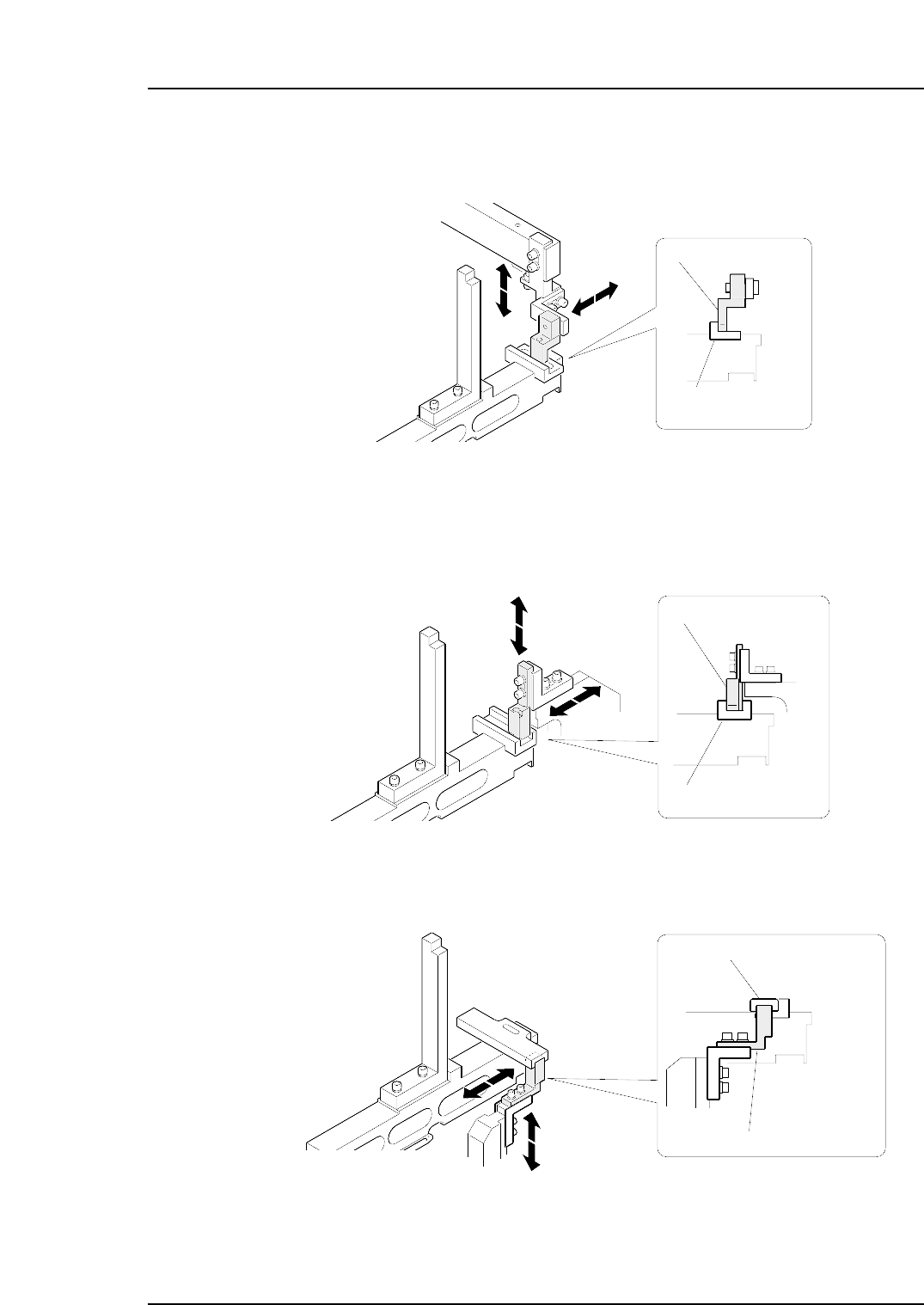

D1, D2 Retract Area (Upper direction check)

Inner sensor

Outer sensor

<CP-732E, CP-742ME>

<CP-742E>

C7SM4057a

Sensor bracket

Block (DGPJ5070)

Block (DCPJ0050)

C7SM4051a

Sensor bracket

Block

(DCPJ0040)

Sensor bracket

C7SM4050a

Part 4 Chapter 1 Station Adjustments

Edition 2.4 4-1-19 CP-7 series Mechanical Reference

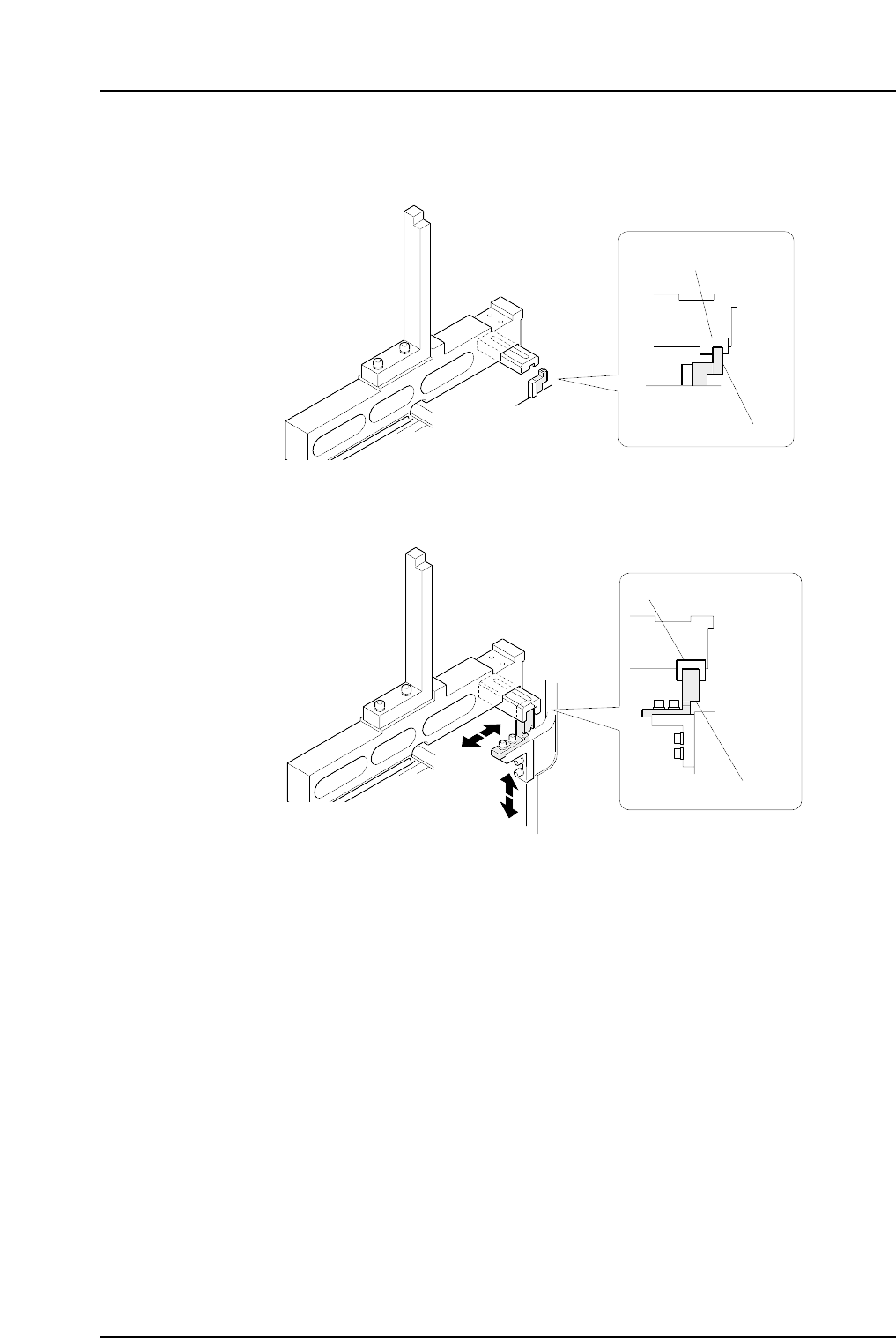

D1, D2 Retract Area (Lower direction check)

Inner sensor

Outer sensor

C7SM4053a

Block (DCPJ0070)

Sensor bracket

C7SM4052a

Block (DCPJ0060)

Sensor bracket

Part 4 Chapter 1 Station Adjustments

Edition 2.4 4-1-20 CP-7 series Mechanical Reference
