5. Place a dial gauge on the top end of the cam lever and set the gauge reading to

“0”. In this condition, the cam axis will be at its 180-degree position, and the

nozzle UP/DOWN rod will be at its DOWN limit position. Verify that the nozzle

DOWN limit sensor is ON (X033 ST9 CYLINDER LOWER-LIMIT is ON) at the

I/O screen.

6. While observing the dial gauge, rotate the cam axis in the forward direction to

raise the nozzle UP/DOWN rod. Adjust the sensor’s mounting position so that

the sensor switches OFF (X033 ST9 CYLINDER LOWER-LIMIT switches OFF)

when the rod has been raised 0.3 to 0.4 mm.

7. Adjust the sensor’s mounting position by loosening the sensor lock screw and

sliding the sensor in the front/back directions.

C7SM4035

Nozzle down limit sensor

Screw

Dog

C7SM4034

Nozzle down limit sensor (OFF)

Nozzle UP/DOWN rod

Rod raised 0.3 to 0.4 mm.

Dog

C7SM4033

Set the dial gauge to "0".

Nozzle down limit sensor (ON)

Dog

Nozzle UP/DOWN rod

Part 4 Chapter 1 Station Adjustments

Edition 2.4 4-1-33 CP-7 series Mechanical Reference

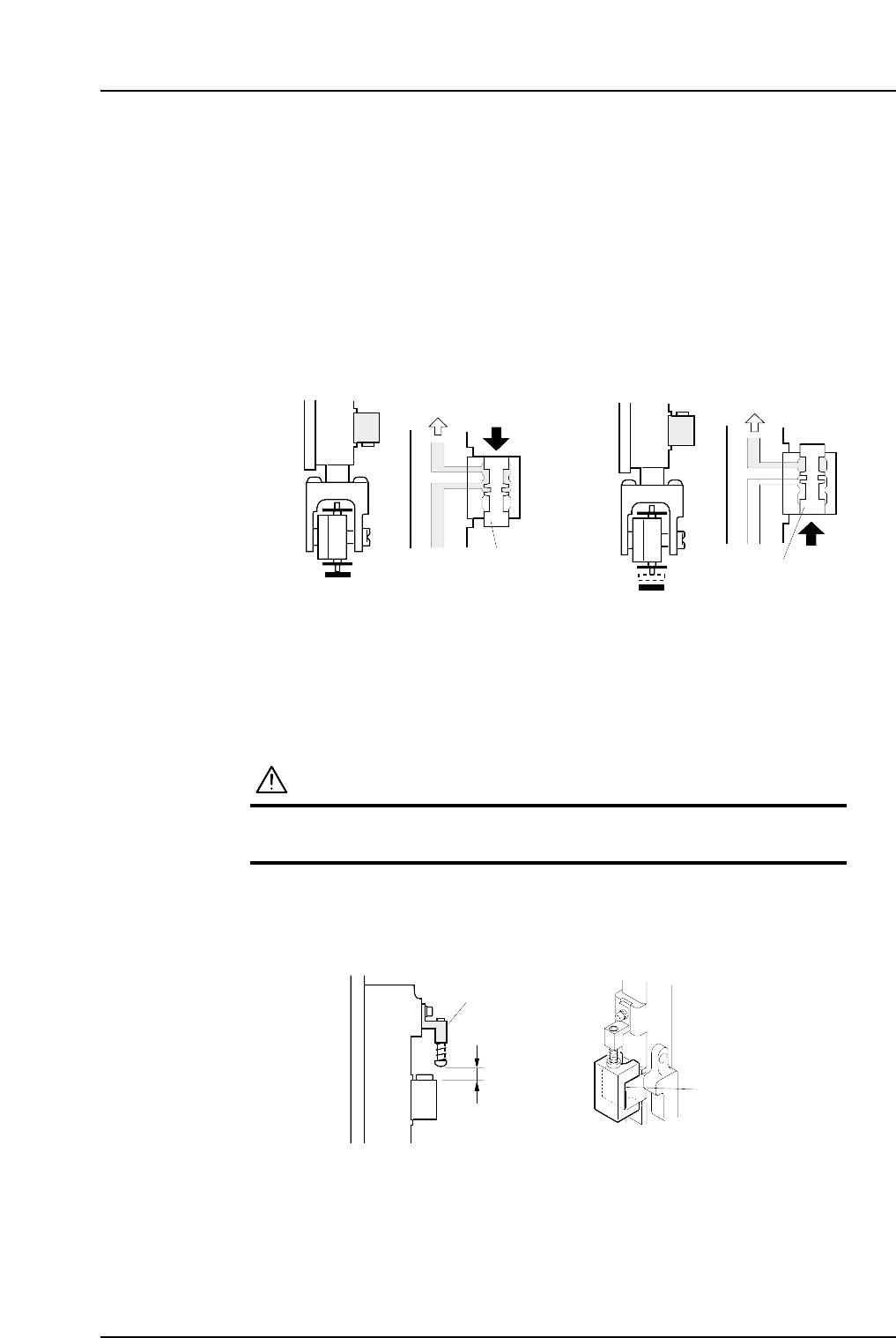

1.11 Mechanical Valve Switching (Station 9)

Point

The nozzle vacuum goes from ON to OFF with the movement of the mechanical valve at

station 9. Vacuum pressure inside the nozzle is released for part placement when the

valve closes. Ensure the part is placed on the production board.

1.11.1 Checking the Position of the Pin Bracket

1. Press the EMERGENCY STOP button to turn off the 200V power, leaving only the

100V power on.

WARNING

Always be sure to cut off the 200V power before carrying

out this work.

2. Ensure that distance A (as seen in the figure below) is 8.9 mm for all heads. Use a

special jig (Z9526DCPJ0371) to check this distance.

8.9 mm

Pin bracket

Jig

( Z9526DCPJ0371 )

C7SM4054a

C7SM4036a

Vaccum ON Vaccum OFF

Vaccum

Spool

Part 4 Chapter 1 Station Adjustments

Edition 2.4 4-1-34 CP-7 series Mechanical Reference

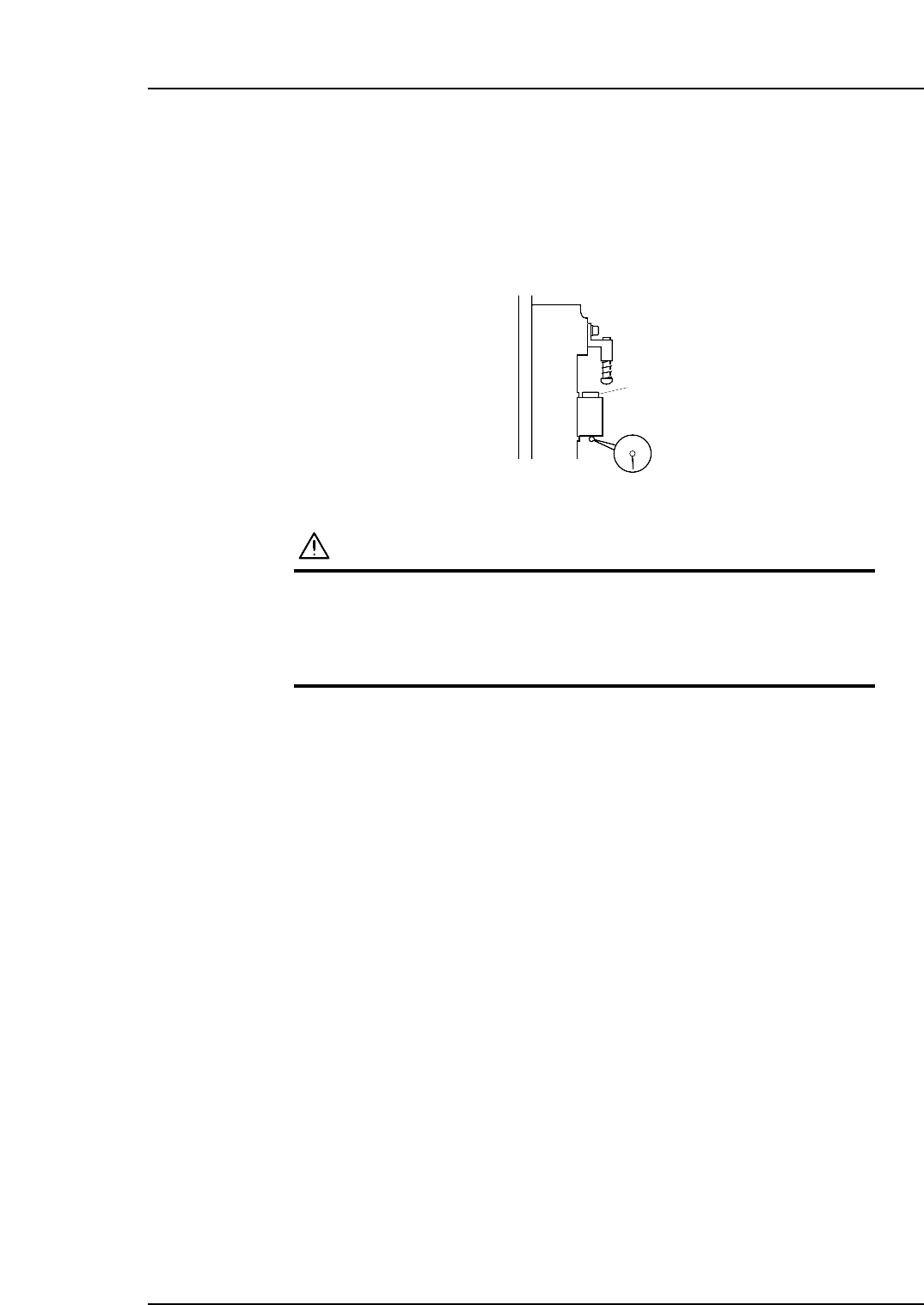

1.11.2 Valve Switching Lever Height Adjustment

This adjustment should be performed on the reference head after completing

adjustments to the vertical movement of the nozzle. (Refer to 1.10 “Nozzle Vertical

Movement During Placement” for details.)

The reference head can be identified by its height. All heads are measured with spools

lifted, and the lowest one is referred to as the reference head.

1. Press the EMERGENCY STOP button to take the 200V down to 100V.

WARNING

• Always be sure to cut off the 200V power before carrying

out any work.

• Exercise extreme caution when working on the machine if

the cam is not at its origin (0 deg.). Recoil of the cam

axis can endanger the operator.

2. Set the cam angle to 0°, then activate the place solenoid (Y035 ST9 PLACE SOL

ENGAGED) at station 9 to work the lever.

3. Use the cam handle to rotate the cam to 180°.

Spool

C7SM4055

Part 4 Chapter 1 Station Adjustments

Edition 2.4 4-1-35 CP-7 series Mechanical Reference
