Notes: Part 6 Chapter 4 Connecting the Data T ransmission Cable Edition 2.3 6-4-2 CP-7-series Mechanical Reference

4. Connecting the Data Transmission Cable

Point

The machine is connected to the host computer by means of an Ethernet twisted-pair

communication cable (class 5) which permits program transmissions and production log

compilation.

Procedure

1. Register the CP-7-series machines in the line descriptor file at the host.

Note: Refer to the host computer manual for details regarding the registration procedure.

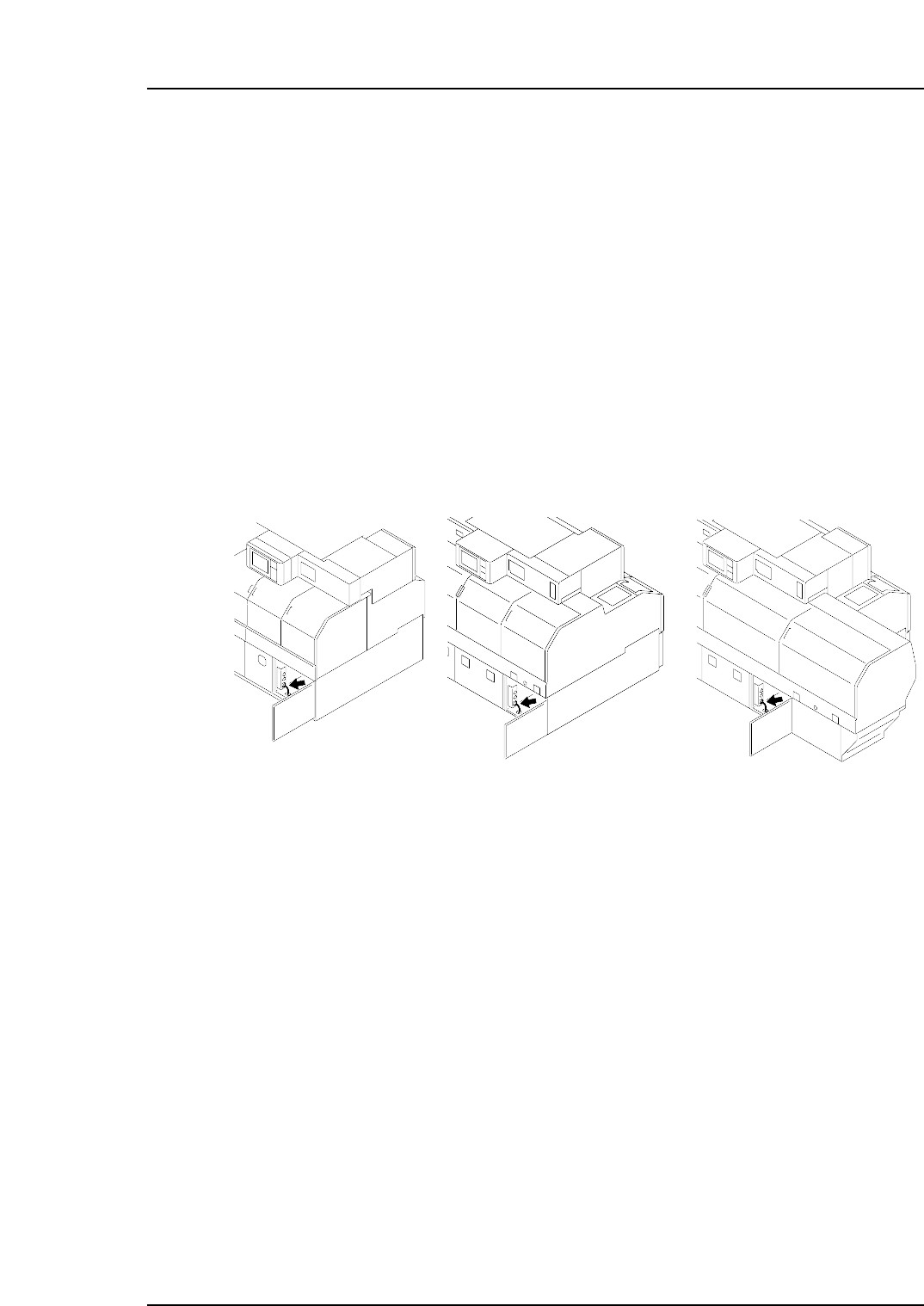

2. Connect one end of the transmission cable to the Ethernet connector at the host,

and connect the other end to the connector on the machine.

<CP-742E>

C7SM5006a

<CP-732E> <CP-742ME>

Part 6 Chapter 4 Connecting the Data Transmission Cable

Edition 2.3 6-4-1 CP-7-series Mechanical Reference

Notes:

Part 6 Chapter 4 Connecting the Data Transmission Cable

Edition 2.3 6-4-2 CP-7-series Mechanical Reference

5. Moving the Machine

Precautions when Moving the Machine

When moving a machine, be sure to observe the safety measures described below in

order to avoid accidents.

• Be sure that the workers who are moving the machine are wearing safety shoes

and helmets.

• Prepare the transport path in advance, and be sure that those who are not assisting

in the machine transport are kept out of the area.

• The machine should be moved only by qualified personnel.

• Before moving the machine, attach the machine brackets (red) which were

attached when the machine was delivered. (Attach the brackets in the prescribed

positions.)

• Use a forklift (load capacity of 10 t or higher) which is suitable for the weight of

the machine in question.

Machine weights: CP-732E . . . . . . . .Approx. 4,000 kg

CP-742M . . . . . . .Approx. 4,880 kg

CP-742E . . . . . . . .Approx. 5,850 kg

• Be sure to insert the forklift forks at the prescribed position.

• Use care to avoid bending the leveling bolts.

• If the balance of a lifted machine is unstable, lower the machine immediately.

• Raise and lower the machine slowly to avoid subjecting the machine to shocks.

Transport Procedure

1. Remove all tape feeders, air hoses, and electrical wiring from the machine.

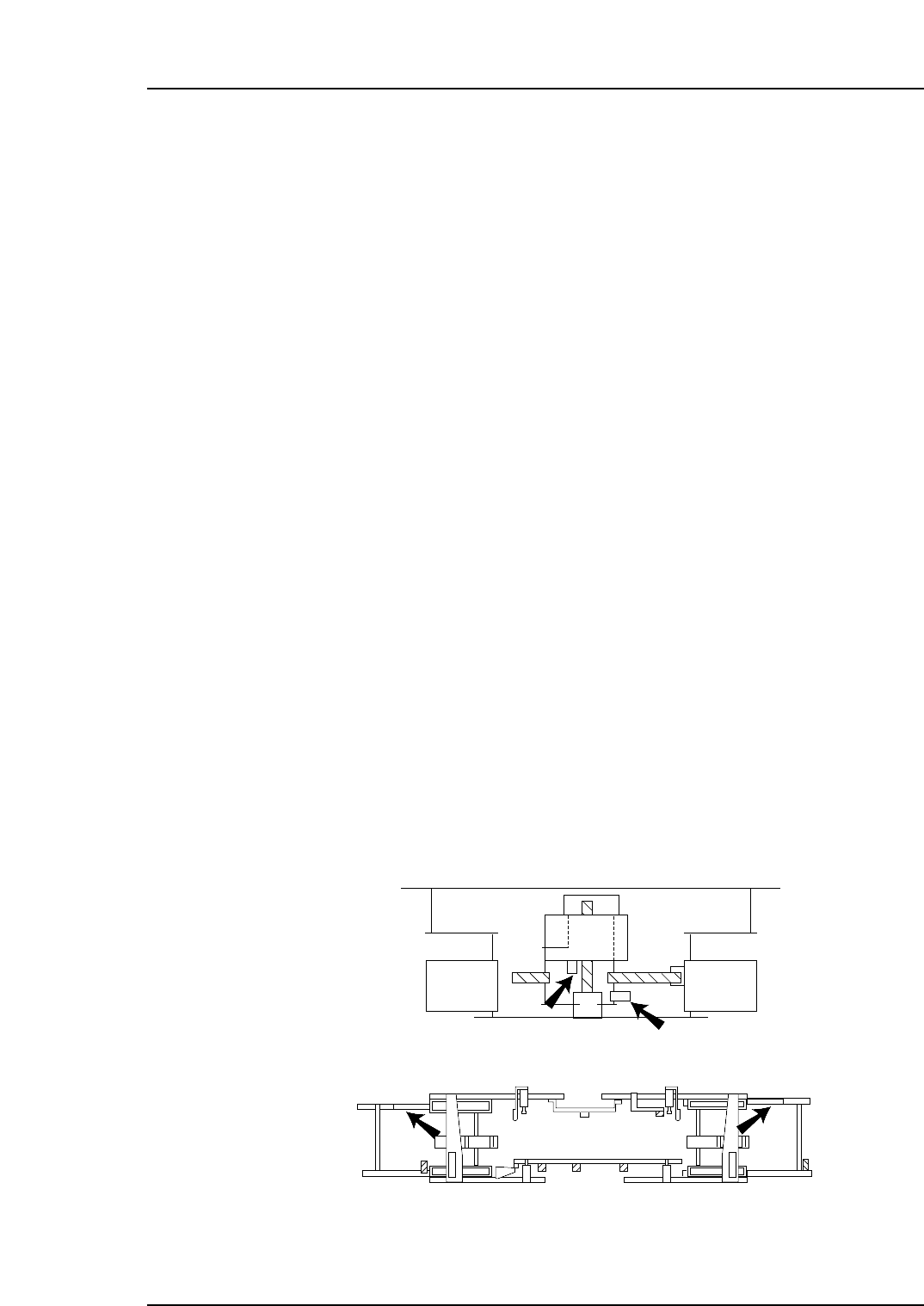

2. Use the machine brackets (red) to secure the XY-table, the in- and out-carriers, and

the D-axes.

Note: If there are no machine brackets available, use rope, etc., to secure the various parts

of the machine to avoid damaging them.

Carrier brackets

Y-axis bracket

X-axis bracket

C7SM5008

Part 6 Chapter 5 Moving the Machine

Edition 2.3 6-5-1 CP-7-series Mechanical Reference
