Rear Side C7SM1015a Vacuum pump Waste tape cutter Pallet Device table C7SM1014a Operation box 2 Rear cover Servo box 3 (Servo BKT 2) Servo box 2 (Servo BKT 1) Servo box 1 Transformer box (Transformer BKT) Part 1 Chapter …
<CP-742ME>
Front Side
C7SM1013a
In-conveyor
Placing head
Index unit
Out-conveyor
In-carrier
XY-table
Vision processing camera
(for reading fiducial mark)
Out-carrier
C7SM1012b
Breaker
Oil cooler box
Cam box
Operation box 1
Control width adjusting handle
Waste tape box
Control box 3
Control box 1
CP-742ME
Control box 2
Part 1 Chapter 1 Machine Components
Edition 2.4 1-1-3 CP-7 series Mechanical Reference
Rear Side
C7SM1015a
Vacuum pump
Waste tape cutter
Pallet
Device table
C7SM1014a
Operation box 2
Rear cover
Servo box 3
(Servo BKT 2)
Servo box 2
(Servo BKT 1)
Servo box 1
Transformer box
(Transformer BKT)
Part 1 Chapter 1 Machine Components
Edition 2.4 1-1-4 CP-7 series Mechanical Reference

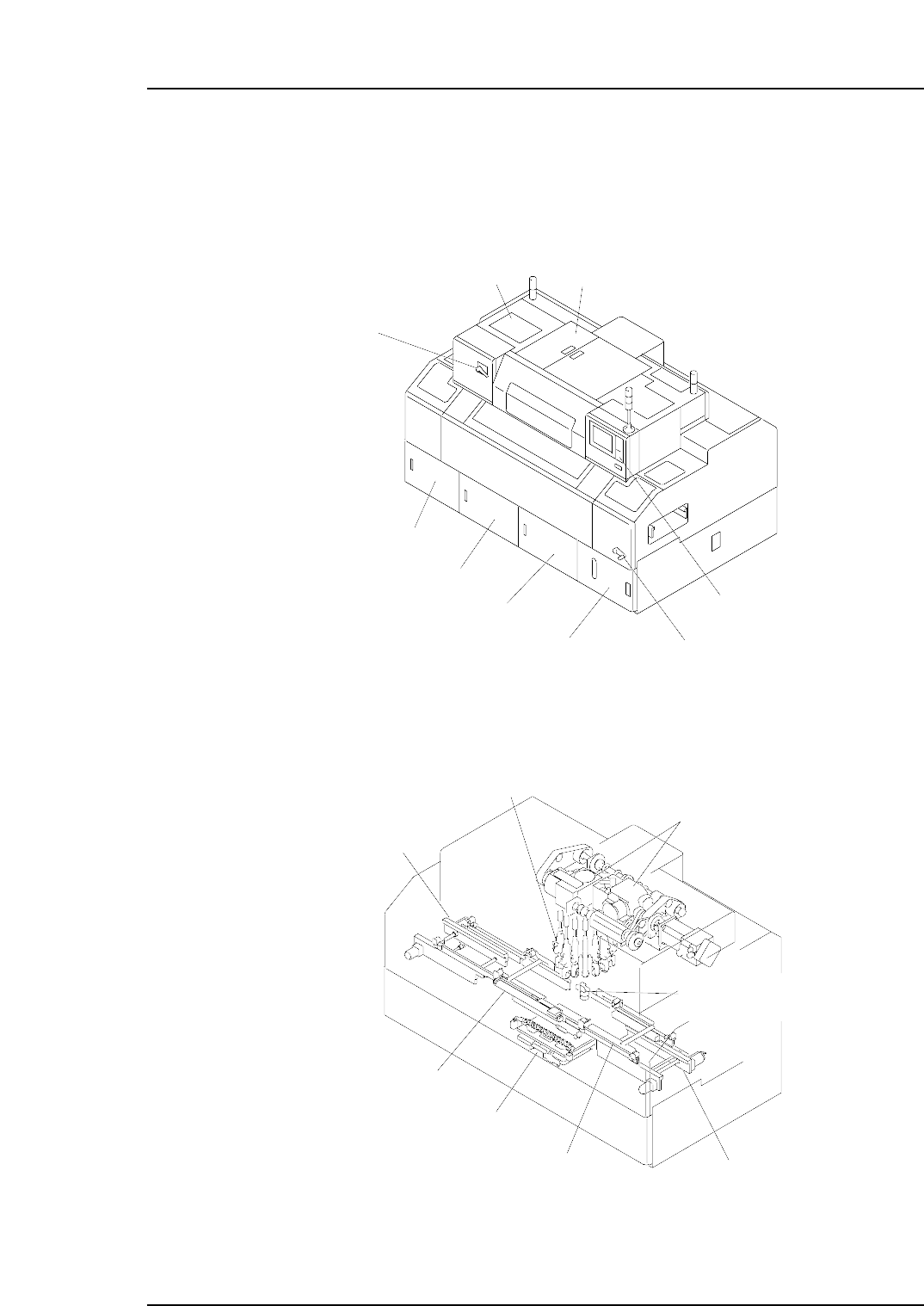

<CP-742E>
Front Side
C7SM1009a
In-conveyor
Placing head
Index unit
Out-conveyor
In-carrier
XY-table
Vision processing camera
(for reading fiducial mark)
Out-carrier
C7SM1008b
Breaker
Oil cooler box
Cam box
Operation box 1
Conveyor width adjusting handle
Waste tape box
Control box 2
Control box 3
Control box 1
CP-742E
Part 1 Chapter 1 Machine Components
Edition 2.4 1-1-5 CP-7 series Mechanical Reference
