Panel Clamp C7SM1T08a X059 X05A X05F X060 X061 X062 X063 X064 X07B XY-TABLE REFERENCE PIN INSERT CHECK XY-TABLE PANEL CLAMP RAISED CLAW CHECK XY-TABLE PANEL CLAMP CHECK (FIXED RAIL, RIGHT) XY-TABLE PANEL CLAMP CHECK (ADJ…

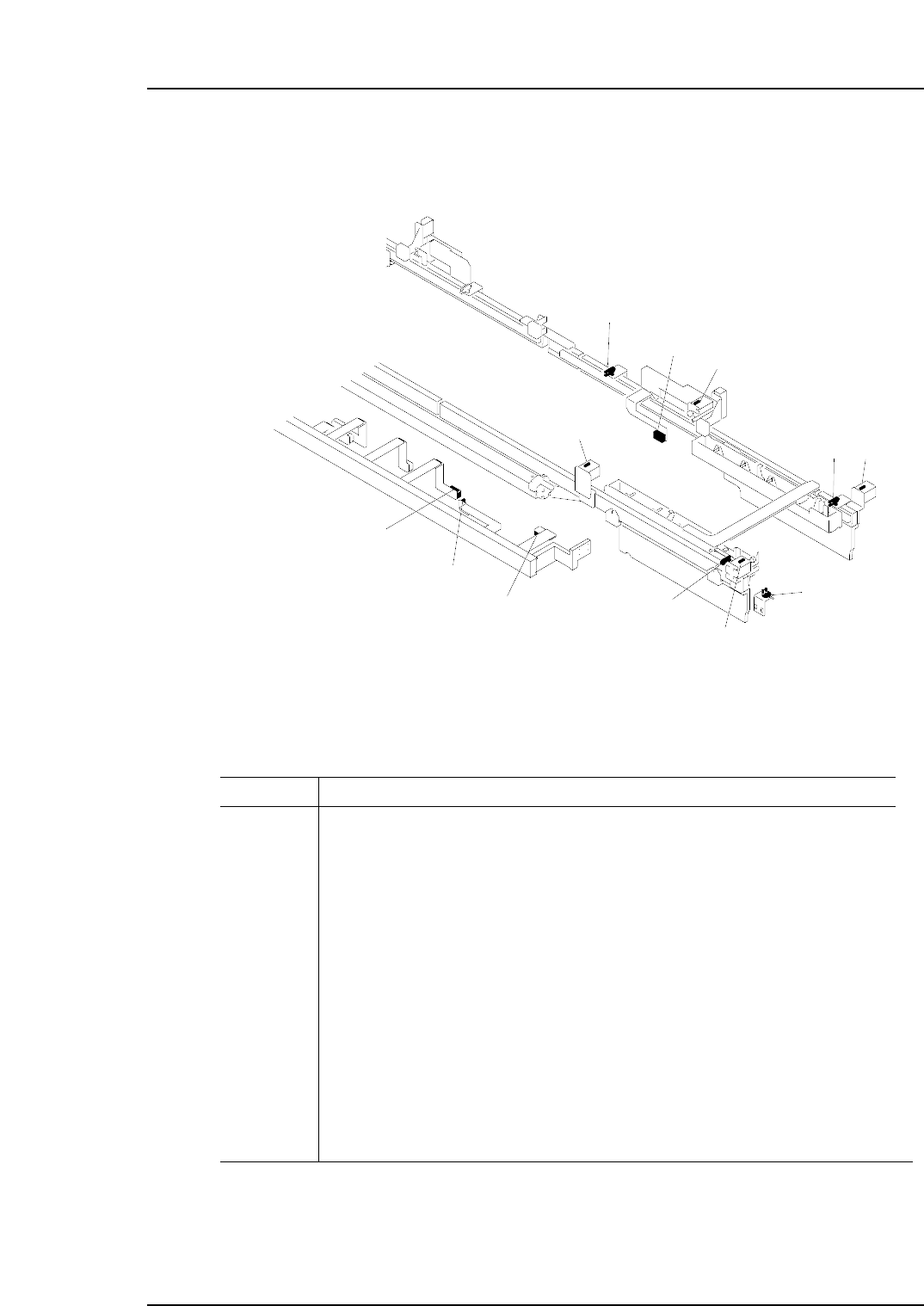

Out-carrier

C7SM1T07a

X0CC

X0CD

X0CE

X0CF

X0D2

X0D3

X0D4

X0D5

X0D6

X0D7

X0D8

X0D9

OUT-CARRIER FORWARD LIMIT PANEL CHECK (1)

OUT-CARRIER FORWARD LIMIT PANEL CHECK (2)

OUT-CARRIER FORWARD LIMIT CHECK

OUT-CARRIER RETRACT LIMIT CHECK

OUT-CARRIER RETRACT LIMIT CLAMP CHECK (FIXED RAIL)

OUT-CARRIER RETRACT LIMIT CLAMP CHECK (ADJUSTABLE RAIL)

OUT-CARRIER FORWARD LIMIT CLAMP CHECK (FIXED RAIL)

OUT-CARRIER FORWARD LIMIT CLAMP CHECK (ADJUSTABLE RAIL)

OUT-CARRIER RETRACT LIMIT UNCLAMP CHECK (FIXED RAIL)

OUT-CARRIER RETRACT LIMIT UNCLAMP CHECK (ADJUSTABLE RAIL)

OUT-CARRIER FORWARD LIMIT UNCLAMP CHECK (FIXED RAIL)

OUT-CARRIER FORWARD LIMIT UNCLAMP CHECK (ADJUSTABLE RAIL)

Sensor No.

SIGNAL NAME

X0D5

X0D9

X0D8

C7SM1027a

X0CC

X0CD

X0D4

X0CE

X0D2

X0D6

X0CF

X0D3 X0D7

Part 1 Chapter 3 Sensor Positions

Edition 2.4 1-3-7 CP-7 series Mechanical Reference

Panel Clamp

C7SM1T08a

X059

X05A

X05F

X060

X061

X062

X063

X064

X07B

XY-TABLE REFERENCE PIN INSERT CHECK

XY-TABLE PANEL CLAMP RAISED CLAW CHECK

XY-TABLE PANEL CLAMP CHECK (FIXED RAIL, RIGHT)

XY-TABLE PANEL CLAMP CHECK (ADJUSTABLE RAIL, RIGHT)

XY-TABLE PANEL UNCLAMP CHECK (FIXED RAIL, RIGHT)

XY-TABLE PANEL UNCLAMP CHECK (ADJUSTABLE RAIL, RIGHT)

XY-TABLE PANEL CLAMP CHECK (FIXED RAIL, LEFT)

XY-TABLE PANEL UNCLAMP CHECK (FIXED RAIL, LEFT)

BACKUP PIN CHECK

Sensor No.

SIGNAL NAME

X063

X064

X05F

X061

X07B

C7SM1028a

X060

X05A (CP-743ME/CP-743E)

X059

(CP-743ME/CP-743E)

X062

Part 1 Chapter 3 Sensor Positions

Edition 2.4 1-3-8 CP-7 series Mechanical Reference

Cam Box

Note: The items in parentheses do not display in the I/O map.

C7SM1T09a

X030

X032

X033

(10LS-9)

(10LS-12)

(10LS-31)

(10LS-34)

ST1 NOZZLE UPPER LIMIT CHECK

ST9 NOZZLE UPPER LIMIT CHECK

ST9 NOZZLE LOWER LIMIT CHECK

( ST5 IMAGE CHECK )

( CAM ANGLE CHECK )

( ACQUIRE PARTS HEIGHT COMMAND )

( FOREIGN OBJECTS CHECK COMMAND )

Sensor No.

SIGNAL NAME

X030

(10LS-31)

(10LS-34)

(10LS-9)

(10LS-12)

X033

X032

C7SM1029a

Part 1 Chapter 3 Sensor Positions

Edition 2.4 1-3-9 CP-7 series Mechanical Reference
