Cam Box Note: The items in parentheses do not display in the I/O map. C7SM1T09a X030 X032 X033 (10LS-9) (10LS-12) (10LS-31) (10LS-34) ST1 NOZZLE UPPER LIMIT CHECK ST9 NOZZLE UPPER LIMIT CHECK ST9 NOZZLE LOWER LIMIT CHECK…

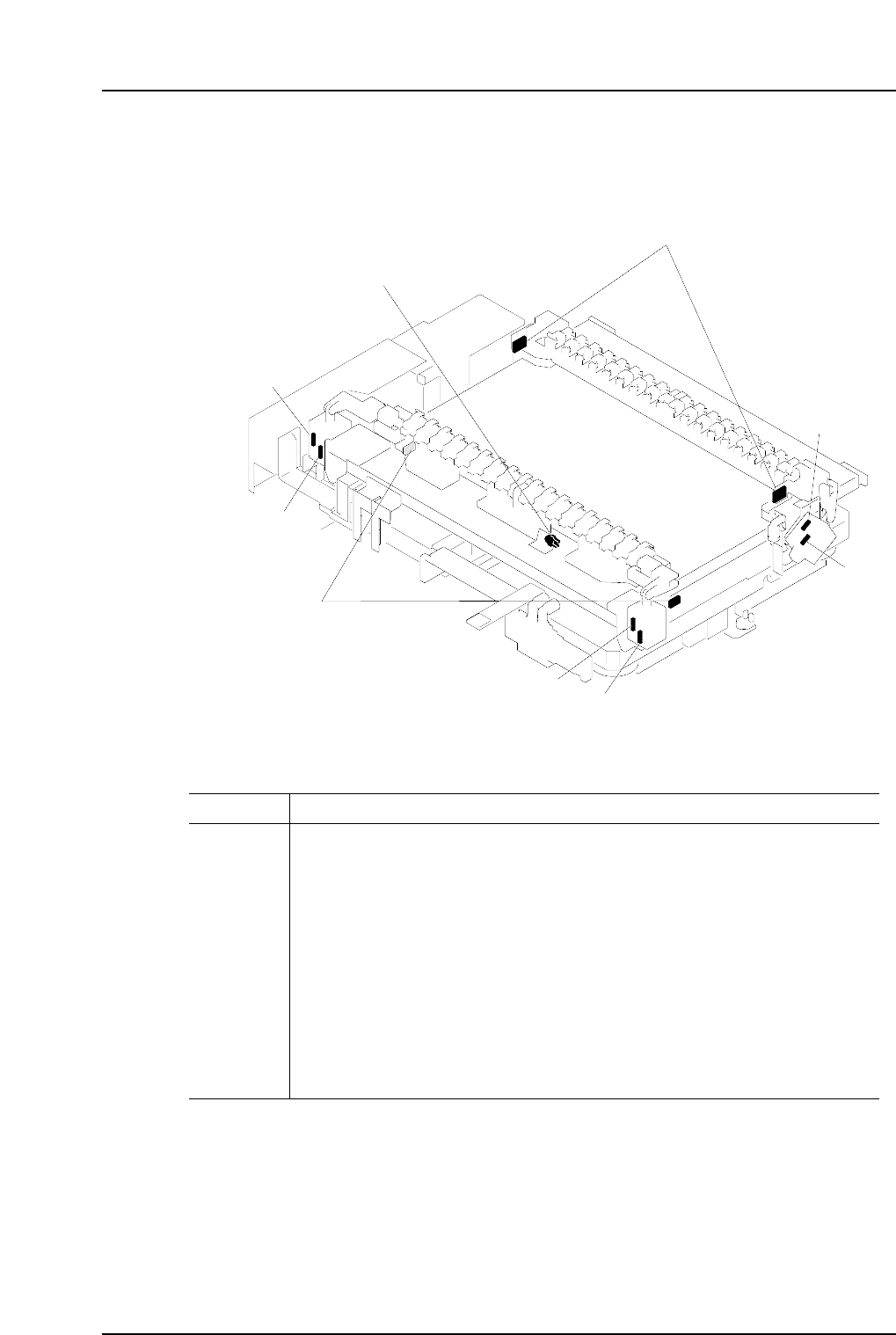

Panel Clamp
C7SM1T08a
X059
X05A
X05F
X060
X061
X062
X063
X064
X07B
XY-TABLE REFERENCE PIN INSERT CHECK
XY-TABLE PANEL CLAMP RAISED CLAW CHECK
XY-TABLE PANEL CLAMP CHECK (FIXED RAIL, RIGHT)
XY-TABLE PANEL CLAMP CHECK (ADJUSTABLE RAIL, RIGHT)
XY-TABLE PANEL UNCLAMP CHECK (FIXED RAIL, RIGHT)
XY-TABLE PANEL UNCLAMP CHECK (ADJUSTABLE RAIL, RIGHT)
XY-TABLE PANEL CLAMP CHECK (FIXED RAIL, LEFT)
XY-TABLE PANEL UNCLAMP CHECK (FIXED RAIL, LEFT)
BACKUP PIN CHECK
Sensor No.
SIGNAL NAME
X063
X064
X05F
X061
X07B
C7SM1028a
X060
X05A (CP-743ME/CP-743E)
X059
(CP-743ME/CP-743E)
X062
Part 1 Chapter 3 Sensor Positions
Edition 2.4 1-3-8 CP-7 series Mechanical Reference

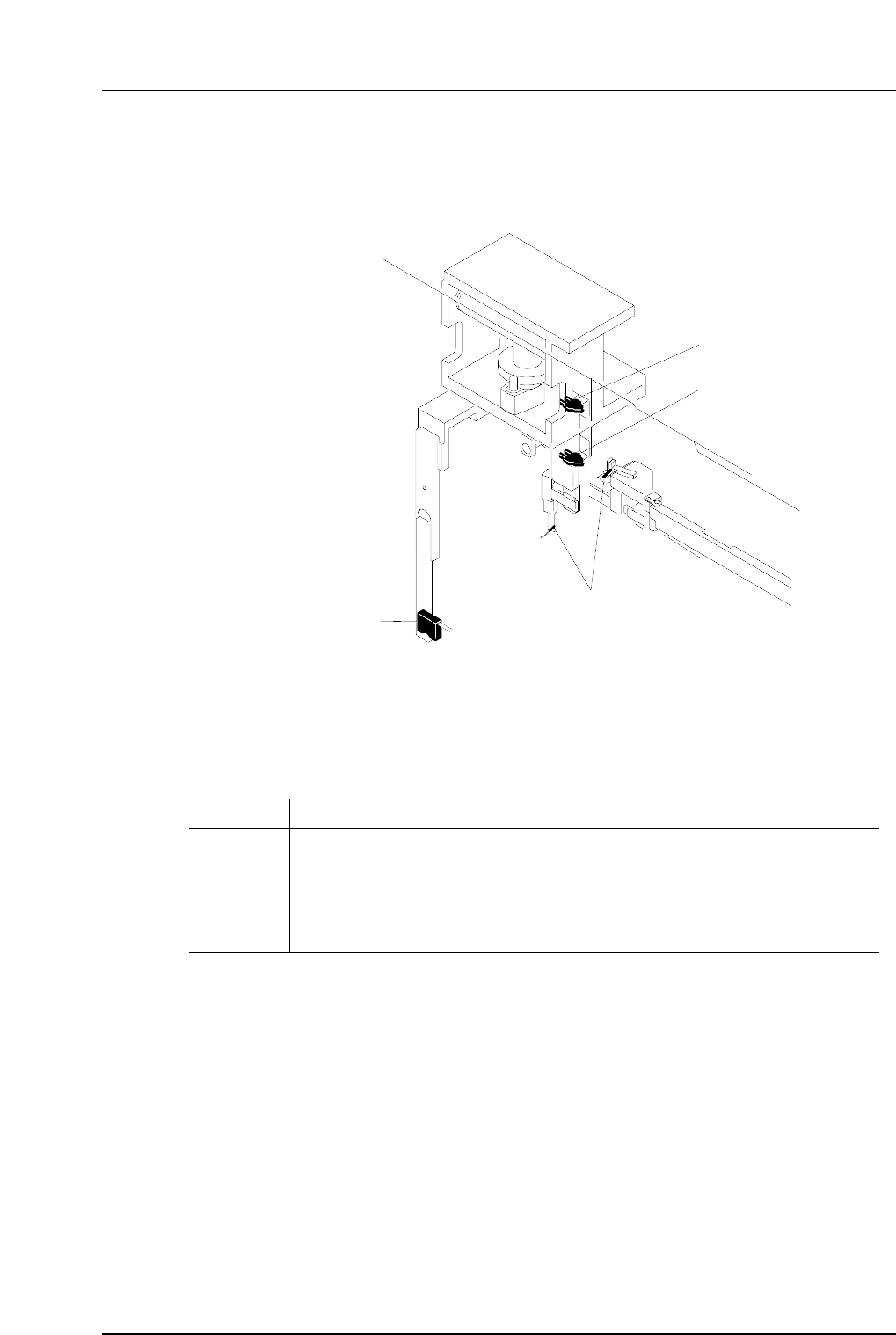

Cam Box
Note: The items in parentheses do not display in the I/O map.
C7SM1T09a
X030
X032
X033
(10LS-9)
(10LS-12)
(10LS-31)
(10LS-34)
ST1 NOZZLE UPPER LIMIT CHECK
ST9 NOZZLE UPPER LIMIT CHECK
ST9 NOZZLE LOWER LIMIT CHECK
( ST5 IMAGE CHECK )
( CAM ANGLE CHECK )
( ACQUIRE PARTS HEIGHT COMMAND )
( FOREIGN OBJECTS CHECK COMMAND )
Sensor No.
SIGNAL NAME
X030
(10LS-31)
(10LS-34)
(10LS-9)
(10LS-12)
X033
X032
C7SM1029a
Part 1 Chapter 3 Sensor Positions
Edition 2.4 1-3-9 CP-7 series Mechanical Reference

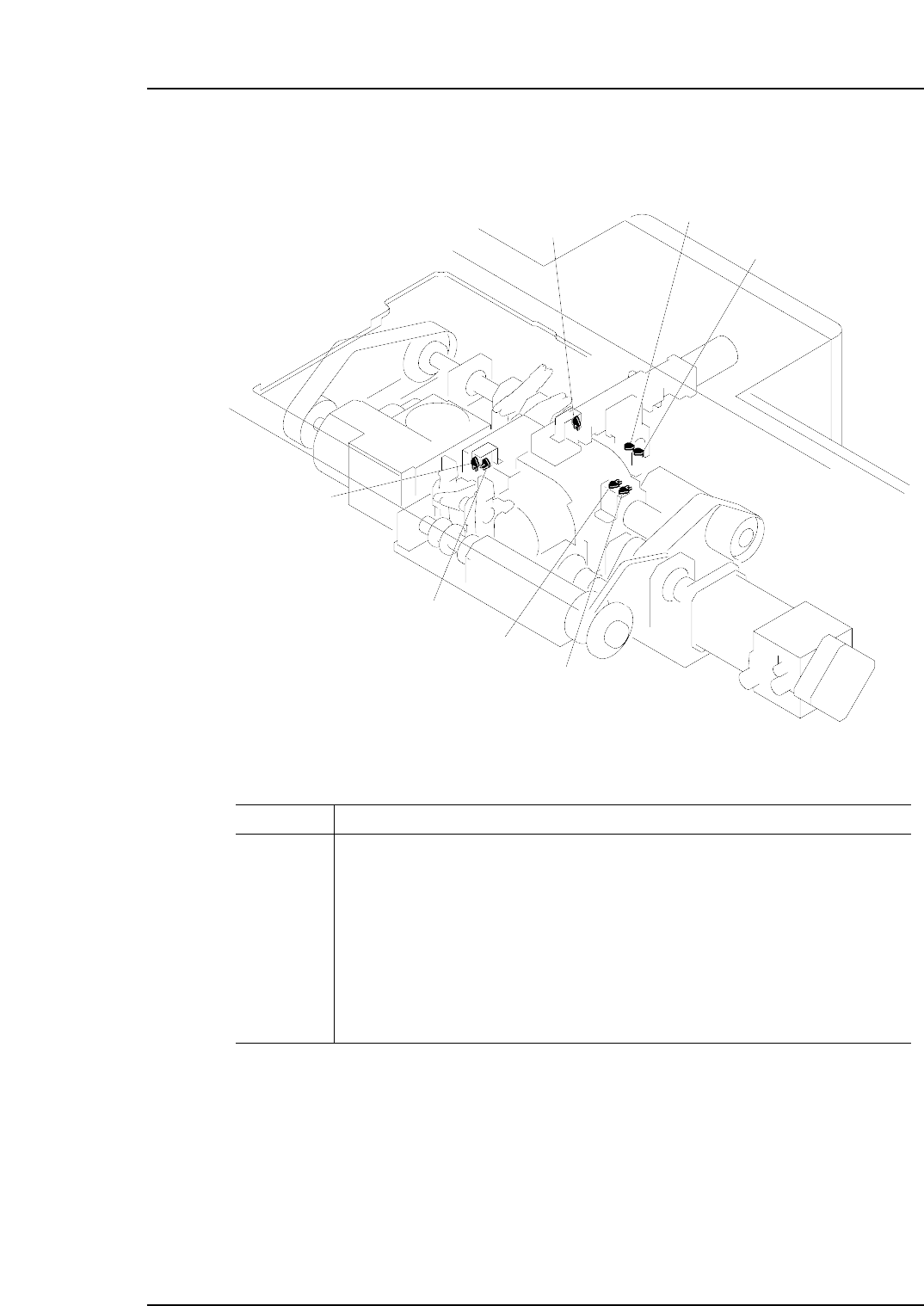

Tape Feeder Unit (Station 1, 2)
C7SM1T10
X036
X03B
X03C
X03D
ST2 LARGE PART CHECK
FEEDING FORWARD LIMIT
FEEDING RETRACT LIMIT
TAPE END CHECK
Sensor No.
SIGNAL NAME
X03C
X03B
X036
X03D
C7SM1030a
Part 1 Chapter 3 Sensor Positions
