Part 2 Chapter 5 Setting the Panel Positioning Pins

Edition 2.2 2-5-2 CP-7 series Mechanical Reference

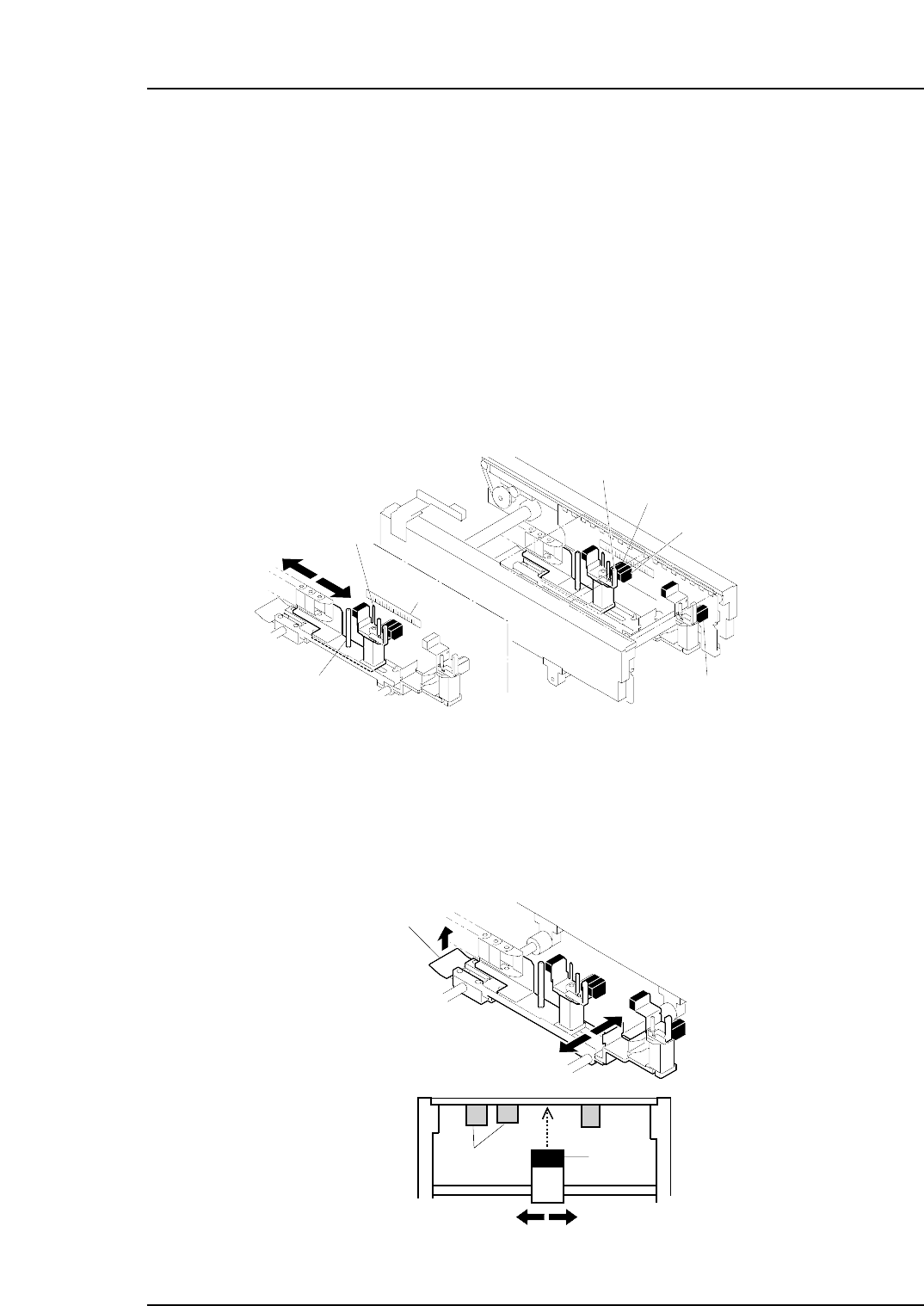

6. Adjusting the Position of the Panel 2 Stopper

(During Double Panel Production)

Point

When conducting double panel production, the positions of the in- and out-conveyors’

Panel 2 stopper must be adjusted to match the dimensions of the panel being used.

Procedure

Adjusting the X-axis direction

Loosen the adjustment bolt and slide the Panel 2 stopper so that it is aligned with the

scale measurement that equals the panel length. Then, retighten the adjustment bolt.

Note: The possible panel lengths for double panel production are as follows.

CP-732E..................................................80 ~ 170 mm

CP-742ME / CP-742E.............................80 ~ 220 mm

Adjusting the Y-axis direction

Release the lock by pulling the lock lever and adjust the position of the sensor. Set the

sensor so that there will be no interference with already placed parts on the reverse side

of the panel.

C7SM2012E

Lock lever

Y direction

Already

placed parts

Sensor

C7SM2011E

Panel 2 stopper

Adjustment bolt

Scale

Slide lever

Gap check sensor

Panel 2 arrival check sensor

Panel 1 arrival check sensor

Part 2 Chapter 6 Adjusting the Position of the Panel 2 Stopper

Edition 2.2 2-6-1 CP-7 series Mechanical Reference
