■ Locations for Lubrication Locations for lubrication are indicated in the illustrations using arrows and numbers. White arrows are used to indicate surfaces that require greasing or oil. Black arrows indicate grease fit…

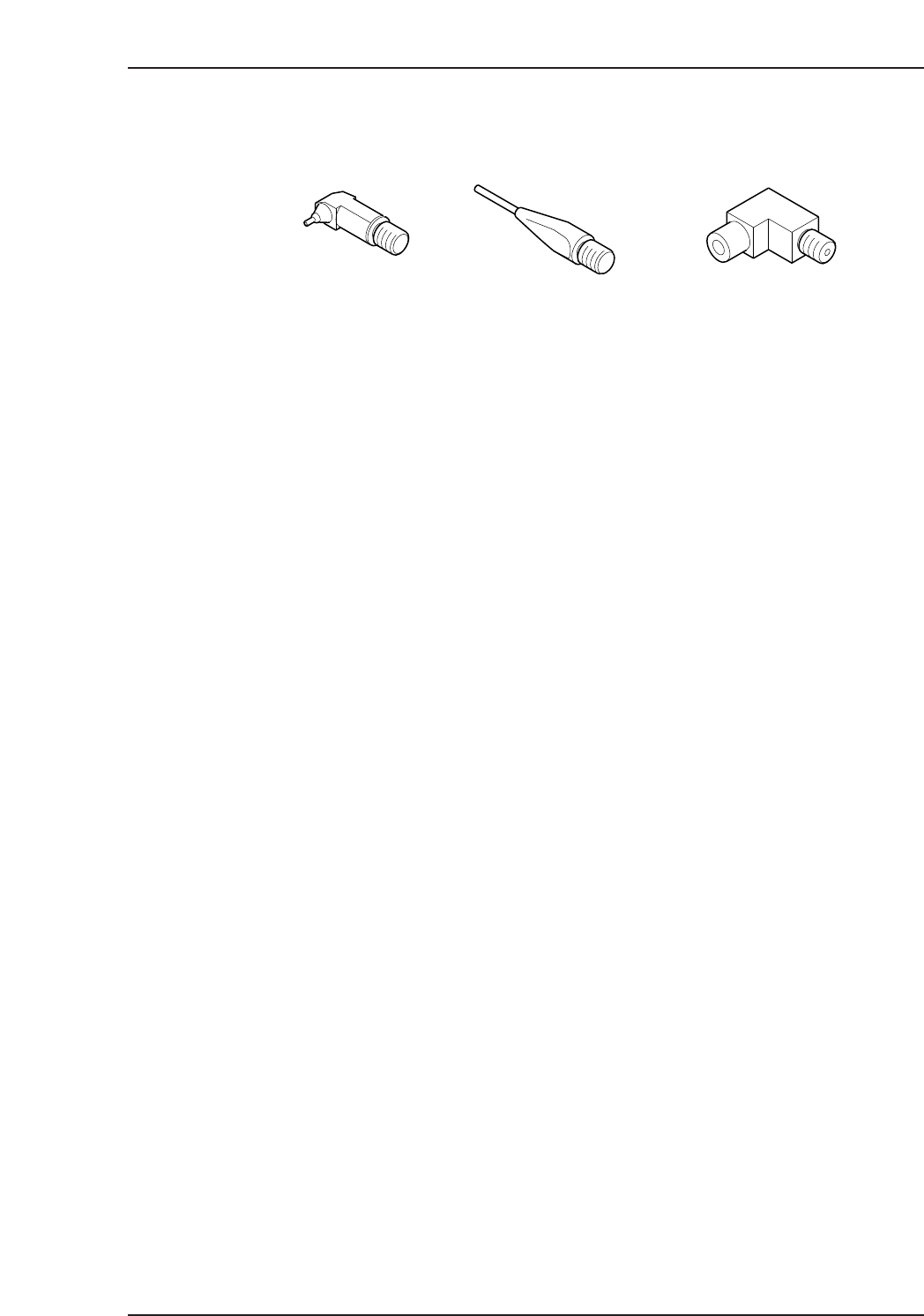

The CP-7 series requires the following grease nozzles, which are not included in the
standard grease gun kit.
Lubrication Instructions
Illustrations and tables are used to indicate important information about keeping the
machine properly lubricated.
■ Type and Schedule for Lubrication
Within these illustrations, symbols are used to indicate the location, type and schedule
for lubrication.
The lubrication schedules are based on eight hours of operation per day, five days per
week (40 hours) and 20 days per month (160 hours). However, if the machines are being
operated in two or three shifts per day, the lubrication schedules should be used as
follows.
Daily: Eight hours from when the machine is turned on, after every
eight hour shift, or after one day's operation.
Weekly: After 40 hours of operation, whether the machine is being used
in two or three shifts, or after one week's operation.
Monthly: After 160 hours of operation, whether the machine is being used
in two or three shifts, or after one month's operation.
Every 3 months: After 480 hours of operation, whether the machine is being used
in two or three shifts, or after three month's operation.
Every 6 months: After 960 hours of operation, whether the machine is being used
in two or three shifts, or after six month's operation.
Annually: After 1920 hours of operation, whether the machine is being
used in two or three shifts, or after a year of operation.
ST3 nozzle clutch
LM block nozzle
C7SM3115
DGPJ054✽
Parts reject unit
LM block nozzle
DGPJ055✽
ADGPJ818✽
NZ-axis LM block nozzle
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-3 CP-7 series Mechanical Reference
■ Locations for Lubrication
Locations for lubrication are indicated in the illustrations using arrows and numbers.
White arrows are used to indicate surfaces that require greasing or oil. Black arrows
indicate grease fittings, and signify that grease should be inserted using a grease pump.
Note: Even LM blocks that do not have a grease fitting can be lubricated by applying grease
between the block and the LM rail (bearing mechanism). The grease that adheres to the
ball bearings and rollers will be taken into the LM block and thereby serve to lubricate the
LM block.
■ Lubrication Checklist
A lubrication checklist is provided at the end of this chapter. This checklist should be
used as follows.
1. Check the lubrication points corresponding to the reference numbers shown in the
illustrations.
2. Mark each check box after lubricating each point.
LM rail
LM block
(1)
(2)
C7SM3004
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-4 CP-7 series Mechanical Reference
2.1 Lubricating the XY-table
Caution: If the grease on the Y-axis screw cover dries, the cover must be lubricated, even if
the cover is not due for periodic lubrication. Apply a thin layer of grease using a
brush.
Compressing the screw cover by hand may result in injury. Furthermore, incorrect
removal or installation of the screw cover may result in damage to the machine.
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Caution: Always lubricate the X-axis/Y-axis ball screws using a grease pump to apply grease to
the grease fittings. Applying grease directly to the ball screws or closing the cover by
hand may result in injury. Furthermore, incorrect removal or installation of the screw
cover may result in damage to the machine.
(1)
(1)
(4)
(4)
(2)
(5)
(7)
C7SM3011b
(6)
(3)
Daphne Exponex No. 2
Multemp LRL3
Daphne Super Multi Oil 32
Daphne Exponex No. 2
Multemp LRL3
Daphne Super Multi Oil 32
Multemp SRL
T001b
Lubrication points
ScheduleTypes of lubricant
1
2
3
4
5
6
7
Every 3 months
Monthly
Every 3 months
Every 3 months
Monthly
Every 3 months
Monthly
X-axis LM block
X-axis ball screw
X-axis screw cover
Y-axis screw cover
Y-axis LM block
Y-axis ball screw
Z-axis ball screw
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-5 CP-7 series Mechanical Reference
