2.1 Lubricating the XY -table Caution: If the grease on the Y-axis screw cover dries, the cover must be lubricated, even if the cover is not due for periodic lubrication. Apply a thin layer of grease using a brush. Compr…

■ Locations for Lubrication

Locations for lubrication are indicated in the illustrations using arrows and numbers.

White arrows are used to indicate surfaces that require greasing or oil. Black arrows

indicate grease fittings, and signify that grease should be inserted using a grease pump.

Note: Even LM blocks that do not have a grease fitting can be lubricated by applying grease

between the block and the LM rail (bearing mechanism). The grease that adheres to the

ball bearings and rollers will be taken into the LM block and thereby serve to lubricate the

LM block.

■ Lubrication Checklist

A lubrication checklist is provided at the end of this chapter. This checklist should be

used as follows.

1. Check the lubrication points corresponding to the reference numbers shown in the

illustrations.

2. Mark each check box after lubricating each point.

LM rail

LM block

(1)

(2)

C7SM3004

Part 3 Chapter 2 Lubrication

Edition 2.9 3-2-4 CP-7 series Mechanical Reference

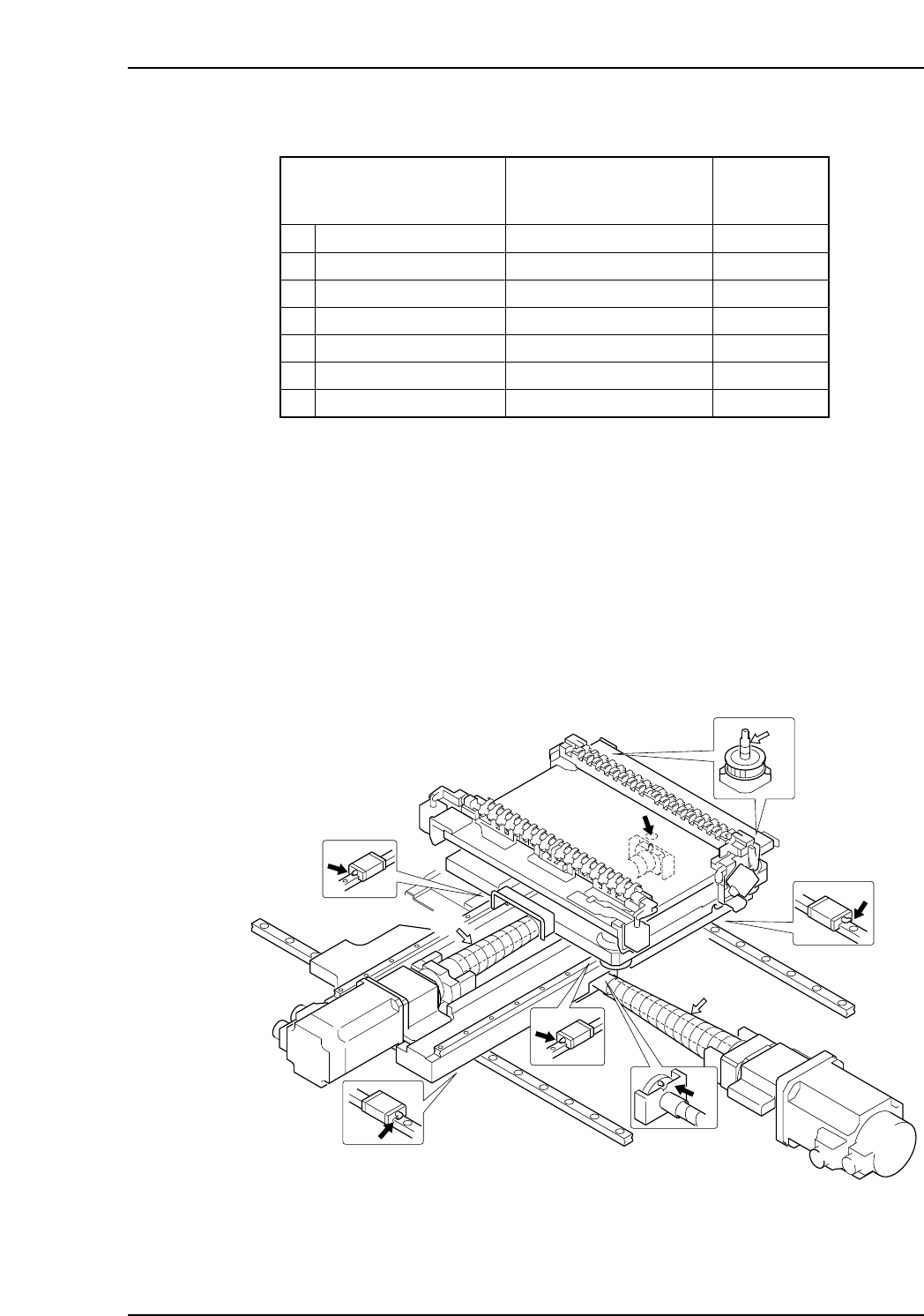

2.1 Lubricating the XY-table

Caution: If the grease on the Y-axis screw cover dries, the cover must be lubricated, even if

the cover is not due for periodic lubrication. Apply a thin layer of grease using a

brush.

Compressing the screw cover by hand may result in injury. Furthermore, incorrect

removal or installation of the screw cover may result in damage to the machine.

Arrow marks in the illustration indicate lubrication points.

Black arrows indicate points where a grease gun is required.

Caution: Always lubricate the X-axis/Y-axis ball screws using a grease pump to apply grease to

the grease fittings. Applying grease directly to the ball screws or closing the cover by

hand may result in injury. Furthermore, incorrect removal or installation of the screw

cover may result in damage to the machine.

(1)

(4)

(2)

(5)

(7)

C7SM3011b

(6)

(3)

Daphne Exponex No. 2

Multemp LRL3

Daphne Super Multi Oil 32

Daphne Exponex No. 2

Multemp LRL3

Daphne Super Multi Oil 32

Multemp SRL

T001b

Lubrication points

ScheduleTypes of lubricant

Every 3 months

Monthly

Every 3 months

Monthly

Every 3 months

Monthly

X-axis LM block

X-axis ball screw

X-axis screw cover

Y-axis screw cover

Y-axis LM block

Y-axis ball screw

Z-axis ball screw

Part 3 Chapter 2 Lubrication

Edition 2.9 3-2-5 CP-7 series Mechanical Reference

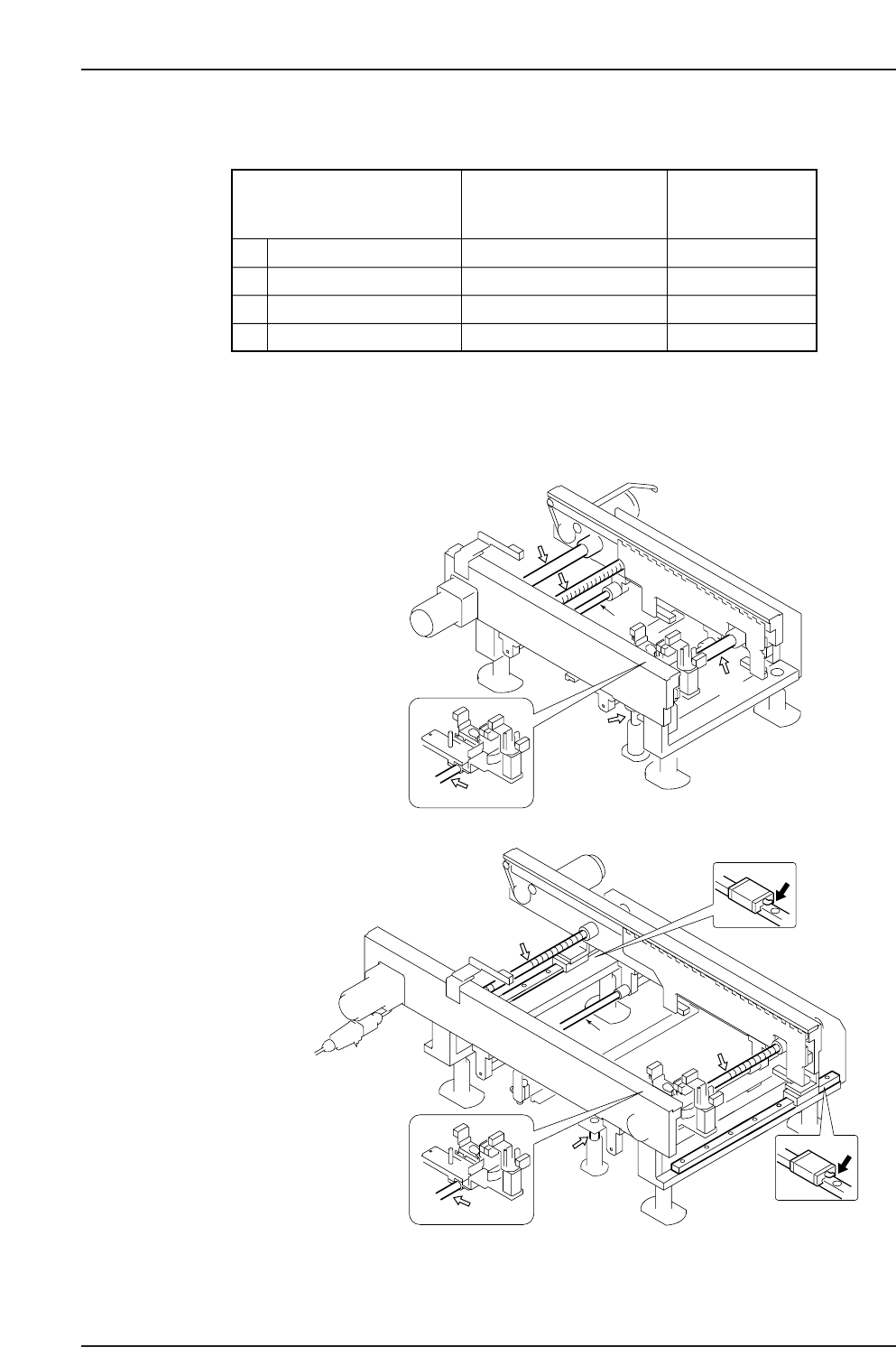

2.2 Lubricating the Conveyors

Arrow marks in the illustration indicate lubrication points.

Black arrows indicate points where a grease gun is required.

Caution: Never lubricate shaft A.

Note: The out-conveyor should also be lubricated in the same manner as the in-conveyor shown

in the figure above.

(8)

(9)

(11)

C7SM3012b

(10)

(9)

<CP-732E>

<CP-742ME, CP-742E>

(11)

(A) refers to the sensor bracket

shaft (lock side)

(A) refers to the sensor

bracket shaft (lock side)

Sensor bracket shaft

(guide side)

Sensor bracket shaft (guide side)

T002b

Lubrication points

Schedule

Types of lubricant

Every 6 months

Ball screw

Shaft

Lifter guide bar

LM block

Daphne Exponex No. 2

Part 3 Chapter 2 Lubrication

Edition 2.9 3-2-6 CP-7 series Mechanical Reference
