2.2 Lubricating the Conveyors Arrow marks in the illustration indicate lubrication points. Black arrows indicate points where a grease gun is required. Caution: Never lubricate shaft A. Note: The out-conveyor should also…
2.1 Lubricating the XY-table
Caution: If the grease on the Y-axis screw cover dries, the cover must be lubricated, even if
the cover is not due for periodic lubrication. Apply a thin layer of grease using a
brush.
Compressing the screw cover by hand may result in injury. Furthermore, incorrect
removal or installation of the screw cover may result in damage to the machine.
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Caution: Always lubricate the X-axis/Y-axis ball screws using a grease pump to apply grease to
the grease fittings. Applying grease directly to the ball screws or closing the cover by
hand may result in injury. Furthermore, incorrect removal or installation of the screw
cover may result in damage to the machine.
(1)
(1)
(4)
(4)
(2)
(5)
(7)
C7SM3011b
(6)
(3)
Daphne Exponex No. 2
Multemp LRL3
Daphne Super Multi Oil 32
Daphne Exponex No. 2
Multemp LRL3
Daphne Super Multi Oil 32
Multemp SRL
T001b
Lubrication points
ScheduleTypes of lubricant
1
2
3
4
5
6
7
Every 3 months
Monthly
Every 3 months
Every 3 months
Monthly
Every 3 months
Monthly
X-axis LM block
X-axis ball screw
X-axis screw cover
Y-axis screw cover
Y-axis LM block
Y-axis ball screw
Z-axis ball screw
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-5 CP-7 series Mechanical Reference
2.2 Lubricating the Conveyors
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Caution: Never lubricate shaft A.
Note: The out-conveyor should also be lubricated in the same manner as the in-conveyor shown
in the figure above.
(8)
(8)
(8)
A
A
(9)
(11)
C7SM3012b
(10)
(10)
(9)
(9)
(9)
<CP-732E>
<CP-742ME, CP-742E>
(11)
(A) refers to the sensor bracket
shaft (lock side)
(A) refers to the sensor
bracket shaft (lock side)
Sensor bracket shaft
(guide side)
Sensor bracket shaft (guide side)
T002b
Lubrication points
Schedule
Types of lubricant
8
9
10
11
Every 6 months
Every 6 months
Every 6 months
Every 6 months
Ball screw
Shaft
Lifter guide bar
LM block
Daphne Exponex No. 2
Daphne Exponex No. 2
Daphne Exponex No. 2
Daphne Exponex No. 2
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-6 CP-7 series Mechanical Reference

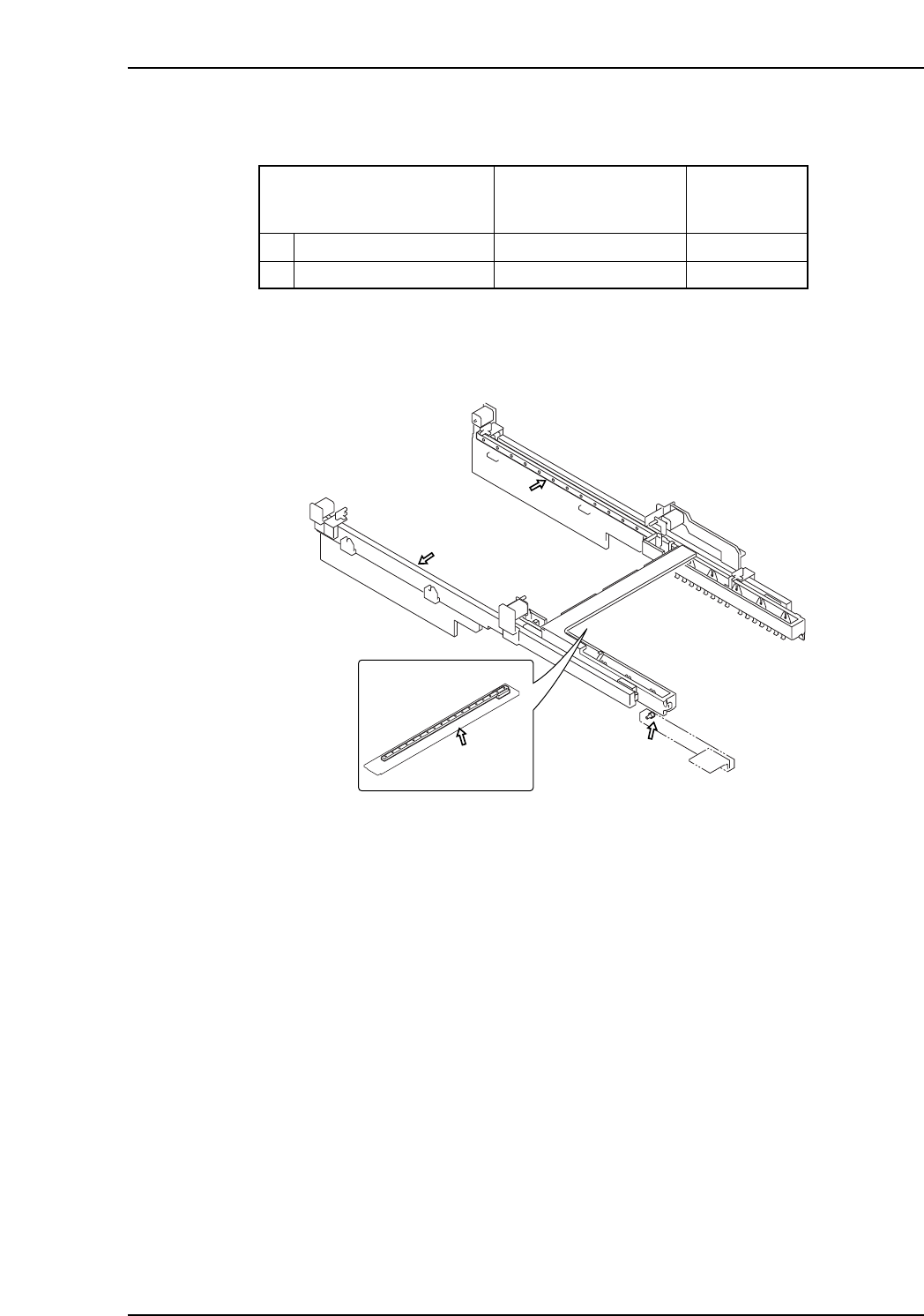

2.3 Lubricating the Carriers
Arrow marks in the illustration indicate lubrication points.
Note: The out-carrier should also be lubricated in the same manner as the in-carrier shown in the
figure above.
(12)
(12)
(13)
C7SM3013b
(12)
T003b
Lubrication points
Schedule
Types of lubricant
12
13
Every 3 months
Every 3 months
LM rail
Cam follower
Daphne Exponex No. 2
Daphne Exponex No. 2
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-7 CP-7 series Mechanical Reference
