2.3 Lubricating the Carriers Arrow marks in the illustration indicate lubrication points. Note: The out-carrier should also be lubricated in the same manner as the in-carrier shown in the figure above. (12) (12) (13) C7S…
2.2 Lubricating the Conveyors
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Caution: Never lubricate shaft A.
Note: The out-conveyor should also be lubricated in the same manner as the in-conveyor shown
in the figure above.
(8)
(8)
(8)
A
A
(9)
(11)
C7SM3012b
(10)
(10)
(9)
(9)
(9)
<CP-732E>
<CP-742ME, CP-742E>
(11)
(A) refers to the sensor bracket
shaft (lock side)
(A) refers to the sensor
bracket shaft (lock side)
Sensor bracket shaft
(guide side)
Sensor bracket shaft (guide side)
T002b
Lubrication points
Schedule
Types of lubricant
8
9
10
11
Every 6 months
Every 6 months
Every 6 months
Every 6 months
Ball screw
Shaft
Lifter guide bar
LM block
Daphne Exponex No. 2
Daphne Exponex No. 2
Daphne Exponex No. 2
Daphne Exponex No. 2
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-6 CP-7 series Mechanical Reference
2.3 Lubricating the Carriers
Arrow marks in the illustration indicate lubrication points.
Note: The out-carrier should also be lubricated in the same manner as the in-carrier shown in the
figure above.
(12)
(12)
(13)
C7SM3013b
(12)
T003b
Lubrication points
Schedule
Types of lubricant
12
13
Every 3 months
Every 3 months
LM rail
Cam follower
Daphne Exponex No. 2
Daphne Exponex No. 2
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-7 CP-7 series Mechanical Reference

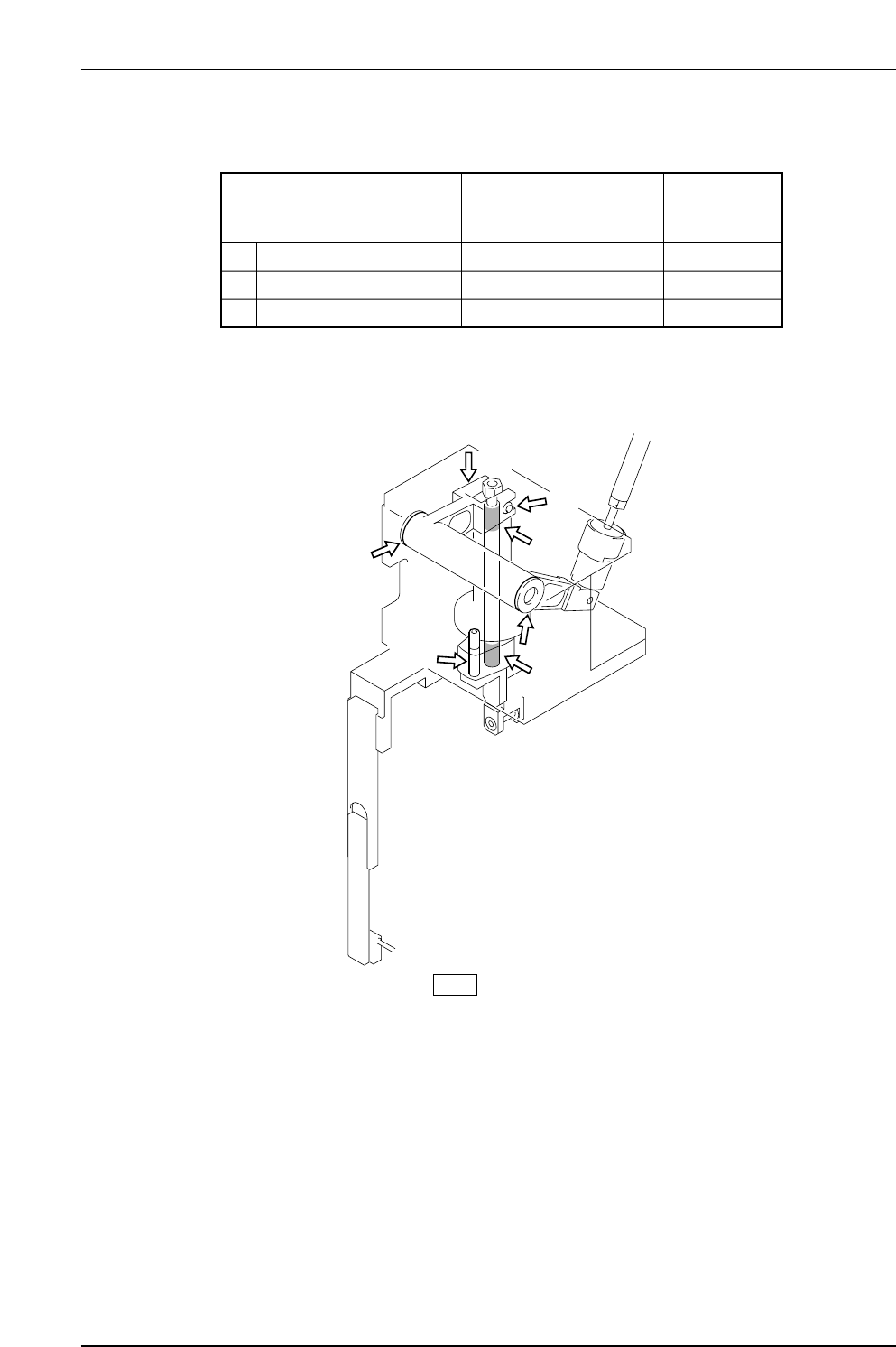

2.4 Lubricating the Tape Advance Link
Arrow marks in the illustration indicate lubrication points.
C7SM3014b
(14)
(14)
(15)
(15)
(16)
(16)
(15)
1 ST
AFC grease
Daphne Exponex No. 2
AFC grease
T004b
Lubrication points
Schedule
Types of lubricant
14
15
16
Monthly
Monthly
Monthly
Tape feed lever
Shaft
Joint
Part 3 Chapter 2 Lubrication
Edition 2.9 3-2-8 CP-7 series Mechanical Reference
