2.4 Lubricating the T ape Advance Link Arrow marks in the illustration indicate lubrication points. C7SM3014b (14) (14) (15) (15) (16) (16) (15) 1 ST AFC grease Daphne Exponex No. 2 AFC grease T004b Lubrication points Sc…

2.3 Lubricating the Carriers

Arrow marks in the illustration indicate lubrication points.

Note: The out-carrier should also be lubricated in the same manner as the in-carrier shown in the

figure above.

(12)

(13)

C7SM3013b

(12)

T003b

Lubrication points

Schedule

Types of lubricant

Every 3 months

LM rail

Cam follower

Daphne Exponex No. 2

Part 3 Chapter 2 Lubrication

Edition 2.9 3-2-7 CP-7 series Mechanical Reference

2.4 Lubricating the Tape Advance Link

Arrow marks in the illustration indicate lubrication points.

C7SM3014b

(14)

(15)

(16)

(15)

1 ST

AFC grease

Daphne Exponex No. 2

AFC grease

T004b

Lubrication points

Schedule

Types of lubricant

Monthly

Tape feed lever

Shaft

Joint

Part 3 Chapter 2 Lubrication

Edition 2.9 3-2-8 CP-7 series Mechanical Reference

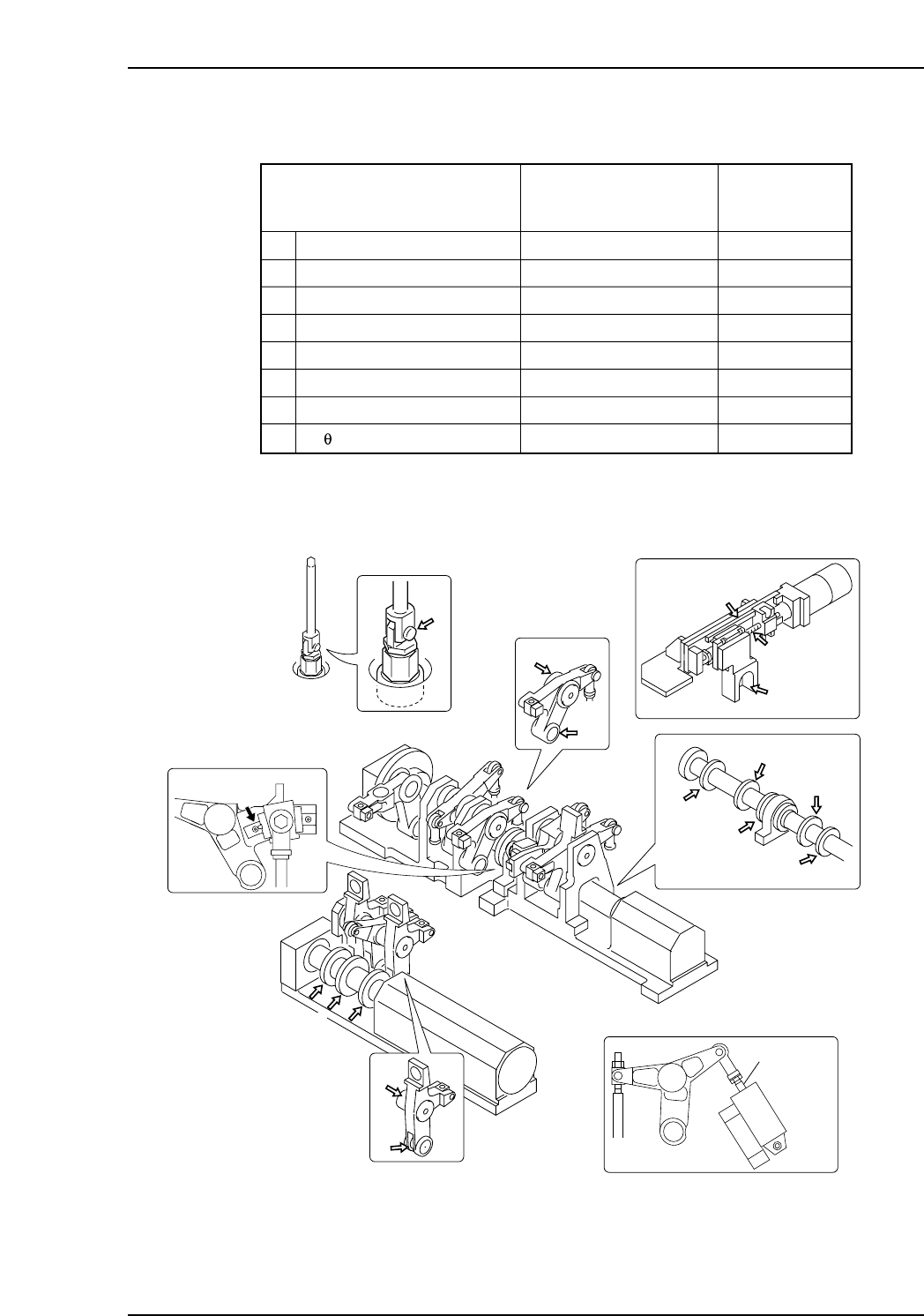

2.5 Lubricating the Cam Box

Arrow marks in the illustration indicate lubrication points.

Black arrows indicate points where a grease gun is required.

Caution: Do not lubricate the shaft on the air

cylinder.

Note: Lubrication of (23) requires a special grease nozzle.

Refer to the next page for details.

C7SM3015b

ST2, 8, 9, 10 rod

(17)

(21)

(20)

(22)

(17)

(24)

(19)

(18)

(19)

(23)

Shaft

Daphne Exponex No. 2

AFC grease

T005b

Lubrication points

Schedule

Types of lubricant

Monthly

Cam

Monthly

Cam lever pivot (7 points)

Monthly

Cam lever bearing

Monthly

NZ-axis ball screw

Every 3 months

NZ-axis LM rail

Every 3 months

Monthly

NZ-axis holder

NZ-axis LM block

Every 3 months

-axis connecting pin

Daphne Exponex No. 2

AFC grease

Part 3 Chapter 2 Lubrication

Edition 2.9 3-2-9 CP-7 series Mechanical Reference
