KKS_YG12_PL - 第34页
1 10 Control Box Controller KKS-2002 16 14 15 17 18 5 19 2 2 1 25 23 1 25 23 21 26 28 13 20 24 22 26 3 4 27 7 6 10,1 1,29 12 8,9 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KJJ-M41 1B-00 BRACKET…
1
9
Blow Station
Blow Station
KKS-1011
18
6
9
19
5
3
11
4
9
6
18
19
14
8
10
13
20
722
23
22
15
16
23
2
21
14
24
24
1
12
17

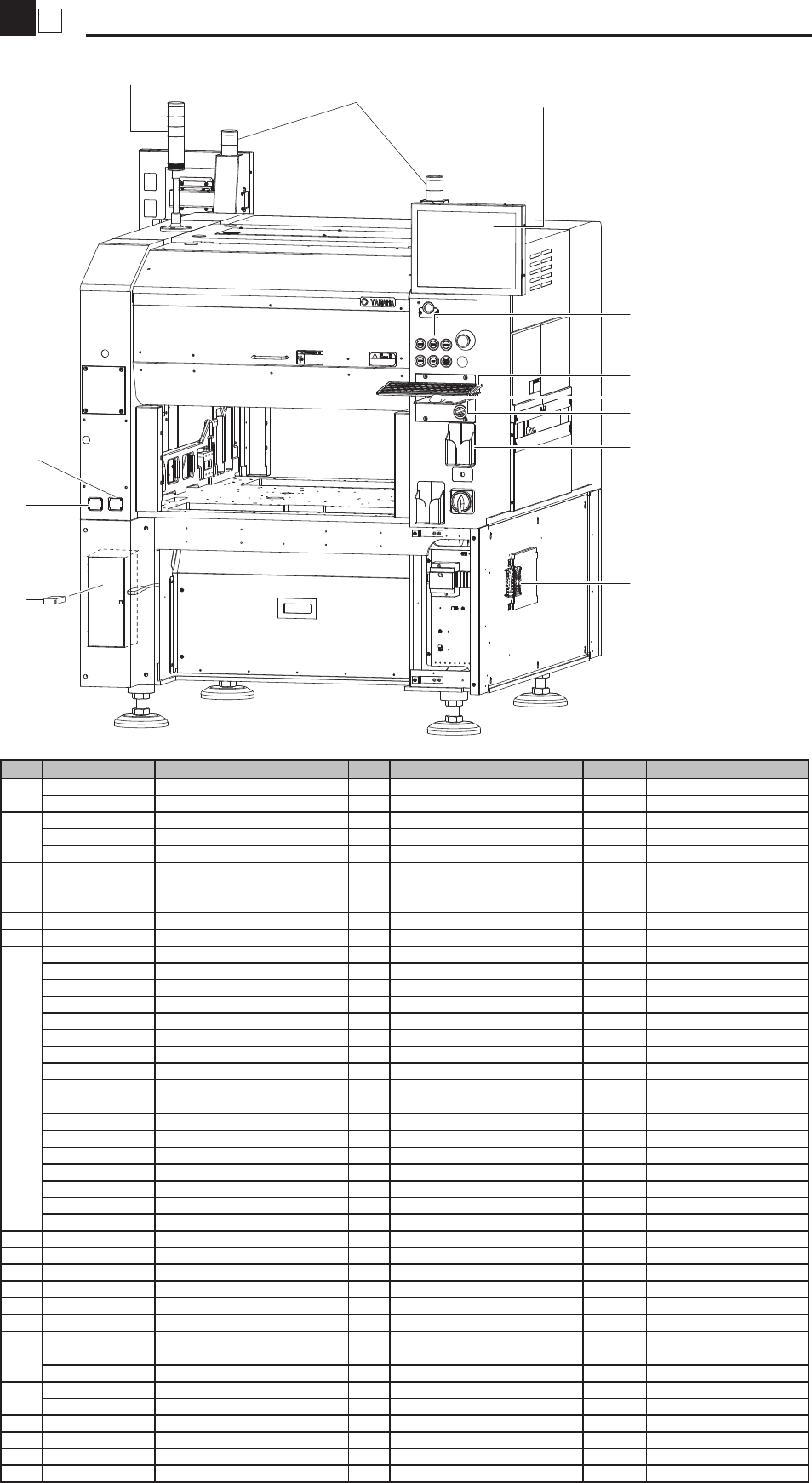

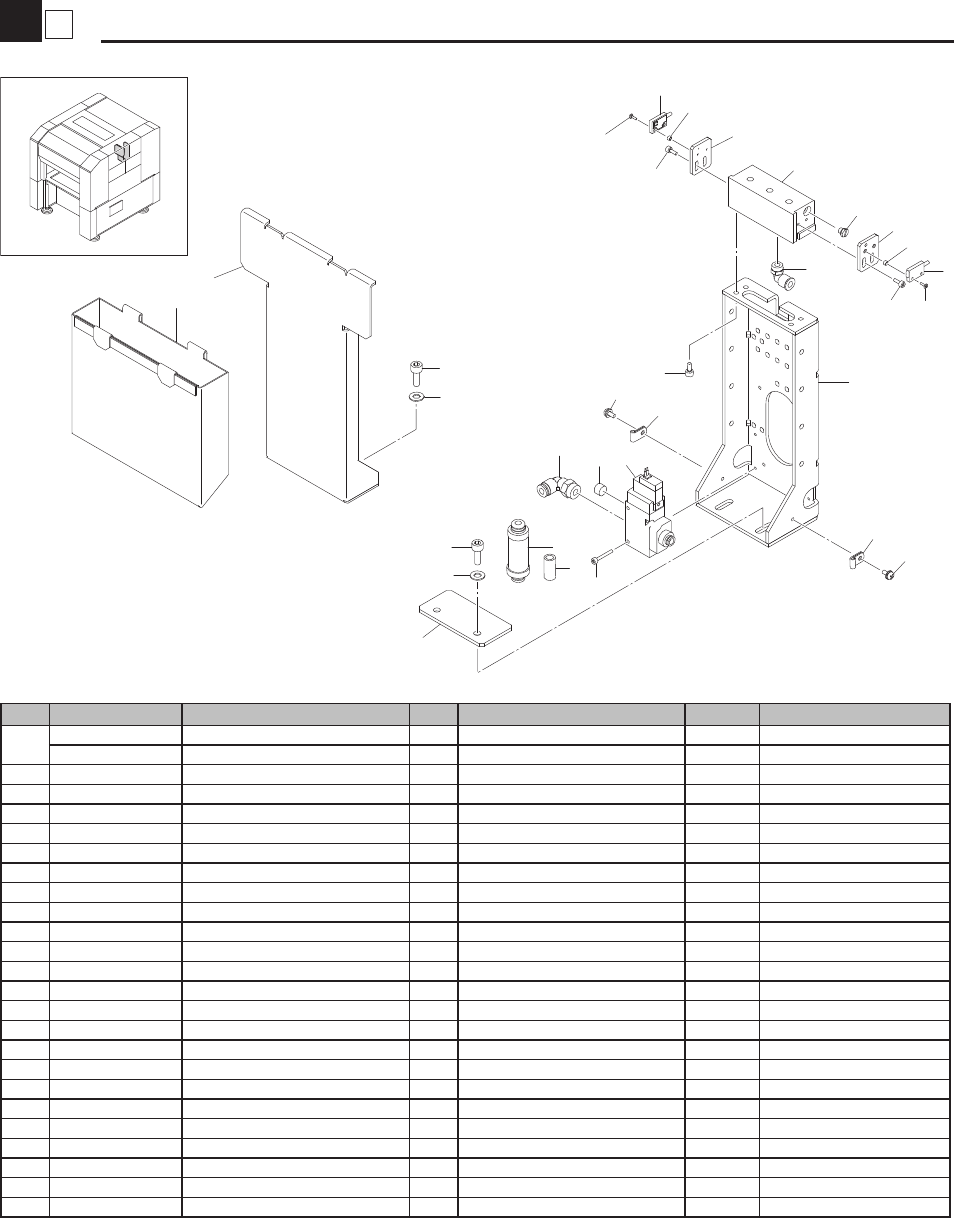

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KKS-M9901-01 BASE,B.STN. 1 OK MG30149-2010/3/25
KKS-M9901-00 BASE,B.STN. 1
2 KKD-M9902-00 PLATE,BASE 1
3 KKD-M9903-01 BLOCK,BLOW ST. 1
4 KGR-M9905-00 BRACKET R,SENSOR 1
5 KGR-M9906-00 BRACKET L,SENSOR 1
6 KHY-M652R-00 SENSOR,BLOW ST ASSY 1
7 KGR-M9934-01 INLINE FILTER 1
8 KHW-M9906-A0 VALVE 1
9 90990-41J066 COLLAR 4
10 K40-M8598-10 PLUG 1 1
11 $PF PLUG 1
12 $TL6-01M JOINT 1
13 $TL6-02 JOINT 1
14 $NK-2N NYLON CLIP 2
15 KJJ-M99D5-00 STAND,DUMP BOX 1
16 KGS-M99D0-00 DUMP BOX ASSY. 1
17 KGR-M9934-F0 FILTER, SPARE 1 SPARE
18 90169-02J206 SCREW BINDING HEAD 4
19 91312-03008 BOLT HEX.SOCKET HEAD 4
20 91312-03020 BOLT,HEX.SOCKET HEAD 2
21 91312-04008 BOLT HEX.SOCKET HEAD 4
22 91312-06016 BOLT HEX.SOCKET HEAD 4
23 92902-06200 WASHER PLAIN(N) 4
24 97602-04308 SCREW,PAN HEAD W/W 2
1
10
Control Box
Controller
KKS-2002
16
14
15
17
18
5
19
2
2
1
25
23
1
25
23
21
26
28
13
20
24
22
26
3
4
27
7
6
10,11,29
12
8,9
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date

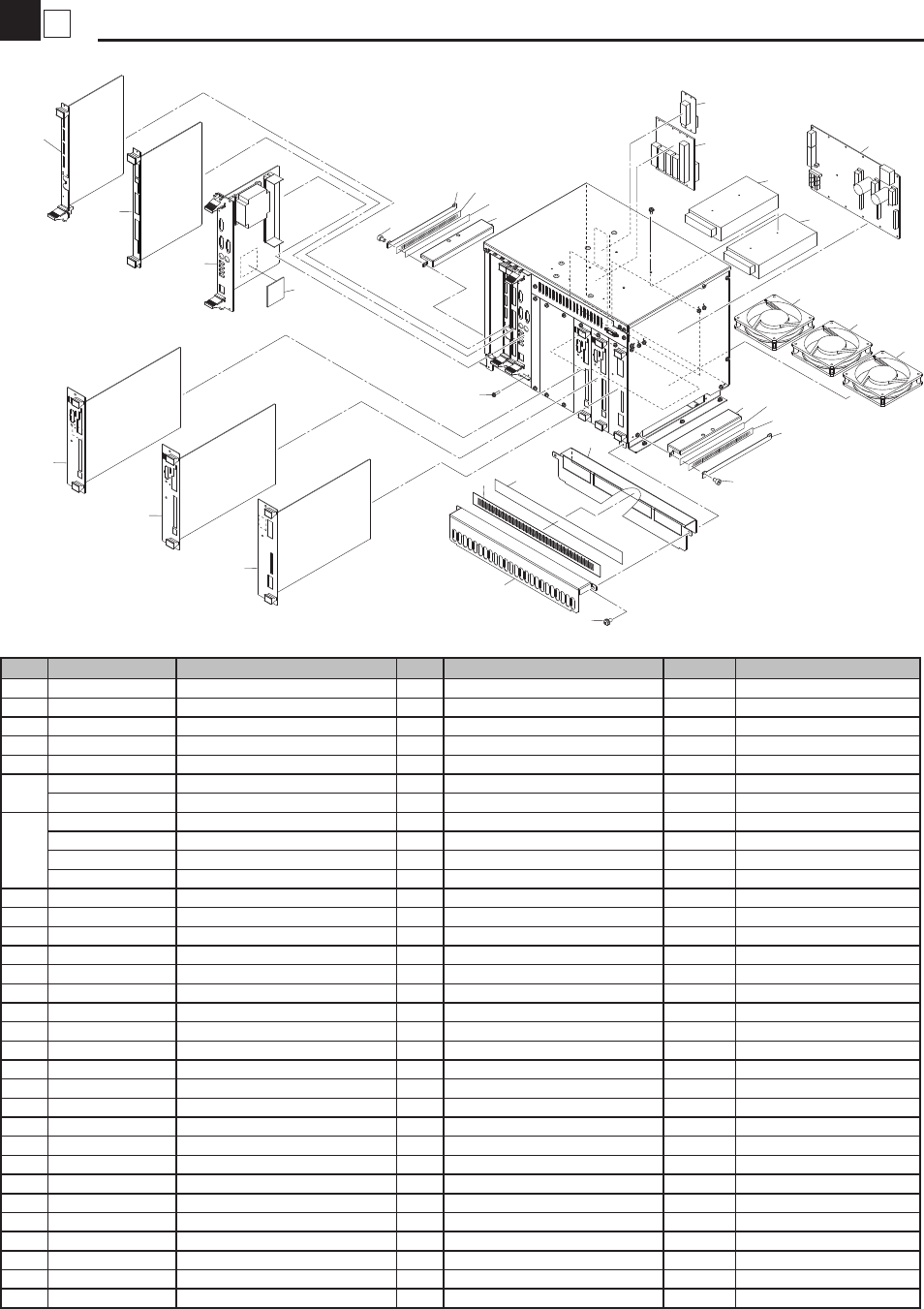

1 KJJ-M411B-00 BRACKET 2 2
2 KJJ-M411A-00 PLATE 2
3 KJJ-M4119-00 BRACKET 1 FILTER 1
4 KJJ-M4120-00 BRACKET 2 FILTER 1
5 KJJ-M4510-12 MOTHER BOARD ASSY 1
6
KHN-M5840-02 SERVO BOARD ASSY 1 OK MG90117-2010/10/13
KHN-M5840-00 SERVO BOARD ASSY 1
7
KHN-M5840-52 SERVO BOARD ASSY 1 OK MG90117-2010/10/13
KHN-M5840-50 SERVO BOARD ASSY 1
KHN-M5840-A2 SERVO BOARD ASSY 1 for ATS OK MG90117-2010/10/13
KHN-M5840-A0 SERVO BOARD ASSY 1 for ATS
8 KHL-M4209-01 SYSTEM UNIT ASSY 1 for STD
9 KHL-M4209-21 SYSTEM UNIT ASSY 1 IT Option
10 KHL-M441H-03 VISION BOARD ASSY 1 F/R Multi Camera + Copla
11 KHL-M441H-13 VISION BOARD ASSY 1 F/R Multi Camera
12 KHN-M4530-55 REMOTE IF BOARD ASSY 1
13 KJJ-M5880-00 DRIVER POWER ASSY 1
14 KJJ-M4454-01 RAS BOARD ASSY 1
15 KJJ-M4250-00 BACKPLANE BOARD ASSY 1
16 KHL-M4255-00 FLASH DISK 1
17 KGS-M5303-00 SW POWER DC5 1
18 KGS-M5303-10 SW POWER DC12 1
19 KJJ-M4186-00 FAN MOTOR ASSY 1
20 KJJ-M4186-10 FAN MOTOR ASSY 1
21 KJJ-M4186-20 FAN MOTOR ASSY 1
22 KJJ-M53A9-10 FILTER 1
23 KJJ-M53A9-20 FILTER 2
24 KJJ-M53E9-10 TAPE 1
25 KJJ-M53E9-20 TAPE 2
26 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
27 90166-12JA10 SCREW,PAN HEAD 4
28 97602-04308 SCREW,PAN HEAD W/W 63
29 KHL-M441H-33 VISION BOARD ASSY 1 F/R Multi Camera MF80042-2009/9/3
1
11
Exterior, etc 1
Exterior, etc
KKS-1011
1, 2
11, 12
8
5
6
7
9, 10
3, 4
13, 14, 15, 16, 17, 18
19
20
21
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KGT-M5106-B0 SMT OPE.PANEL ASSY 1 DC12V (Compati.:KHW-M5106-10X) NG MJX0111-2012/11/22
KGT-M5106-02 15NORMAL LCD" 2 AC100V
2
KGT-M5119-03 SMT OPE.T.PANEL ASSY 1 Touch Panel OK MK20042-2013/2/25
KKE-M5119-00 15 TOUCH LCD ASSY" 2 with Damper NG MF90148-2009/9/30
KGT-M5119-02 15 TOUCH LCD ASSY" 2
3 KW3-M5150-50 KEYBOARD J 1
4 KW3-M5150-60 KEYBOARD E 1
5 KW3-M5169-04 MOUSE 1
6 KKJ-M13B1-B0 BRKT. KEYBOARD ASSY. 1
7 KGA-M13B5-00 MOUSE POCKET ASSY 1
8
KHY-M4899-00 LIGHT 1 ASSY (L=414) 1 1850 R.Y.G
KHY-M4899-10 LIGHT 1 ASSY (L=470) 1 1980 R.Y.G
KHY-M4899-20 LIGHT 1 ASSY (L=570) 1 2000 R.Y.G
KHY-M4899-30 LIGHT 1 ASSY (L=664) 1 2100 R.Y.G
KHY-M4899-40 LIGHT 1 ASSY (L=770) 1 2200 R.Y.G
KHY-M4899-50 LIGHT 1 ASSY (L=864) 1 2300 R.Y.G
KHY-M4899-60 LIGHT 1 ASSY (L=414) 1 1850 W.B.G
KHY-M4899-70 LIGHT 1 ASSY (L=470) 1 1980 W.B.G
KHY-M4899-80 LIGHT 1 ASSY (L=570) 1 2000 W.B.G
KHY-M4899-90 LIGHT 1 ASSY (L=664) 1 2100 W.B.G
KHY-M4899-A0 LIGHT 1 ASSY (L=770) 1 2200 W.B.G
KHY-M4899-B0 LIGHT 1 ASSY (L=864) 1 2300 W.B.G
KV7-M4887-00 LED UNIT,R-R 1 SPARE
KV7-M4887-10 LED UNIT,Y-Y 1 SPARE
KV7-M4887-20 LED UNIT,G-G 1 SPARE
KV7-M4887-30 LED UNIT,BL-BL 1 SPARE
KV7-M4887-40 LED UNIT,W-W 1 SPARE
9 KHN-M6185-10 FAN MOTOR ASSY 1
10 KGA-M4187-00 FAN GUARD 119MM 8
11 KGS-M4896-01 LIGHT,ERR ASSY 1 for STD
12 KHG-M4896-01 LIGHT,ERR ASSY 1 for CE
13 KGA-M669V-04 HNS,SWITCH ACTIVE 1
14 KGA-M669V-24 HNS,SWITCH START 1
15 KGA-M669V-54 HNS,SWITCH RESET 1
16
KGA-M669V-32 HNS,SWITCH STOP 1 for STD
KHA-M669V-03 HNS,SWITCH STOP 1 for CE
17
KGA-M669V-42 HNS,SWITCH ERR.CLR. 1 for STD
KHA-M669V-12 HNS,SWICTH ERR.CLR. 1 for CE
18 KGA-M669V-14 HNS,SWITCH READY 1
19 KHY-M8596-00 PRESSURE GAUGE 1
20 KGY-M4268-00 USB MEMORY 1
21 KHW-M8596-00 PRESSURE GAUGE 1
